A5000-POWER UNIT, HONDA

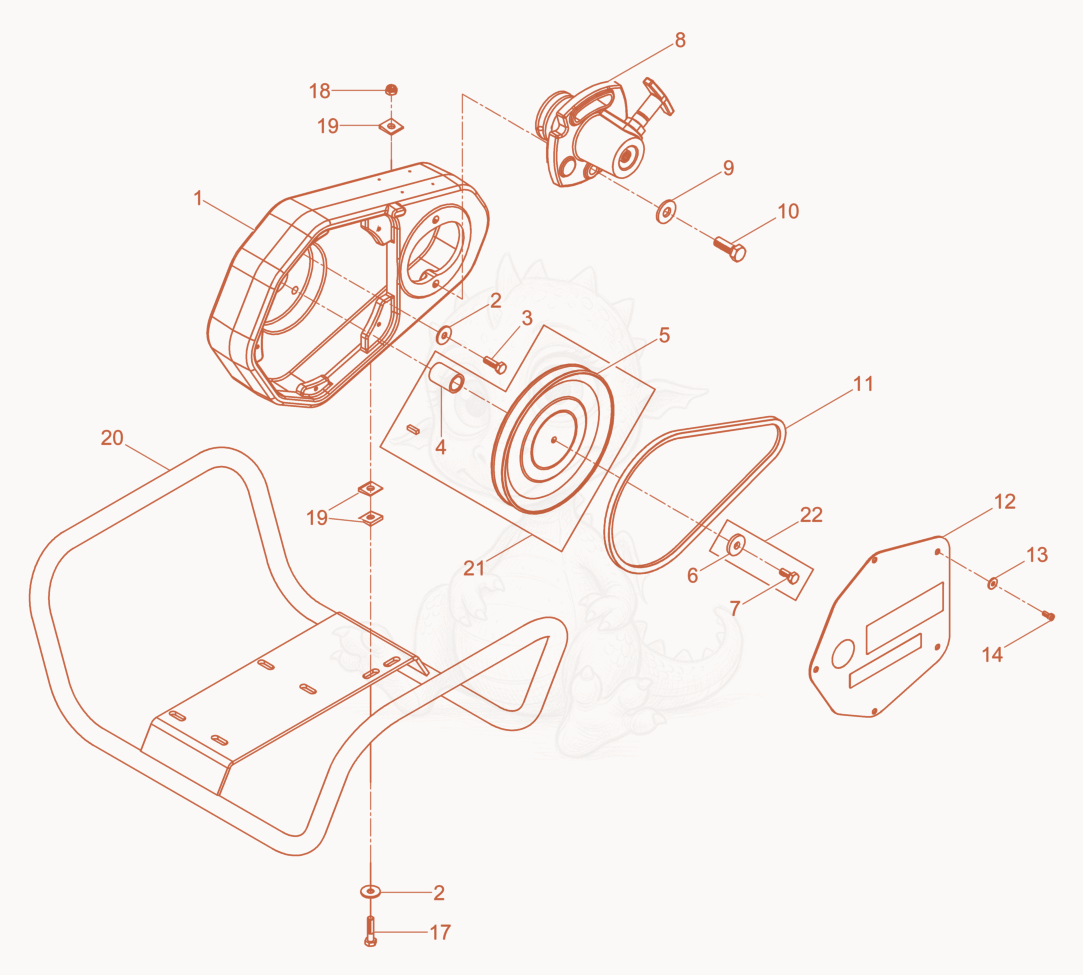

A5000 Drive System Diagram

Exploded parts diagram of the Drive System of a Wacker Neuson A5000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000053862
    $584.67
    Housing - 5000053862×1
  • 25000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×6
  • 35000025566
    $1.42
    SCREW 5/16-24 X 1 GR5,HX.LOCK - 5000025566×4
  • 45000083384
    $25.47
    SPACER - 5000083384×1
  • 55000083382
    $54.88
    PULLEY,V-BELT - 5000083382×1
  • 65001005118
    $1.03
    WASHER-STEEL,FLAT - 5001005118×1
  • 75000026169
    $0.25
    SCREW 5/16-24 X 3/4,HX.HD. - 5000026169×1
  • 85000202500Not stocked
    Hub cpl.×1
  • 95000026025
    $4.21
    WASHER-STEEL,FLAT - 5000026025×2
  • 105000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×2
  • 115000071961
    $25.38
    BELT-V 3V315LA - 5000071961×1
  • 125000218243Not stocked
    Cover×1
  • 135000010372
    $0.03
    WASHER B5.3 FLAT - 5000010372×5
  • 145000011714
    $0.13
    SCREW M5 X 12 CHEESE HD. - 5000011714×5
  • 175000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×2
  • 185000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 195000010787
    $2.19
    WASHER 9 TAPERED - 5000010787×6
  • 205000071940
    $590.37
    FRAME-POWER UNIT MOUNTING - 5000071940×1
  • 215000083385
    $196.37
    KIT-SHEAVE REPLACEMENT, S/P - 5000083385×1
  • 225000083480
    $24.56
    KIT-FASTENER - 5000083480×1
