A5000-POWER UNIT, HONDA

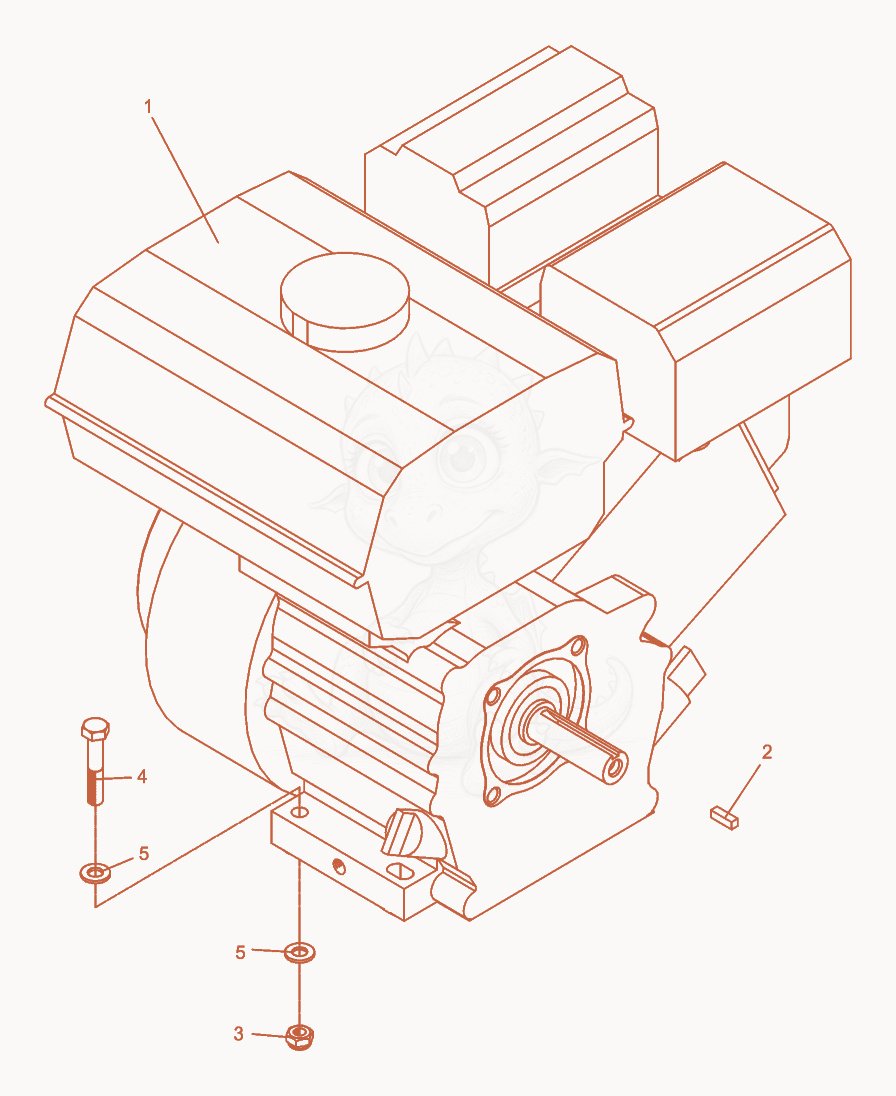

A5000 Engine complete Diagram

Exploded parts diagram of the Engine complete of a Wacker Neuson A5000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000102464Not stocked
    Gas engine×1
  • 25000071989
    $2.70
    KEY-SQUARE 3/16 X 5/8 - 5000071989×1
  • 35000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 45000011342
    $0.42
    SCREW M8 X 45 HX.HD. - 5000011342×4
  • 55000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×8
