A5000-POWER UNIT, HONDA

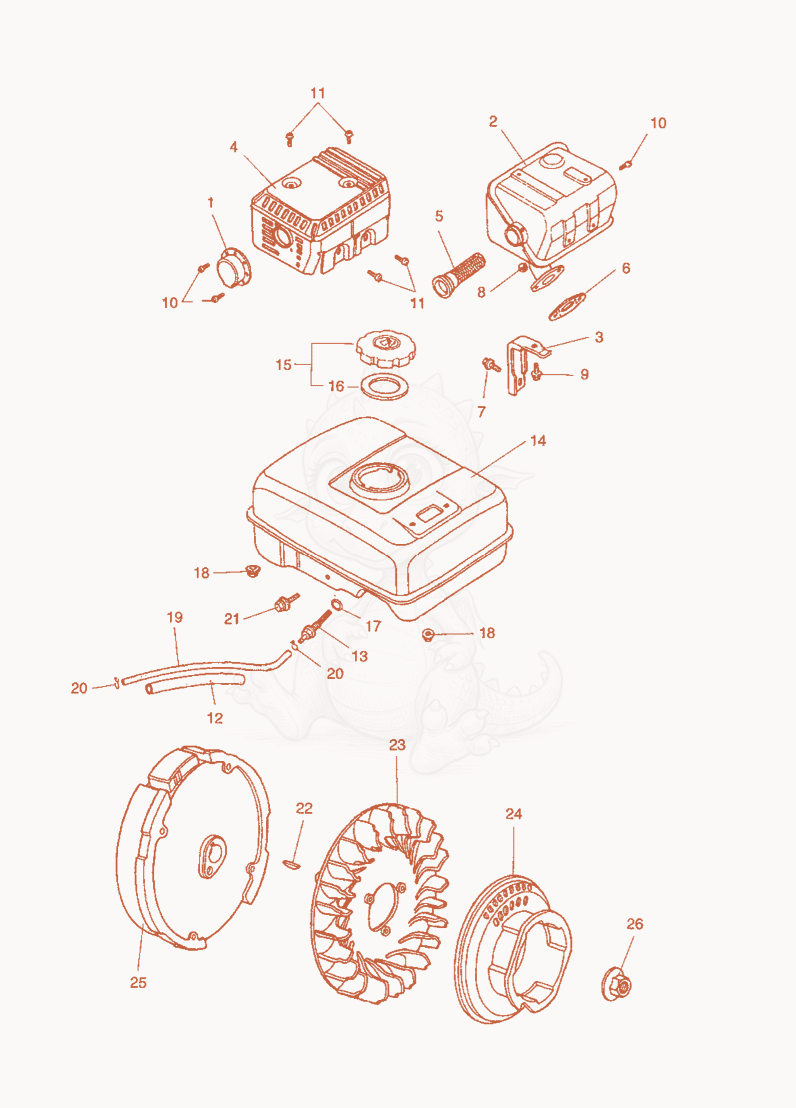

A5000 Muffler-Tank-Fly Wheel Diagram

Exploded parts diagram of the Muffler-Tank-Fly Wheel of a Wacker Neuson A5000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000107072
    $13.63
    BAFFLE-EXHAUST - 5000107072×1
  • 25000107065
    $255.20
    MUFFLER-EXHAUST - 5000107065×1
  • 35000076606
    $22.22
    BRACKET-MUFFLER STAY - 5000076606×1
  • 45000107066
    $51.63
    COVER-PROTECTION - 5000107066×1
  • 55000107067
    $26.09
    Spark arrester - 5000107067×1
  • 65000081768
    $5.24
    GASKET-MUFFLER MOUNT - 5000081768×1
  • 75000072773
    $4.35
    SCREW M6 X 13,HEX.FLANGE - 5000072773×1
  • 85000071076
    $1.97
    NUT M8,HEX - 5000071076×2
  • 95000072333
    $2.43
    SCREW M6 X 12,HX.FLANGE - 5000072333×1
  • 105000150916
    $1.30
    SCREW-TAPPING 4 X 6 - 5000150916×4
  • 115000071070
    $2.73
    SCREW M5 X 8,TAPPING - 5000071070×4
  • 125000081764
    $6.03
    hose cover - 5000081764×1
  • 135000071083
    $14.92
    FILTER-FUEL,INTANK - 5000071083×1
  • 145000082013
    $231.55
    TANK-FUEL - 5000082013×1
  • 155000081662
    $23.25
    CAP-FUEL TANK - 5000081662×1
  • 165000107068Not stocked
    Seal×1
  • 175000071082
    $4.75
    O-RING 14 X 1.3 - 5000071082×1
  • 185000071056
    $1.01
    NUT M6,HEX,FLANGE - 5000071056×2
  • 195000071084Not stocked
    Fuel pipe×1
  • 205000054136
    $2.72
    CLAMP B8,HOSE CLIP - 5000054136×2
  • 215000071081
    $2.72
    SCREW M6 X 25,HX.FLANGE - 5000071081×1
  • 225000068967
    $5.97
    WEDGE 25 X 18 - 5000068967×1
  • 235000071652
    $55.57
    FAN - 5000071652×1
  • 245000107069
    $38.05
    REEL-STARTER - 5000107069×1
  • 255000107070
    $300.93
    FLYWHEEL - 5000107070×1
  • 265000054005
    $9.08
    NUT M14 - 5000054005×1
