AR53/3/400

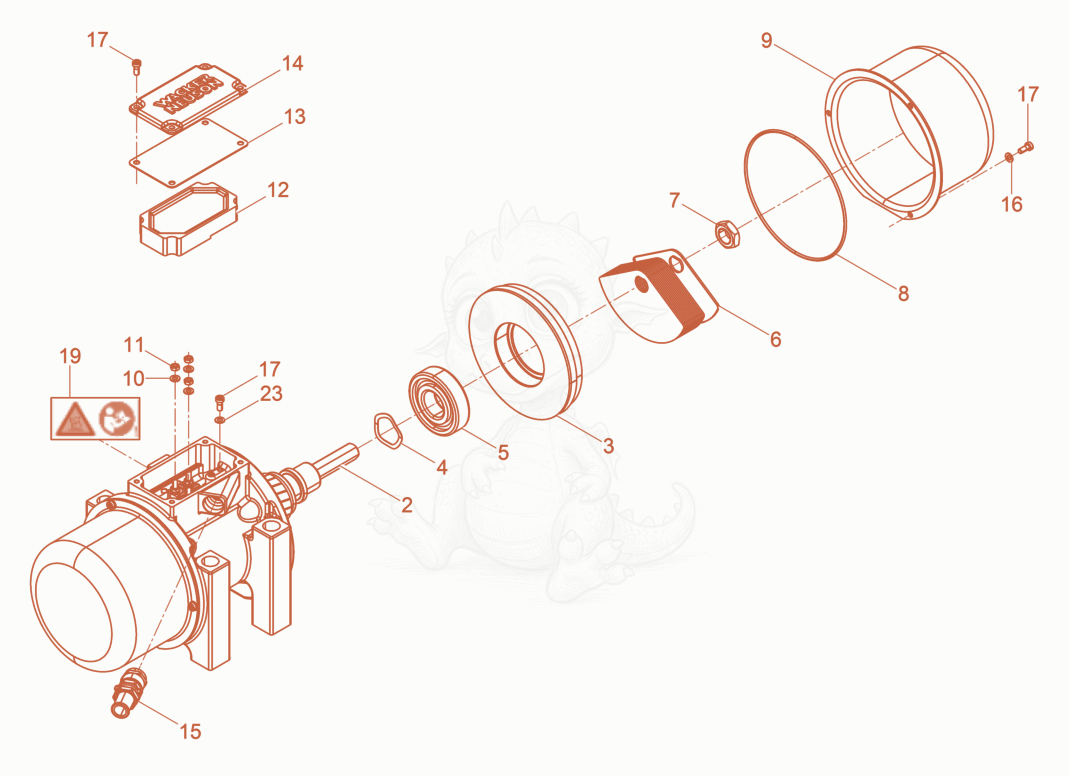

AR53/3/400 External Vibrator cpl. Diagram
- 5000095182$3.98WASHER B18 - 5000095182×4
- 25100003917Not stockedMotor armature×1
- Bearing bracket - 5100003947×2
- Shim 30,8x36,8x0,4 - 5100005267×1
- Grooved ball bearing 6306 - 5100004440×2
- Eccentric weight - 5100002827×48
- Hexagon nut M 18x1,5 - 5100005270×2
- O-Ring - 5000069617×2
- Cover - 5000219020×2
- WASHER B5.3 MS,FLAT - 5000012643×3
- NUT-LOCK,M5 - 5000012997×3
- MOUNT-RUBBER - 5000069291×1
- Seal - 5000068755×1
- Cover - 5000067945×1
- SCREW-CONNECTION - 5000038054×1
- WASHER B5.3 FLAT - 5000010625×6
- SCREW M5 X 12 SOC.HD. - 5000095509×11
- Label - 5000219173×1
- WASHER-LOCK,TOOTHED - 5000201230×1
