AR64/3/230

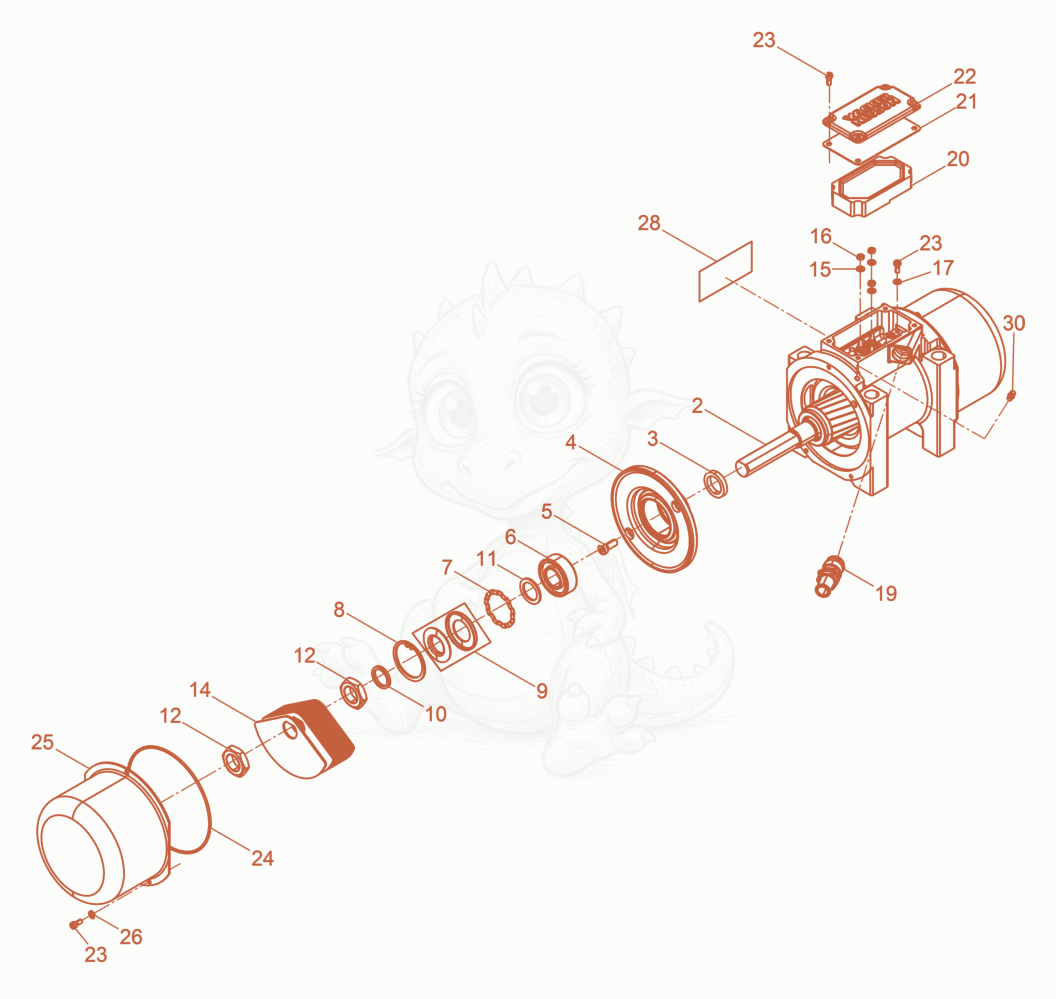

AR64/3/230 External Vibrator cpl. Diagram
- ROTOR - 5000067921×1
- RING-INTERMEDIARY - 5000067915×2
- Bearing bracket - 5100049990×2
- SCREW-CHEESE HD. - 5000218693×4
- BEARING-CYL.ROLLER,NJ2205 - 5000065842×2
- DISC - 5000069297×2
- RET.RING-INT 52MMX2MM, - 5002001047×2
- SHIM-SEALING MATERIAL - 5000069296×2
- Ring - 5000095890×2
- RING-BACKUP 25 X 35 X 2 D988 - 5002004794×2
- NUT M24 HEX.JAM - 5000010820×4
- WEIGHT-ECCENTRIC DRIVE,2.0 MM - 5000034236×54
- WASHER B5.3 MS,FLAT - 5000012643×3
- NUT-LOCK,M5 - 5000012997×3
- WASHER-LOCK,TOOTHED - 5000201230×1
- SCREW-CONNECTION - 5000038054×1
- MOUNT-RUBBER - 5000069291×1
- Seal - 5000068755×1
- Cover - 5000067945×1
- SCREW M5 X 12 SOC.HD. - 5000095509×11
- O-Ring - 5000069617×2
- Hood - 5000219022×2
- WASHER B5.3 FLAT - 5000010625×6
- Label - 5000219173×1
- FITTING-GREASE AM6 - 5002004705×2
