ASP400 115/60-PUMP,ELE.SUBMER.

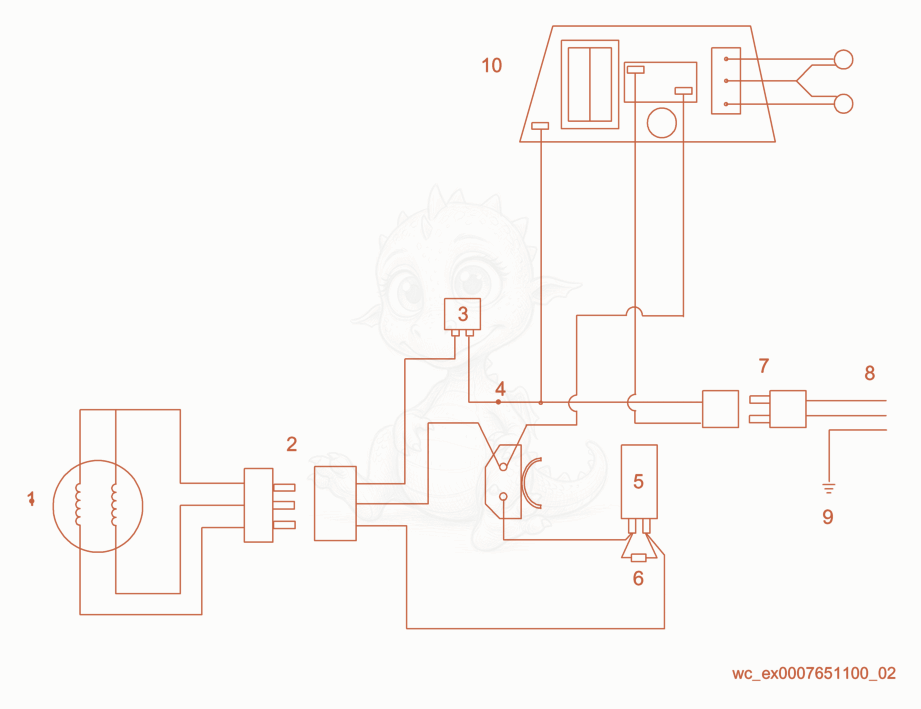

ASP400 Wiring Schematic Diagram

Exploded parts diagram of the Wiring Schematic of a Wacker Neuson ASP400, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000079495Not stocked
    Stator×1
  • 25000079488Not stocked
    Connector×1
  • 35000079460Not stocked
    Guard×1
  • 45000079456Not stocked
    Switch×1
  • 55000079450Not stocked
    Capacitor×1
  • 65000079444Not stocked
    Resistor×1
  • 75000079487Not stocked
    Pin block×2
  • 75000079488Not stocked
    Connector×1
  • 85000113100Not stocked
    Cable cpl.×1
  • 105000112066Not stocked
    Control×1
