BPU 3750Ats

BPU3750ATS Vibratory Plate cpl. Diagram

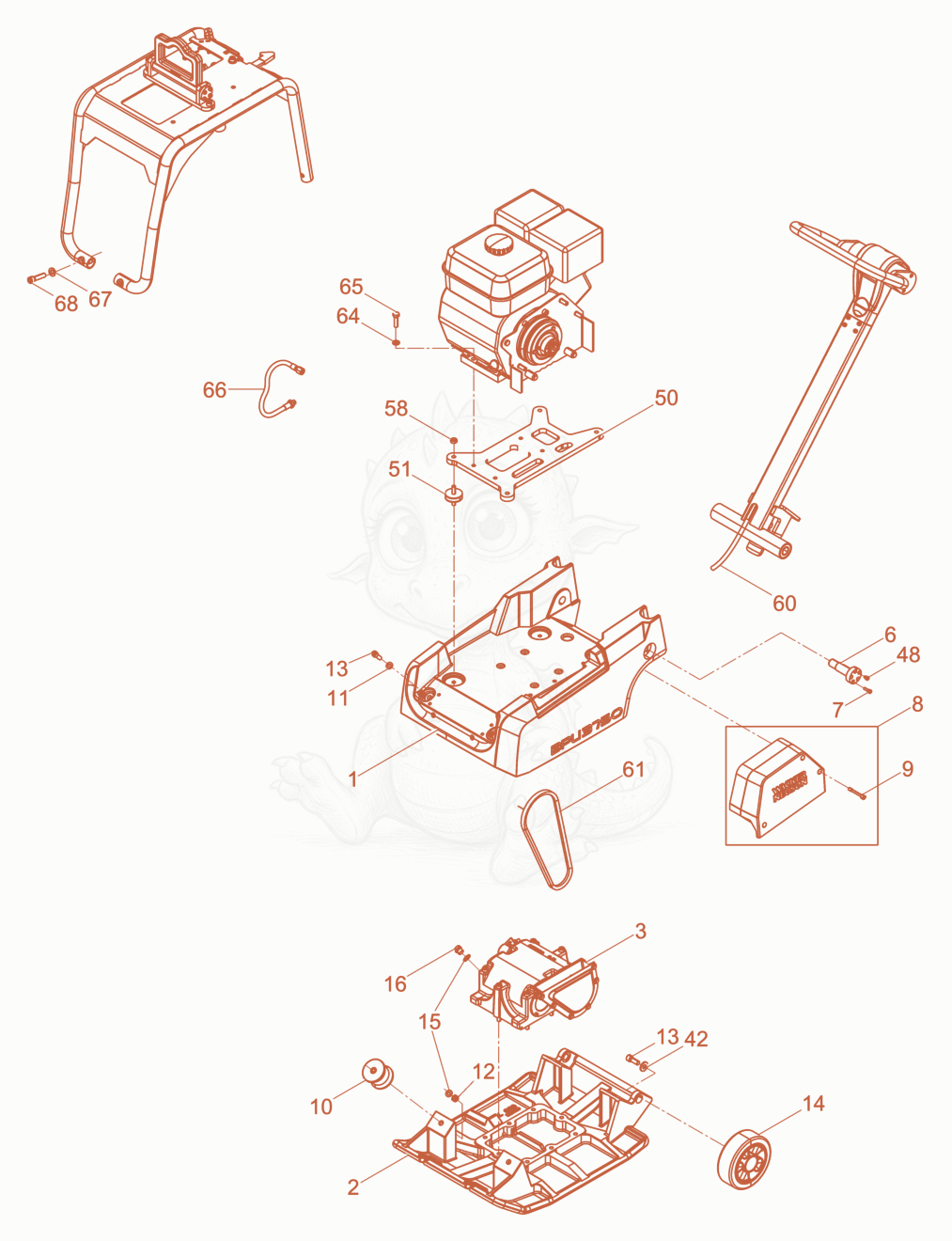

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson BPU3750ATS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000220058
    $2,912.75
    Upper mass - 5000220058×1
  • 25000126173
    $2,115.91
    BASEPLATE-BPU3050 - 5000126173×1
  • 35000220070
    $4,020.91
    Exciter cpl. - 5000220070×1
  • 65000204120
    $73.71
    axle - 5000204120×2
  • 75000011551
    $0.20
    SCREW M6 X 20 SOC.HD. - 5000011551×8
  • 85100050071
    $93.48
    Belt guard - 5100050071×1
  • 95000216659
    $3.85
    SCREW-THIN SHANK END - 5000216659×3
  • 105000125931
    $33.98
    shockmount - 5000125931×4
  • 115000010620
    $0.26
    WASHER B13 FLAT - 5000010620×8
  • 125000010884
    $0.26
    NUT M12 8,HEX - 5000010884×4
  • 135000011529
    $0.84
    SCREW M12 X 30 SOC.HD - 5000011529×6
  • 145000125927
    $156.93
    WHEEL - 5000125927×2
  • 155000014968
    $1.73
    SEAL-RING 16.7 X 24 X 1.5 - 5000014968×1
  • 165000011034
    $14.99
    PLUG M16 HX.HD. - 5000011034×1
  • 425000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×2
  • 485000014425
    $2.06
    SCREW M6 X 8 SOC.HD. - 5000014425×2
  • 505000220500
    $360.15
    Engine Support - 5000220500×1
  • 515000216555
    $32.33
    shockmount - 5000216555×4
  • 585000010883
    $0.29
    NUT M10 8,HEX - 5000010883×4
  • 605000125357
    $71.60
    HOSE-HYDRAULIC - 5000125357×1
  • 615000220515
    $21.27
    V-Belt - 5000220515×1
  • 645000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 655000011437Not stocked
    Hexagonal head cap screw×4
  • 665000129266
    $102.00
    HOSE PIPE-OIL DRAIN - 5000129266×1
  • 675000021465
    $2.70
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×4
  • 685000013569Not stocked
    Cheese head screw×4
