BS50-2 RAMMER,11 SHOE

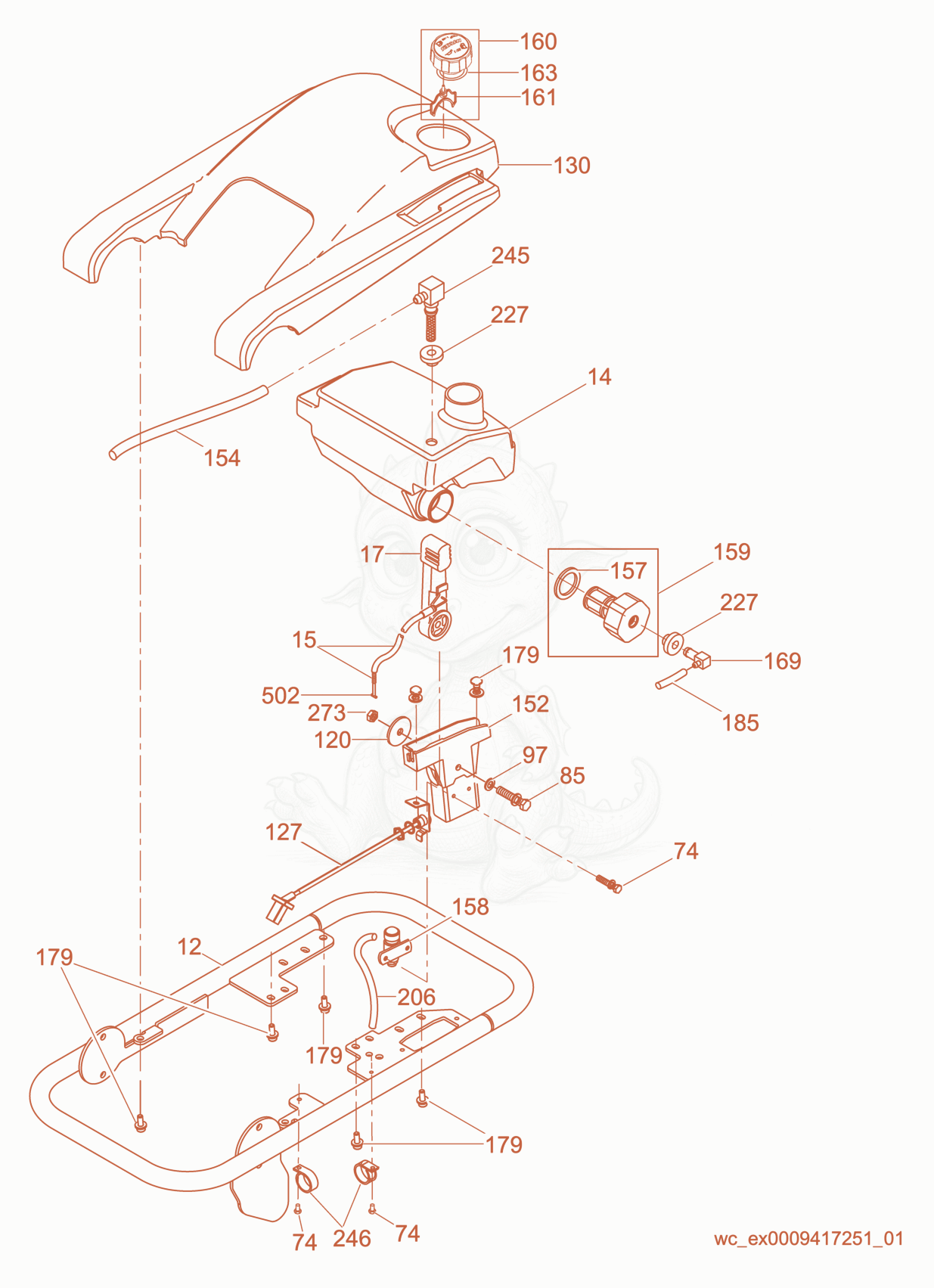

BS50-2 Guide Handle cpl. Diagram

Exploded parts diagram of the Guide Handle cpl. of a Wacker Neuson BS50-2, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

125000179158
$599.10
GUIDE-HANDLE,2-4 CYCLE P-5000112007 - 5000179158×1
145000179162
$368.73
TANK-FUEL,W/VENT HOLE - 5000179162×1
155200017463Not stocked
Throttle Cable Kit×1
175000118148
$14.85
CONTROL-THROTTLE - 5000118148×1
745000011572
$0.26
SCREW M4 X 10 SHCS 8.8,ZINC - 5000011572×4
855000011341
$0.36
SCREW M8 X 40 HX.HD. - 5000011341×1
975000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×1
1205000105194
$1.51
WASHER M8 X 1.5 - 5000105194×1
1275000180926
$189.51
HARNESS-STOP SWITCH,2 CYCLE - 5000180926×1
1305000181604
$336.23
COVER-SIL,YL RAL 1021,EU - 5000181604×1
1525000118149
$6.49
BRACKET-THROTTLE CONTROL - 5000118149×1
1545200003083
$9.41
X-5100019508 Hose-Fuel,Low Perm - 5200003083×1
1575000086312
$7.36
SEAL-RING - 5000086312×1
1585000109329
$14.07
VALVE-FUEL - 5000109329×1
1595000112179
$82.32
KIT-FUEL FILTER W/BUSHING - 5000112179×1
1605000163682
$27.65
CAP-FUEL TANK,RAMMER - 5000163682×1
1615000173019
$5.08
CAP-LANYARD - 5000173019×1
1635000173020
$1.67
Gasket - 5000173020×1
1695000111482
$4.21
FITTING-FILTER,FUEL - 5000111482×1
1795000160861
$0.40
SCREW M6X16 SC HD,W/WASHER,SEM - 5000160861×10
1855200003084
$11.37
x-5100019509 Hose-Fuel,Low Perm - 5200003084×1
2065200004279
$4.58
x-5100019507 Hose-Fuel w/ spring - 5200004279×1
2275000053577
$0.69
BUSHING-TANK VALVE MOUNTING - 5000053577×2
2455000162852
$5.35
FITTING-FILTER FUEL - 5000162852×1
2465000155562
$5.27
CLIP-WIRE HARNESS,BLACK - 5000155562×2
2735000172305
$0.22
NUT-LOCK M8 HEX,AUTO,CLASS 9 - 5000172305×1
5005000165628
$6.50
CABLE-WIRE,INNER - 5000165628×1
5015000165627
$8.61
CABLE-CASING,OUTER - 5000165627×1
5025002003655
$3.62
LUG-END,THROTTLE CABLE - 5002003655×1
