BS50-2 RAMMER,11 SHOE

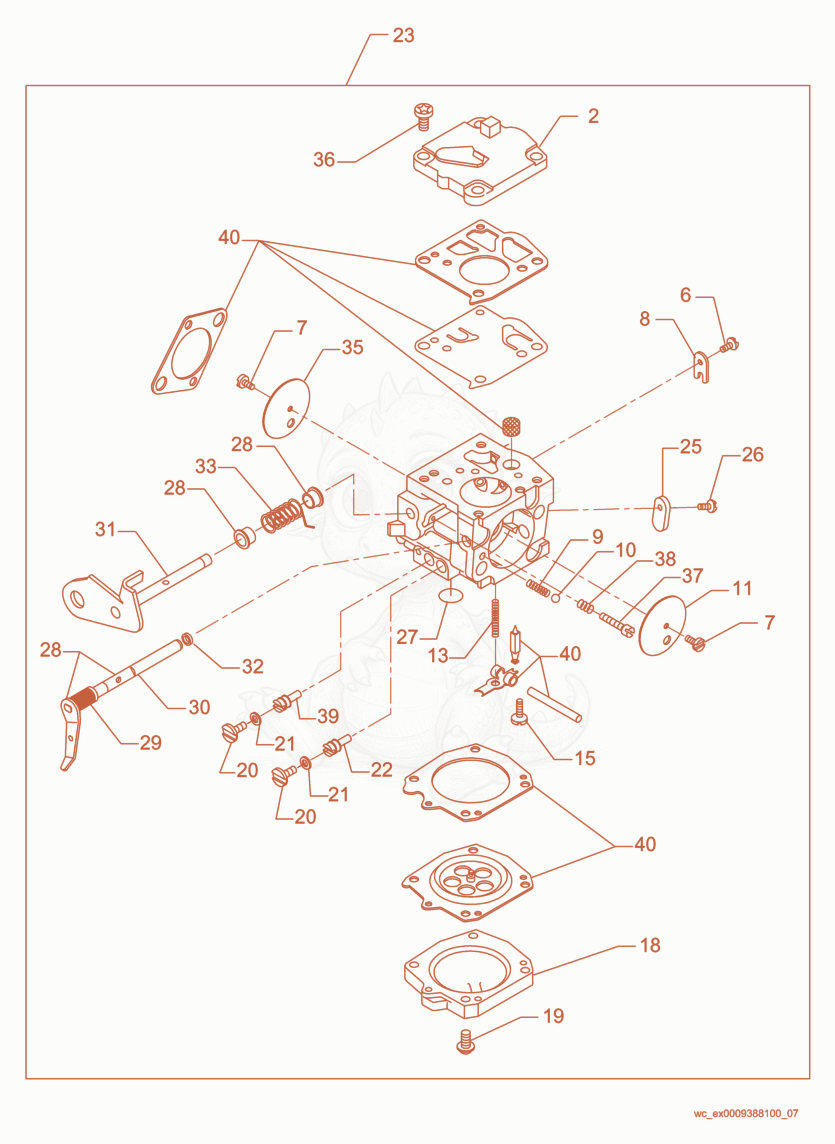

BS50-2 Carburetor cpl. Diagram

Exploded parts diagram of the Carburetor cpl. of a Wacker Neuson BS50-2, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

25000160461
$13.06
cover - 5000160461×1
65000112294
$0.76
SCREW-LEVER,SEC.THROTTLE - 5000112294×1
75000112355
$0.77
SCREW #4-40X1/4 SERR. - 5000112355×2
85002005684
$7.55
CLIP-THROTTLE SHAFT - 5002005684×1
95002005403Not stocked
Spring×1
105002005489
$0.67
BALL-CARBURETOR CHOKE VALVE - 5002005489×1
115000112353Not stocked
Valve×1
135002005427
$0.70
SPRING-INLET LEVER - 5002005427×1
155002005677
$0.76
SCREW-INLET PIVOT PIN RETAINER - 5002005677×1
185000112292
$9.14
NLA COVER-METERING - 5000112292×1
195000159730
$0.99
SCREW-METERING COVER - 5000159730×4
205000075946
$1.29
SCREW-SEALING CAP - 5000075946×2
215000075945
$0.63
WASHER-COPPER SEALING - 5000075945×2
225000150191
$5.37
JET-SIZE .72MM - 5000150191×1
235000157025Not stocked
Carburetor×1
255000112293
$2.20
LEVER-THROTTLE,SECONDARY - 5000112293×1
265000112294
$0.76
SCREW-LEVER,SEC.THROTTLE - 5000112294×1
275002005657
$1.49
PLUG-CARB.BODY CHANNEL,LARGE - 5002005657×1
285000074541
$10.70
BUSHING - 5000074541×4
295000076567
$1.49
SPACER-RUBBER POSITIONER - 5000076567×1
305000112354
$7.11
SHAFT-CHOKE - 5000112354×1
315000112295
$22.84
SHAFT-THROTTLE - 5000112295×1
325000074544
$0.92
O-RING 2.5 X 1.7 - 5000074544×1
335000074542
$0.28
SPRING-THROTTLE SHAFT RETURN - 5000074542×1
355002005687
$0.73
VALVE-THROTTLE SHUTTER - 5002005687×1
365000076566
$1.29
SCREW-COVER RETAINER - 5000076566×4
375000088303
$0.76
SCREW-IDLE ADJUST - 5000088303×1
385000088304
$0.66
SPRING-IDLE ADJUST - 5000088304×1
395000088302
$5.37
JET-IDLE,FIXED .014 (.36MM) - 5000088302×1
405000160460
$14.09
KIT-REPAIR - 5000160460×1
