BS 50-2i, 200 mm shoe low HAV

BS50-2I Engine cpl. Diagram

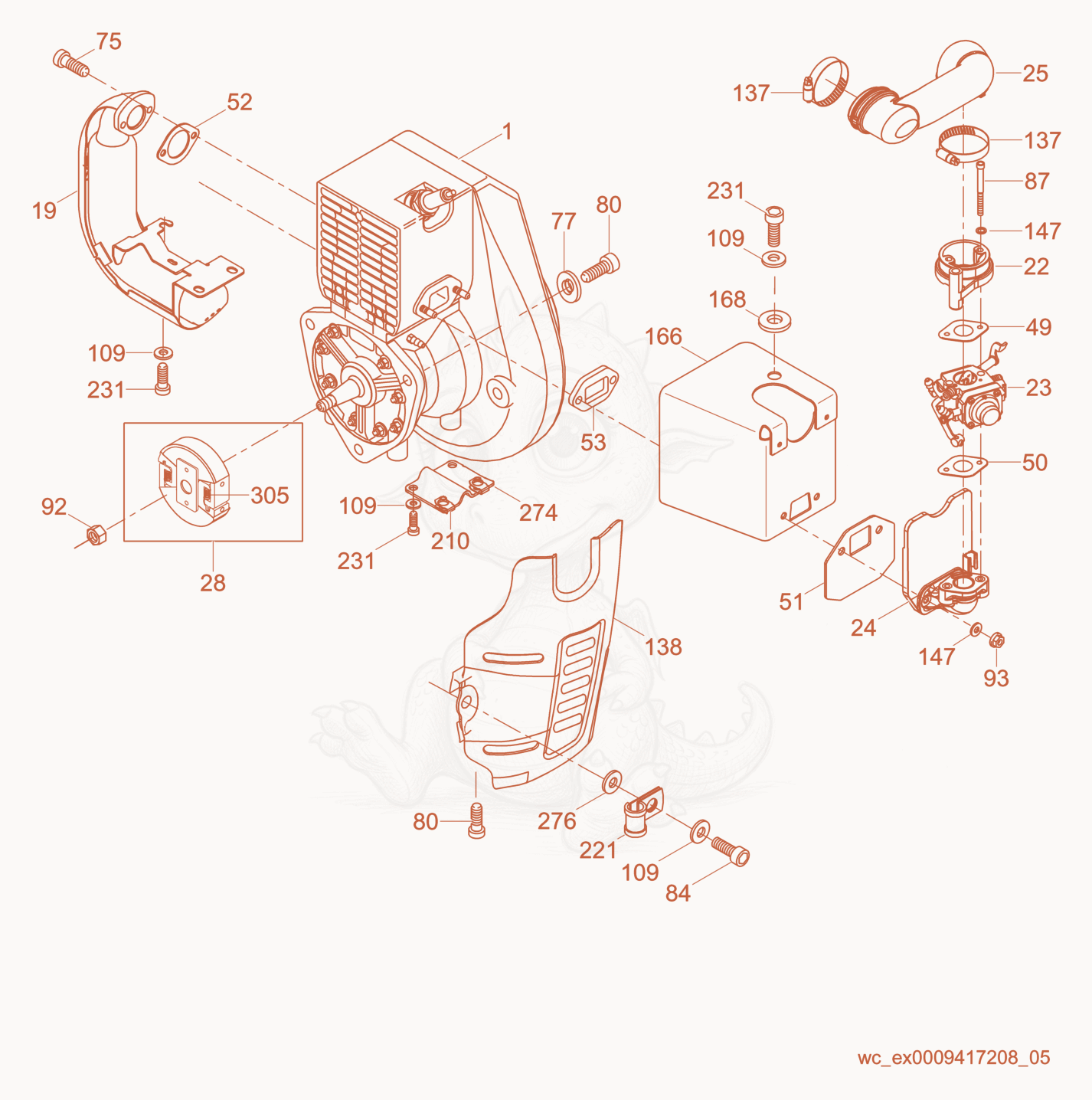

Exploded parts diagram of the Engine cpl. of a Wacker Neuson BS50-2I, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000182676
    $1,830.24
    ENGINE-WM80 MINI BLOCK,OI,S/P - 5000182676×1
  • 195000180080
    $529.45
    MUFFLER-CATALYTIC - 5000180080×1
  • 225000163322
    $31.23
    FLANGE-CARBURETOR - 5000163322×1
  • 235000183841
    $106.29
    CARBURETOR-WLBRO HDA291,11.1MM - 5000183841×1
  • 245000178321
    $54.36
    ADAPTOR-CARB,WM80 - 5000178321×1
  • 255000156976
    $13.85
    TUBE-AIR,2 CYCLE - 5000156976×1
  • 285000157205
    $131.63
    CLUTCH-CENTRIFUGAL,80mm X-5100032207 - 5000157205×1
  • 495000084669
    $0.67
    GASKET-CARBURETOR X-5100032178×1
  • 505000183153
    $1.09
    GASKET-CARBURETOR,RED X-5100032176×1
  • 515200001772
    $6.09
    GASKET-CARB ADAPTER - 5200001772×1
  • 525000175329
    $3.42
    GASKET-EXHAUST - 5000175329×1
  • 535000114575
    $2.44
    GASKET-HEATSHIELD SP=5100032172 - 5000114575×1
  • 685002006160
    $0.12
    RET.RING-EXT 4MM,E TYP - 5002006160×1
  • 755000112202
    $0.28
    SCREW M6X20 12.9,BLOX - 5000112202×2
  • 775000172326
    $1.88
    WASHER 8.4,FLAT,200HV - 5000172326×3
  • 805000011542
    $0.37
    SCREW M8 X 25 SOC.HD. - 5000011542×5
  • 845000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×1
  • 875000111522
    $0.37
    SCREW M5 X 60 SOC.HD. - 5000111522×2
  • 895000058381
    $0.13
    WASHER-LOCK 6 FST - 5000058381×1
  • 925000010883
    $0.29
    NUT M10 8,HEX - 5000010883×1
  • 935000047488
    $0.19
    X-5000183750 NUT M5,HEX,FLANGED - 5000047488×2
  • 1095000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×6
  • 1275000117863
    $15.32
    LEVER-THROTTLE CAM - 5000117863×1
  • 1375000078844
    $2.07
    CLAMP,32/50 - 5000078844×2
  • 1385000176253
    $24.50
    GUARD-CARBURETOR,PAINTED P-5000176420 - 5000176253×1
  • 1475000103211
    $0.13
    WASHER-LOCK,5 - 5000103211×4
  • 1665000173863
    $31.77
    Heatshield - 5000173863×1
  • 1685001005118
    $1.03
    WASHER-STEEL,FLAT - 5001005118×1
  • 1775000118383
    $10.14
    SPRING-THROTTLE RETURN - 5000118383×1
  • 2005000178827
    $46.62
    Repair kit Gasket set WM80 - 5000178827×1
  • 2105000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×2
  • 2315000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×4
  • 2745000175330
    $7.82
    BRACKET-MUFFLER ADAPTER P-5000112007 - 5000175330×1
  • 3055000172983
    $19.71
    Spring - 5000172983×2
