BS60-4 RAMMER,11 PL S,HA(24MM)

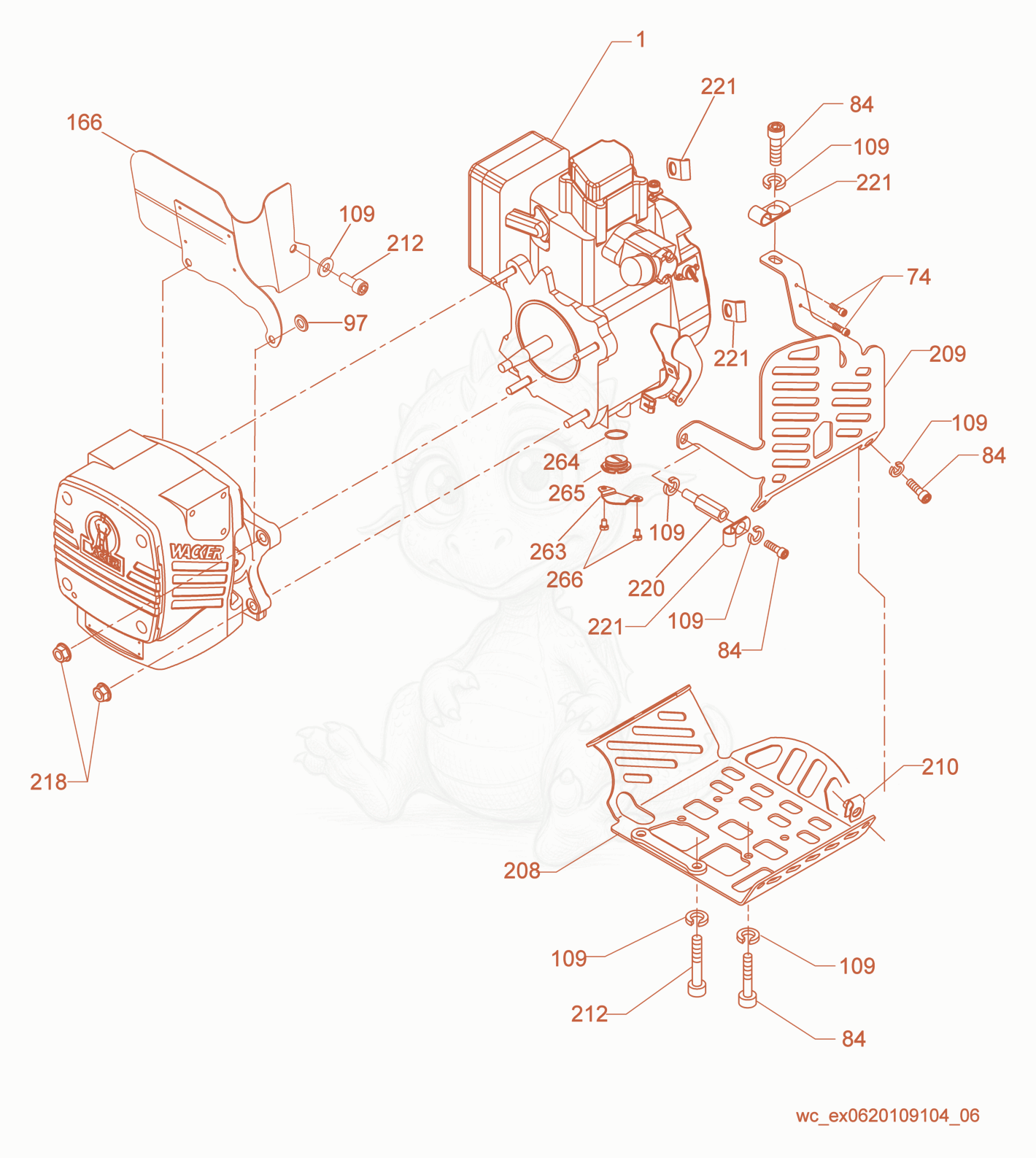

BS60-4 Engine Guarding Diagram

Exploded parts diagram of the Engine Guarding of a Wacker Neuson BS60-4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000164849Not stocked
    WM 90 engine×1
  • 745000011572
    $0.26
    SCREW M4 X 10 SHCS 8.8,ZINC - 5000011572×2
  • 845000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×8
  • 975000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×2
  • 1095000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×12
  • 1665000157202
    $22.66
    HEATSHIELD - 5000157202×1
  • 2085000164998
    $115.35
    GUARD-ENGINE WLDMNT LWR P-5000176420 - 5000164998×1
  • 2095000164997
    $105.49
    GUARD-ENGINE UPPER,PAINTED P-5000176420 - 5000164997×1
  • 2105000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×2
  • 2125000011542
    $0.37
    SCREW M8 X 25 SOC.HD. - 5000011542×3
  • 2185000115570
    $0.12
    Nut M8 Flange, Non serrated - 5000115570×6
  • 2205000156953Not stocked
    Spacer×1
  • 2215000156954
    $7.17
    CLAMP-HOSE 1/4 DIA. - 5000156954×2
  • 2635000163864
    $6.19
    BRACKET-RETAINER - 5000163864×1
  • 2645000164333
    $0.16
    O-RING,DASH 021,RED SIL,70DURO - 5000164333×1
  • 2655000164193
    $4.78
    5000160983CASE,WM90 - 5000164193×1
  • 2665000012356
    $0.33
    SCREW M6 X 10 HX.HD. - 5000012356×2
