BS70-4As RMR,11 PL SHOE,EU 40,GXR

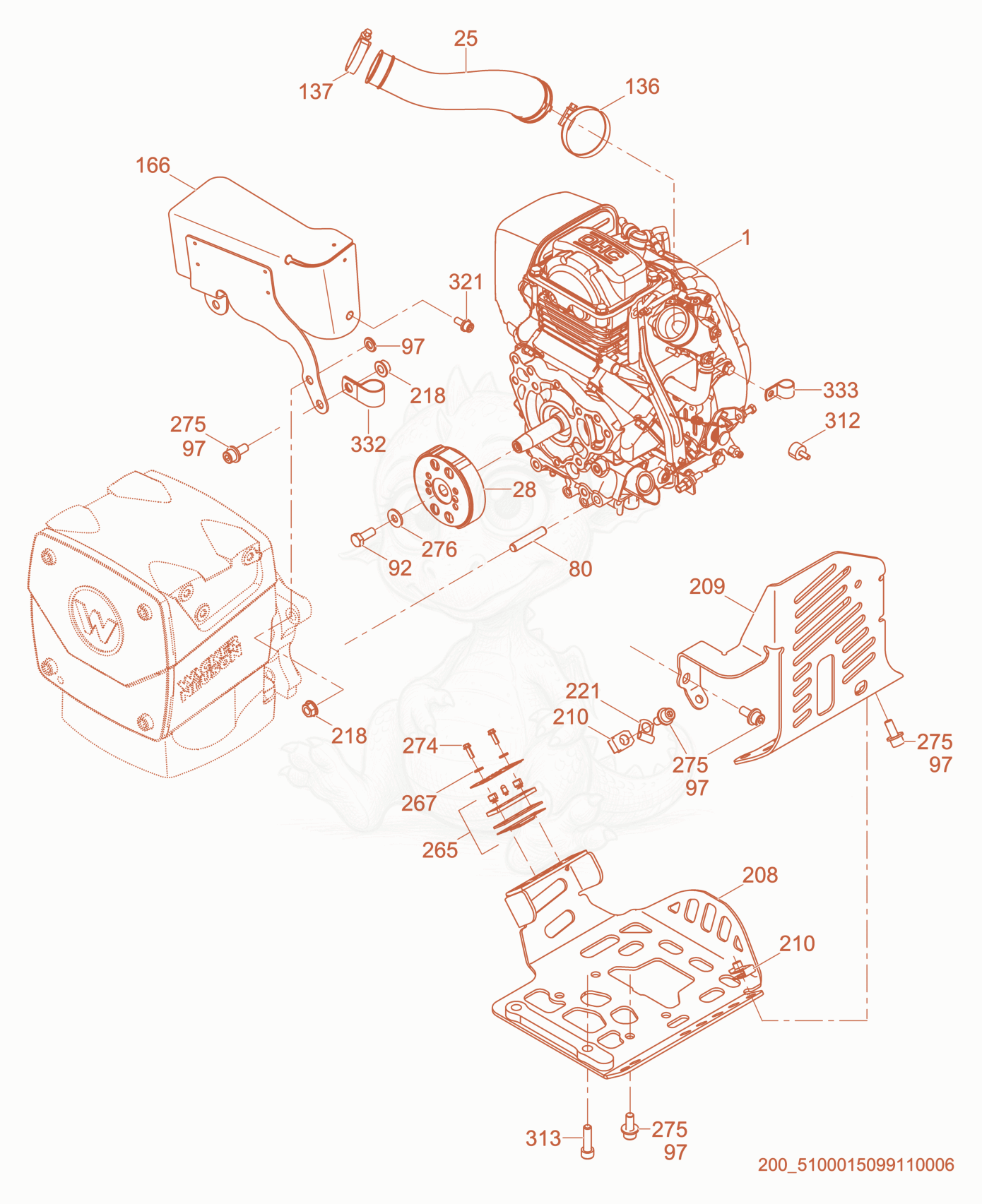

BS70-4AS Engine Guarding Diagram

Exploded parts diagram of the Engine Guarding of a Wacker Neuson BS70-4AS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100028146
    $3,571.00
    Engine-GXR120RT,Premium,S/P - 5100028146×1
  • 255200013037Not stocked
    Air tube×1
  • 285000182208
    $146.15
    CLUTCH-CENTRIFUGAL,90MM - 5000182208×1
  • 805000010928
    $0.47
    STUD M8 X 30 - 5000010928×4
  • 925000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×1
  • 975000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×10
  • 1365000078844
    $2.07
    CLAMP,32/50 - 5000078844×1
  • 1375000089701
    $1.42
    CLAMP 20-45 WORM DRIVE - 5000089701×1
  • 1665100015970
    $52.01
    Deflector-Air,Honda,GXR120 - 5100015970×1
  • 1905000163956
    $0.46
    CLAMP-TUBE .625 ID COV-1111 - 5000163956×1
  • 2085200015613Not stocked
    Lower engine guard×1
  • 2095200015615Not stocked
    Upper engine guard×1
  • 2105000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×3
  • 2185000115570
    $0.12
    Nut M8 Flange, Non serrated - 5000115570×5
  • 2215000156954
    $7.17
    CLAMP-HOSE 1/4 DIA. - 5000156954×1
  • 2655200015897Not stocked
    Low oil indicator×1
  • 2675000164907
    $0.46
    WASHER A5 LOCK,EXT,BLK ZINC 8T - 5000164907×2
  • 2745200018197Not stocked
    Hexagonal flange head screw×2
  • 2755000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×8
  • 2765000160298
    $0.15
    WASHER-B8.4 FLAT,2THK,20 OD - 5000160298×1
  • 3125200015894Not stocked
    Bumper×1
  • 3135000011541
    $1.06
    SCREW M8 X 30 SOC.HD. - 5000011541×2
  • 3215100017182
    $0.85
    SCREW M6 X 35 D - 5100017182×1
