BV 35A-P BACKPACK VIBRATOR-WAM

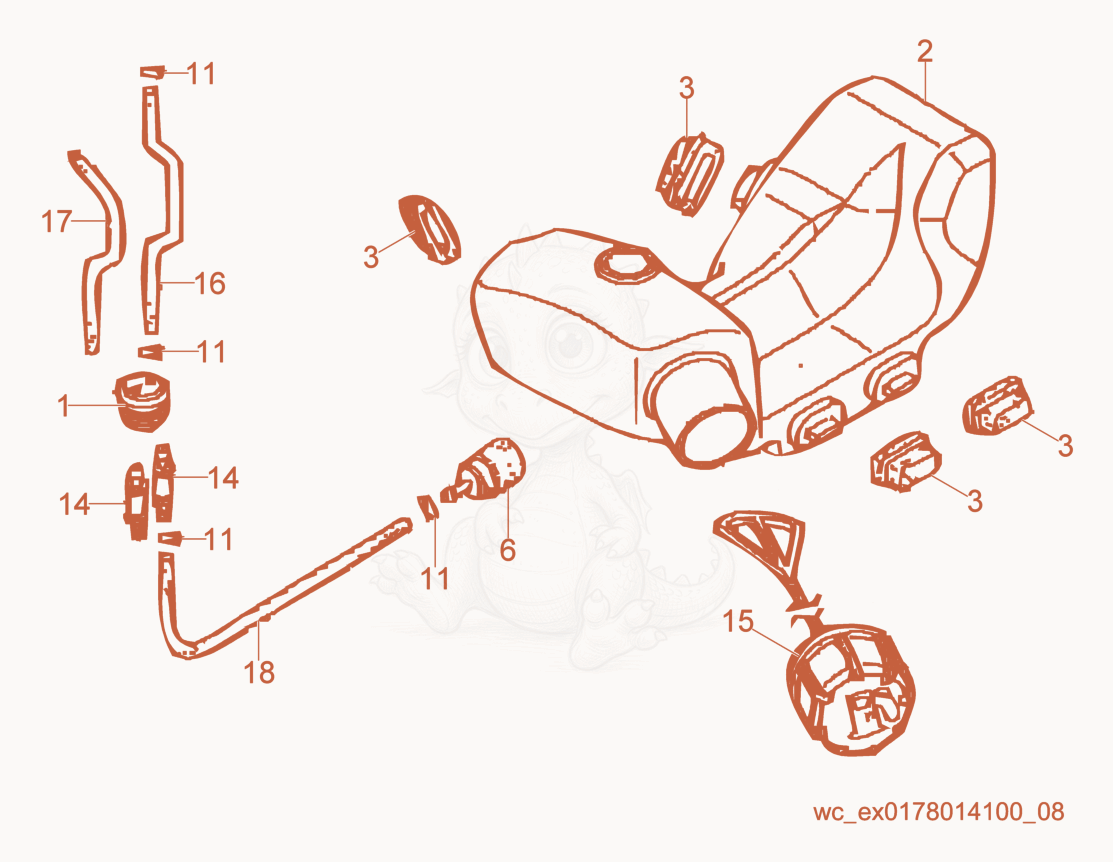

BV35A-P Fuel Tank Diagram

Exploded parts diagram of the Fuel Tank of a Wacker Neuson BV35A-P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000157566
    $5.23
    GROMMET-FUEL TUBE - 5000157566×1
  • 35000217194
    $2.12
    RUBBER-TANK MOUNTING - 5000217194×4
  • 65000217197Not stocked
    Fuel filter×1
  • 115000157577
    $1.94
    CLIP-TUBE - 5000157577×4
  • 145000157568
    $6.96
    FITTING - 5000157568×2
  • 165000217198
    $5.36
    TUBE-FUEL - 5000217198×1
  • 175000217200
    $2.28
    TUBE-FUEL RETURN - 5000217200×1
  • 185000217201
    $7.96
    TUBE-FUEL - 5000217201×1
