BV50A-P BACKPACK (SPM4+PH45)

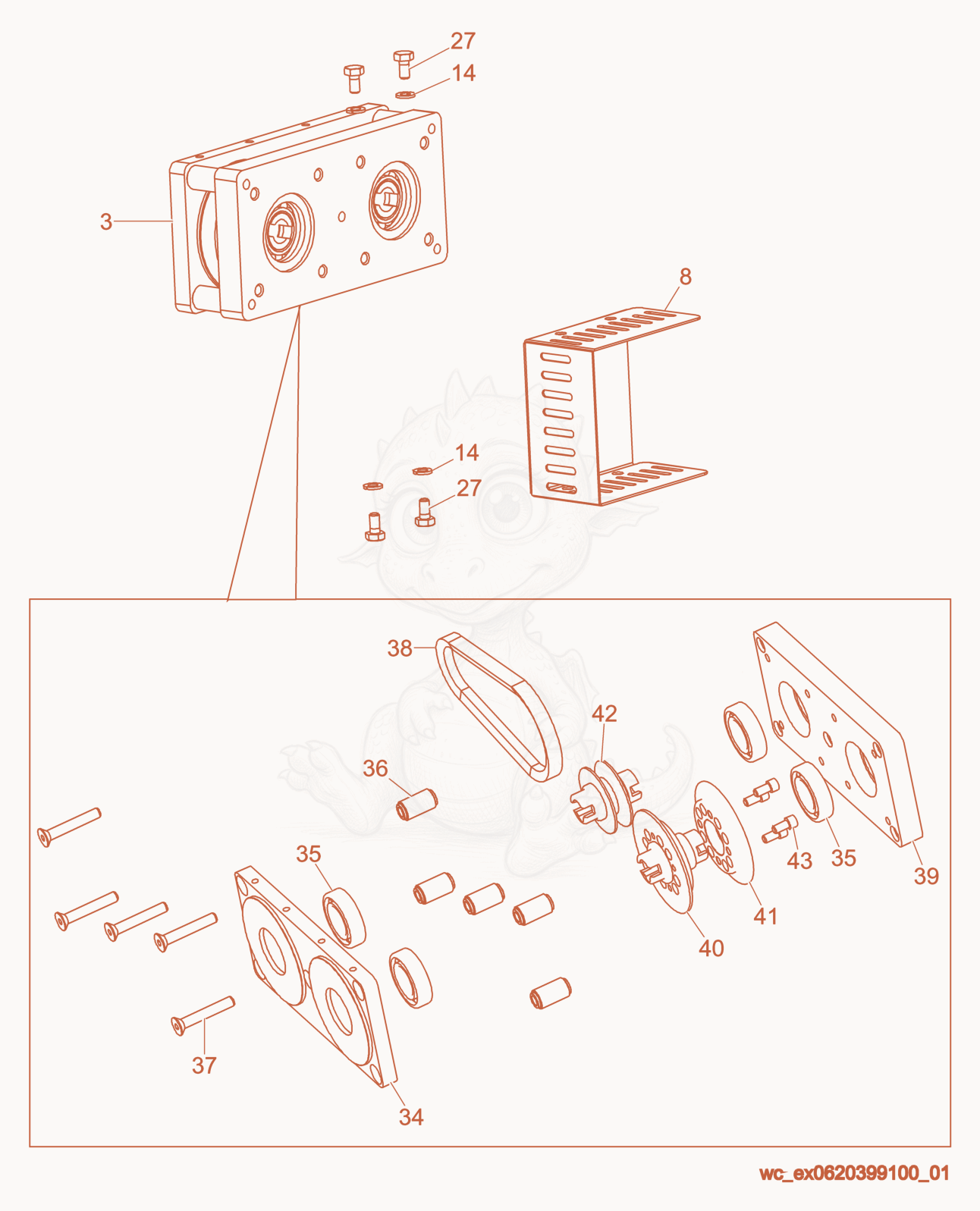

BV50A-P Transmission cpl. Diagram
- TRANSMISSION ASSEMBLY - 5000174880×1
- SHROUD-TRANSMISSION - 5000174844×1
- WASHER-LOCK M6 - 5000174804×4
- BOLT-HEX 1/4-20 - 5000174882×4
- COVER-REAR - 5000174863×1
- BEARING - 5000174825×4
- Bushing - 5000174865×5
- BOLT 5/16-18 X 2 - 5000174866×5
- BELT 4L-170 - 5000174847×1
- COVER-FRONT - 5000174864×1
- Shaft - 5000174871×1
- Retainer - 5000174872×1
- Shaft - 5000174873×1
- BOLT 1/4-20 X 1/2 - 5000174820×4
