CH5000 CROSS HEATER,OIL & GEN

CH5000 Manifold cpl. Diagram

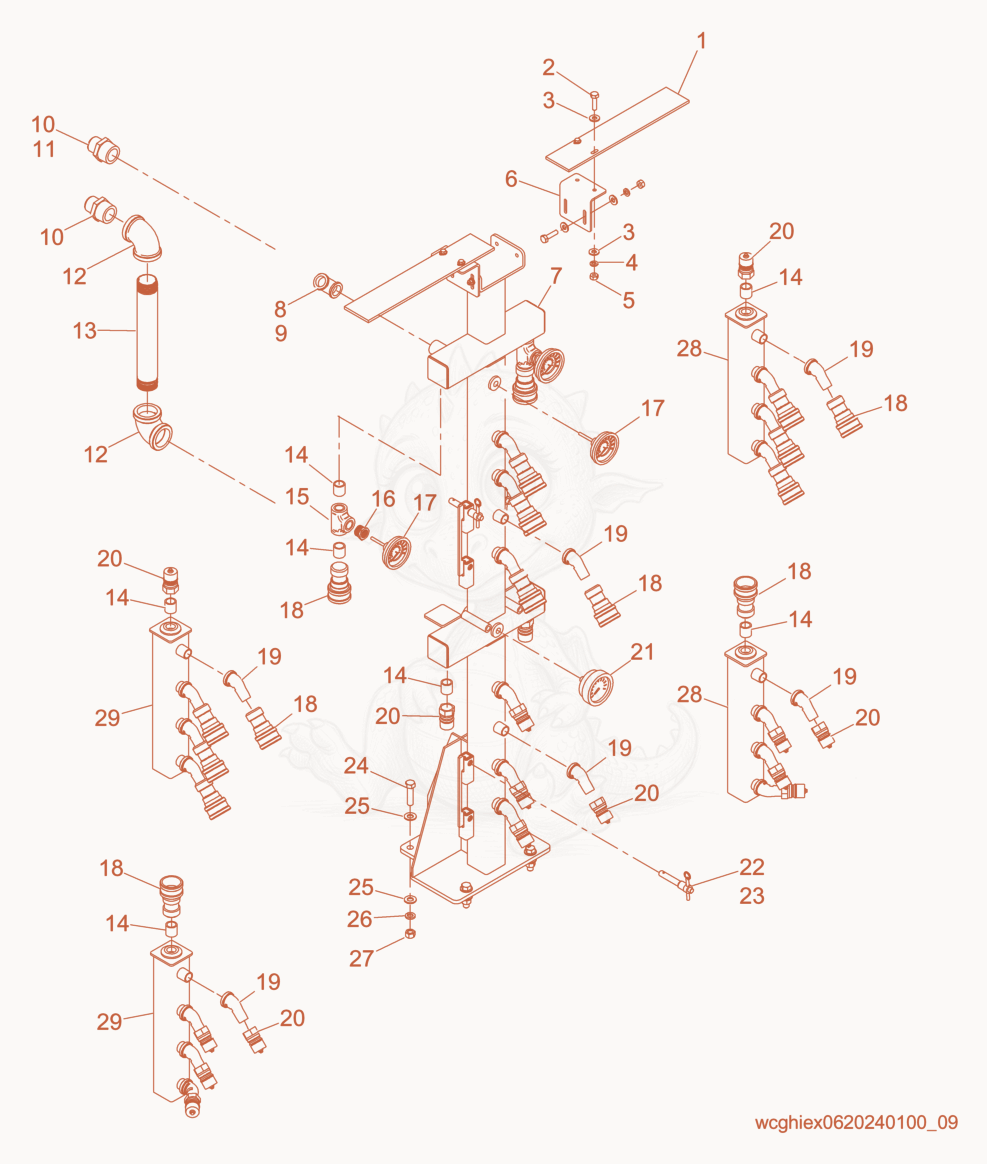

Exploded parts diagram of the Manifold cpl. of a Wacker Neuson CH5000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000172475Not stocked
    Frame×2
  • 25000167721Not stocked
    Bolt×8
  • 35000167729Not stocked
    Flat washer×16
  • 45000167733Not stocked
    Lock washer×8
  • 55000167690Not stocked
    Nut×8
  • 65000170565Not stocked
    Angle×2
  • 75000170566Not stocked
    Manifold×1
  • 85000168631Not stocked
    Coupling×2
  • 95000168027Not stocked
    Elbow×2
  • 105000168543Not stocked
    Hydraulic adapter×2
  • 125000168459Not stocked
    Elbow×2
  • 135000170564Not stocked
    Nipple fitting×1
  • 145000168390Not stocked
    Nipple fitting×10
  • 155000168056Not stocked
    Tee fitting×2
  • 165000168060Not stocked
    Bushing×2
  • 175000168096Not stocked
    Thermometer×3
  • 185000168213Not stocked
    Quick disconnect coupling×16
  • 195000168026Not stocked
    Elbow×24
  • 205000168214Not stocked
    Quick disconnect coupling×16
  • 215000168708Not stocked
    Gauge-pressure×1
  • 225000172594Not stocked
    Pin×4
  • 235000168262Not stocked
    Lanyard×4
  • 245000167701Not stocked
    Bolt×4
  • 255000167728Not stocked
    Flat washer×8
  • 265000167734Not stocked
    Lock washer×4
  • 275000167689Not stocked
    Nut×4
  • 285000170570Not stocked
    Manifold×2
  • 295000170569Not stocked
    Manifold×2
