CRT46KHO

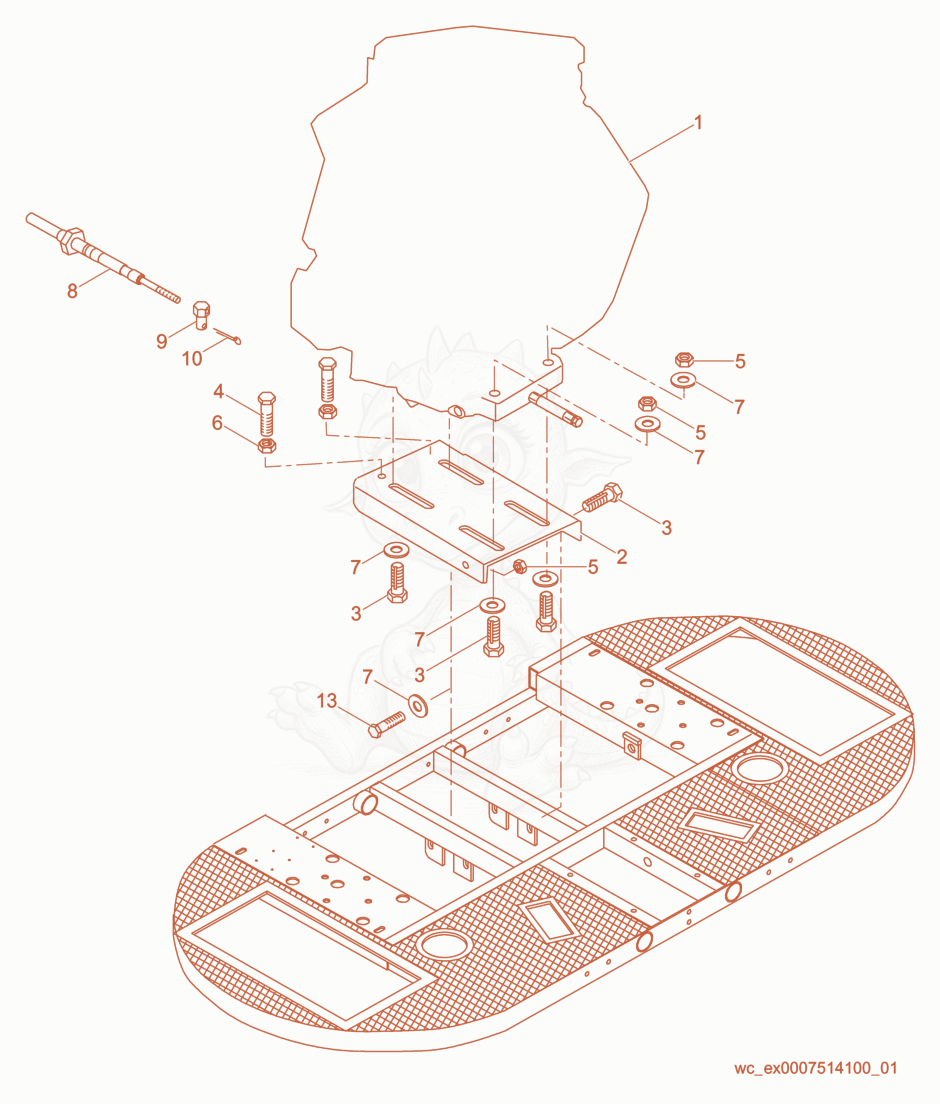

CRT46KHO Engine/Console Diagram

Exploded parts diagram of the Engine/Console of a Wacker Neuson CRT46KHO, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000116732Not stocked
    Guard×1
  • 15000111024
    $3.82
    GASKET-EXHAUST - 5000111024×2
  • 15000089377
    $582.12
    MUFFLER-EXHAUST - 5000089377×1
  • 15000088737
    $23.83
    FILTER-AIR - 5000088737×1
  • 15000088736
    $6.97
    FILTER-AIR,PRECLEANER - 5000088736×1
  • 15000088729Not stocked
    Fuel filter×1
  • 15000088723
    $983.64
    Solenoid - 5000088723×1
  • 15000088722
    $356.06
    Starter - 5000088722×1
  • 15000088718Not stocked
    Dipstick×1
  • 15000088714
    $11.58
    O-ring - 5000088714×2
  • 15000088713
    $13.26
    SEAL-OIL - 5000088713×1
  • 15000088085
    $12,102.57
    ENGINE-KOHLER 25HP - 5000088085×1
  • 15000088712
    $19.01
    FILTER-OIL - 5000088712×1
  • 15000080657
    $2.73
    SPARK PLUG-CHAMPION RC12YC - 5000080657×1
  • 25000111929
    $70.72
    CONSOLE-ENGINE - 5000111929×1
  • 35000087861Not stocked
    Screw×4
  • 35000087862
    $2.99
    SCREW 3/8-16 X 1-3/4 - 5000087862×6
  • 45000025689
    $1.88
    SCREW 1/2-13 X 2 GR5,HX.HD. - 5000025689×2
  • 55000087940
    $2.99
    NUT 3/8-16,STOVER - 5000087940×2
  • 65000025619
    $0.13
    NUT 1/2-13,HEX. - 5000025619×4
  • 75000088244
    $1.58
    WASHER-FLAT - 5000088244×2
  • 85000088901
    $284.13
    CABLE-THROTTLE H.D. - 5000088901×1
  • 95000088370
    $33.98
    Pivot - 5000088370×1
  • 105000088366
    $2.99
    PIN 3/16,COTTER - 5000088366×1
  • 115000111212
    $104.68
    HOSE-DRAIN,KOHLER - 5000111212×1
  • 125000089379
    $18.80
    BRACKET-THROTTLE,KOHLER - 5000089379×1
