CRT46KHO

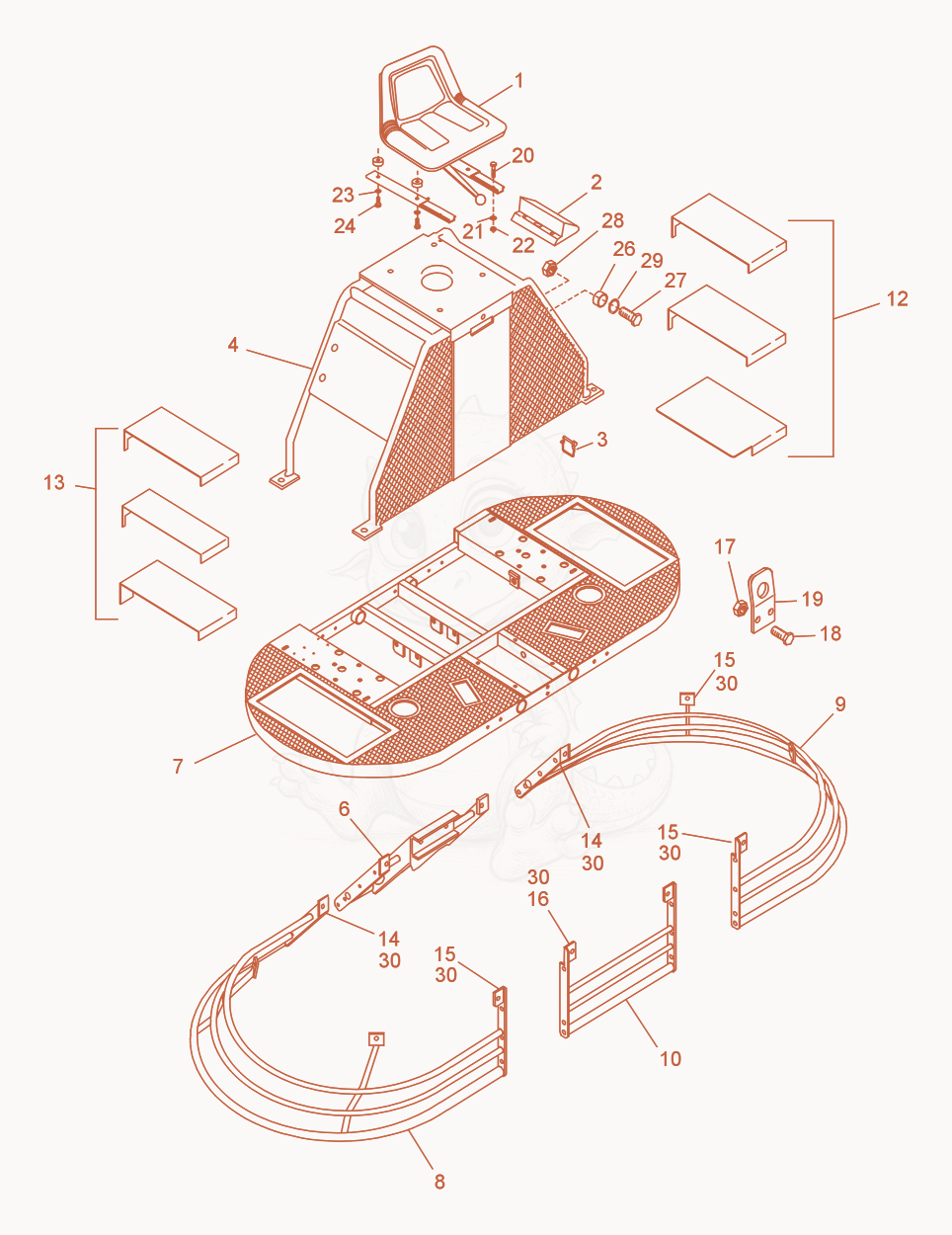

CRT46KHO Frame Diagram

15000087952
$440.19
SEAT - 5000087952×1
25000089082
$244.98
COVER-CONTROL PANEL - 5000089082×1
35000088127
$16.98
Latch - 5000088127×1
45000088117
$1,053.88
FRAME-SEAT - 5000088117×1
55000025042
$0.24
SCREW 5/16-18 X 3/4,FLANGE LCK - 5000025042×12
55000025616
$0.19
NUT 5/16-18,HEX - 5000025616×12
65000088059Not stocked
Guard×1
75000110217
$1,979.30
FRAME-MAIN - 5000110217×1
85000089447Not stocked
Guard×1
95000089446Not stocked
Guard×1
105000088058
$460.41
GUARD-FRONT - 5000088058×1
115000025042
$0.24
SCREW 5/16-18 X 3/4,FLANGE LCK - 5000025042×12
115000025616
$0.19
NUT 5/16-18,HEX - 5000025616×12
125000111381
$106.35
COVER-DRIVE LINE,LH - 5000111381×1
135000111383
$71.43
COVER-DRIVE LINE,RH - 5000111383×1
145000025616
$0.19
NUT 5/16-18,HEX - 5000025616×2
145000025550
$4.27
SCREW 5/16-18 X 2,HX.HD. - 5000025550×2
155000025546
$0.12
SCREW 5/16-18 X 1 GR5,HX.HD. - 5000025546×6
155000025616
$0.19
NUT 5/16-18,HEX - 5000025616×6
165000025550
$4.27
SCREW 5/16-18 X 2,HX.HD. - 5000025550×4
165000025616
$0.19
NUT 5/16-18,HEX - 5000025616×4
175000025617
$0.07
NUT 3/8-16,HEX - 5000025617×8
185000025554
$0.14
SCREW 3/8-16 X 1 GR5,HX.HD. - 5000025554×8
195000110536
$38.31
HOOK-LIFTING - 5000110536×4
205000088364Not stocked
Screw×24
215000087930
$1.09
WASHER 3/8,FLAT,HDN - 5000087930×12
225000025634
$0.22
NUT-LOCK 5/16-18,HEX,NYLON INS - 5000025634×26
235000072699
$4.32
WASHER-LOCK 5/16 - 5000072699×4
245000088364Not stocked
Screw×24
265000113756
$5.78
BUSHING-RUBBER - 5000113756×4
275000113758
$2.96
SCREW 1/4-20 X 2 - 5000113758×4
285000087941
$2.99
NUT-LOCK STOVER 1/4 -20 - 5000087941×4
295000025635
$0.02
WASHER 1/4 NOM,STEEL,FLAT - 5000025635×4
