CRT48-25K-H RIDE-ON TROWEL

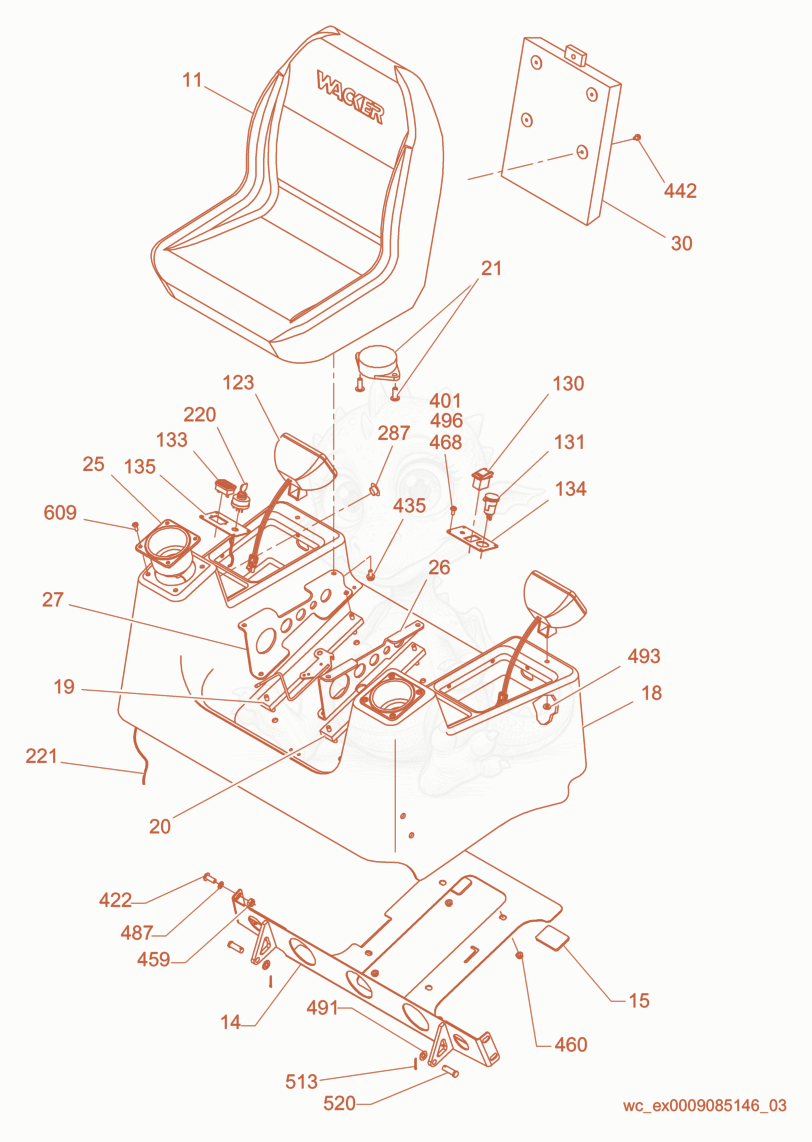

CRT48-25K-H Seat Assembly Diagram
- Seat-Operator - 5000110970×1
- PLATE-SEAT MOUNTING ASSY P-5000112007 - 5000119091×1
- PAD-SEAT REST - 5000155501×1
- 185000116881Not stockedHousing×1
- BRACKET-ADJUSTER W/LATCH - 5000116886×1
- BRACKET-ADJUSTER - 5000116960×1
- SWITCH-SEAT - 5000153730×1
- INSERT-CUP HOLDER - 5000116585×2
- BRACKET-SEAT STANDOFF,LEFT - 5000117850×1
- BRACKET-SEAT STANDOFF,RIGHT - 5000117851×1
- HOLDER-MANUAL - 5000083220×1
- 1235000116748Not stockedLight×2
- X-5000192856 SWITCH-LIGHT,LEFT CNTRL - 5000117284×1
- RECEPTACLE 12V - 5000117519×1
- hour meter - 5000117280×1
- PANEL-CONTROL,LEFT - 5000150024×1
- PANEL-CONTROL,RIGHT - 5000150025×1
- SWITCH-KEY SP=5100043487 - 5000119660×1
- wiring harness - 5000119661×1
- PLUG-PUSH IN,9/16 - 5000155852×1
- SCREW M4 X 14 PHIL HD - 5000110405×8
- 4225000118078Not stockedScrew×4
- SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×2
- SCREW #10X3/4,TYP B,SLT FLG HX - 5000155497×4
- NUT-LOCK M10 HEX. - 5000010365×4
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×8
- NUT-LOCK M4 HEX. - 5000010370×8
- 4875000118075Not stockedFlat washer×4
- WASHER B13 FLAT - 5000010620×2
- WASHER B8.4 FLAT - 5000010374×2
- WASHER B5.3 FLAT - 5000010372×8
- PIN 3.2 X 25 COTTER - 5000010499×2
- PIN-CLEVIS 1/2 X 2 - 5000116977×2
- RIVET-NYLON DRIVE - 5000152696×8
