CRT48-25K-L RIDE-ON TROWEL

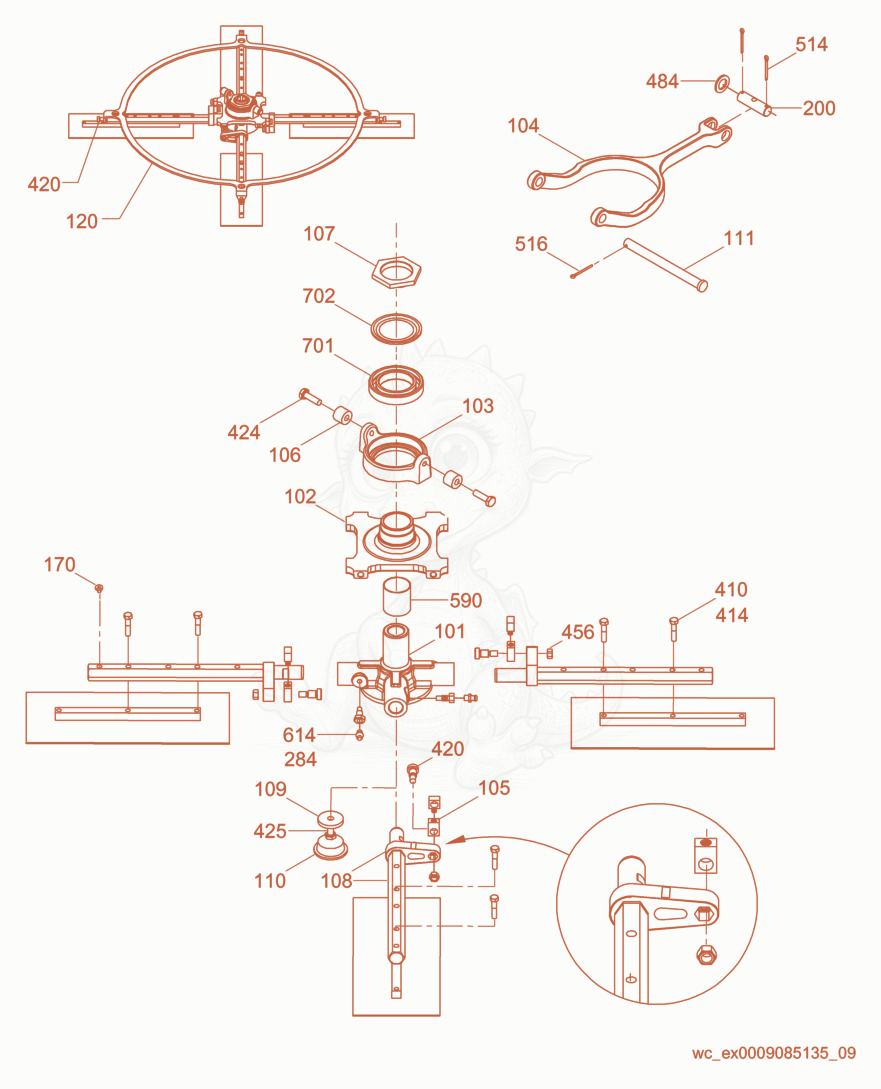

CRT48-25K-L Blade Mechanism-Right Diagram
- NLA HUB-SPIDER CRT48-25K - 5000150286×1
- RING-BLADE LIFT - 5000118616×1
- HOLDER-BEARING - 5000118618×1
- YOKE-BLADE LIFT P-5000176420 - 5000118620×1
- LINK-ADJUSTABLE - 5000114085×4
- TUBE-LIFT - 5000116899×2
- CAP-LIFT P-5000176420 - 5000118621×1
- SHAFT-ASSEMBLY,1-1/8 ,RIGHT - 5000156947×4
- 1095000119367Not stockedWasher×1
- PLUG-CAP #W20,TAPER,PLAST. RED - 5000074986×1
- SHAFT-FORK PIVOT - 5000150258×1
- RING-STABILIZER - 5000119291×1
- PLUG-CAP #1,TAPERED,PLASTC,RED - 5000074985×8
- MOUNT-PITCH CABLE - 5000116900×1
- CAP-GREASE FITTING,RED - 5000155804×4
- SCREW M8 X 40 HX.HD. - 5000011454×16
- SCREW 5/16-18 X 1-5/8 HHCS,GR5 - 5000151126×16
- SCREW 1/2 x 1/2,SHOULDER - 5000073458×12
- SCREW M10 X 35 HX.HD. - 5000011438×2
- SCREW M10 X 25 HX.HD. - 5000011440×1
- SCREW-TROWEL ARM RETAINER - 5000073584×8
- NUT 3/8-16,HEX - 5000025617×4
- WASHER B21 FLAT - 5000010616×2
- PIN-COTTER 1/8 X 1-1/2 - 5000116751×2
- PIN-COTTER 3/16 X 2 - 5000116768×1
- BEARING-SLEEVE,46MM ID - 5000074526×1
- FITTING-GREASE AM6 - 5002004705×6
- BEARING-BALL,6012-2NSE - 5000118623×1
- RING-NILOS,6012ZAV - 5000118807×1
