CRT48-34V RIDE-ON TROWEL EU

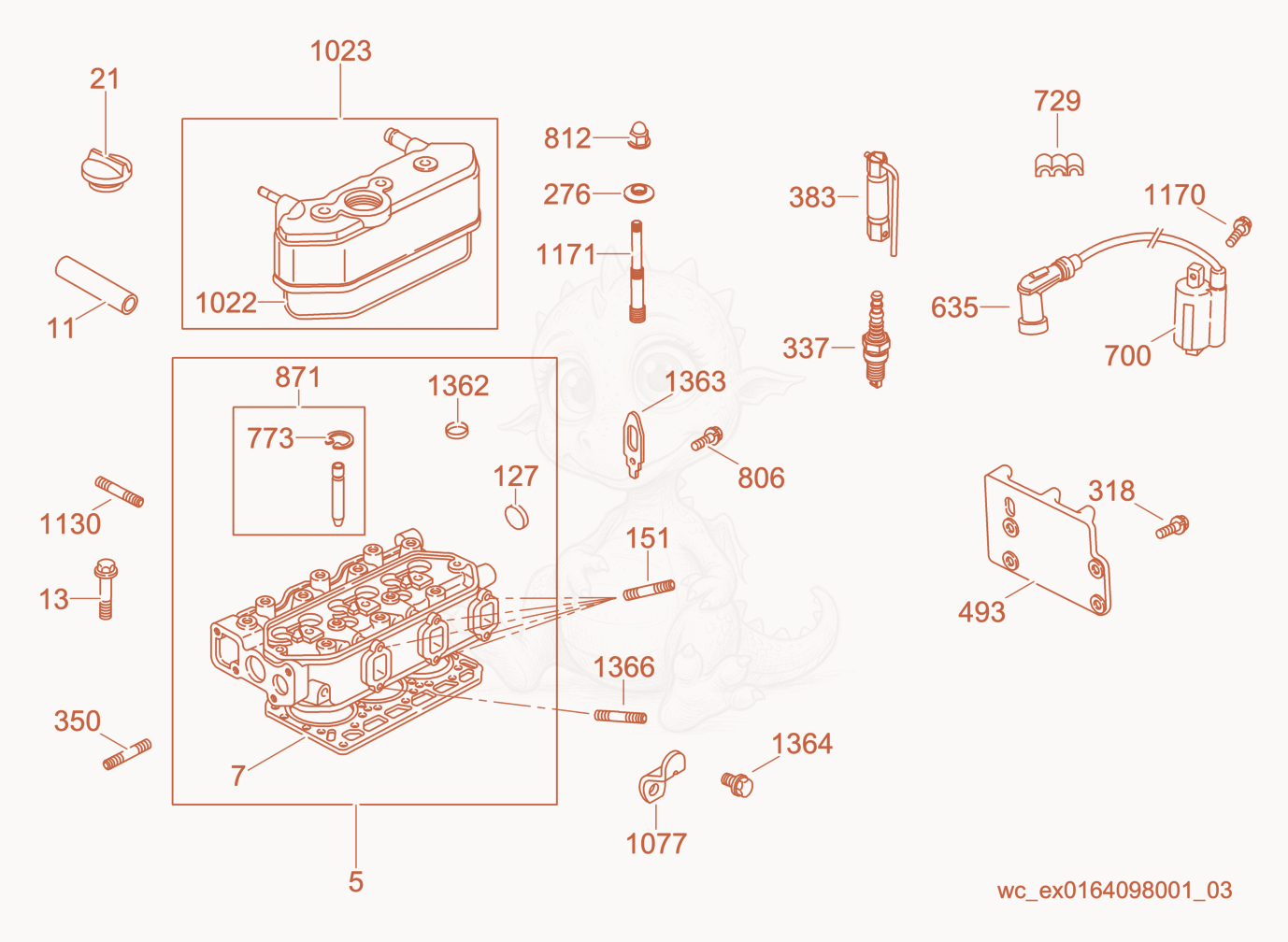

CRT48-34V Cylinder Head Diagram
- HEAD-CYLINDER - 5000216254×1
- GASKET-CYLINDER HEAD - 5000157835×1
- screw - 5000157833×14
- CAP-OIL FILTER - 5000157819×1
- PLUG-WELCH - 5000157780×1
- STUD - 5000157838×5
- SEAL-RING - 5000157824×3
- screw - 5000157840×4
- Spark plug - 5000151245×3
- STUD - 5000157834×2
- WRENCH-SPARK PLUG - 5000110806×3
- BRACKET-MOUNTING - 5000157841×1
- cap - 5000157842×3
- COIL-INDUCTION - 5000157845×3
- CLIP - 5000157844×2
- RETAINER - 5000157830×6
- screw - 5000157827×2
- nut - 5000157823×3
- BUSHING - 5000157829×6
- GASKET - 5000157821×1
- Cover - 5000157822×1
- BRACKET-LIFTING - 5000157836×1
- STUD - 5000157832×6
- screw - 5000157843×6
- STUD - 5000157825×3
- PLUG-WELCH - 5000216230×1
- BRACKET-LIFTING - 5000157826×1
- screw - 5000157840×2
- STUD - 5000157837×1
