CRT48-34V RIDE-ON TROWEL EU

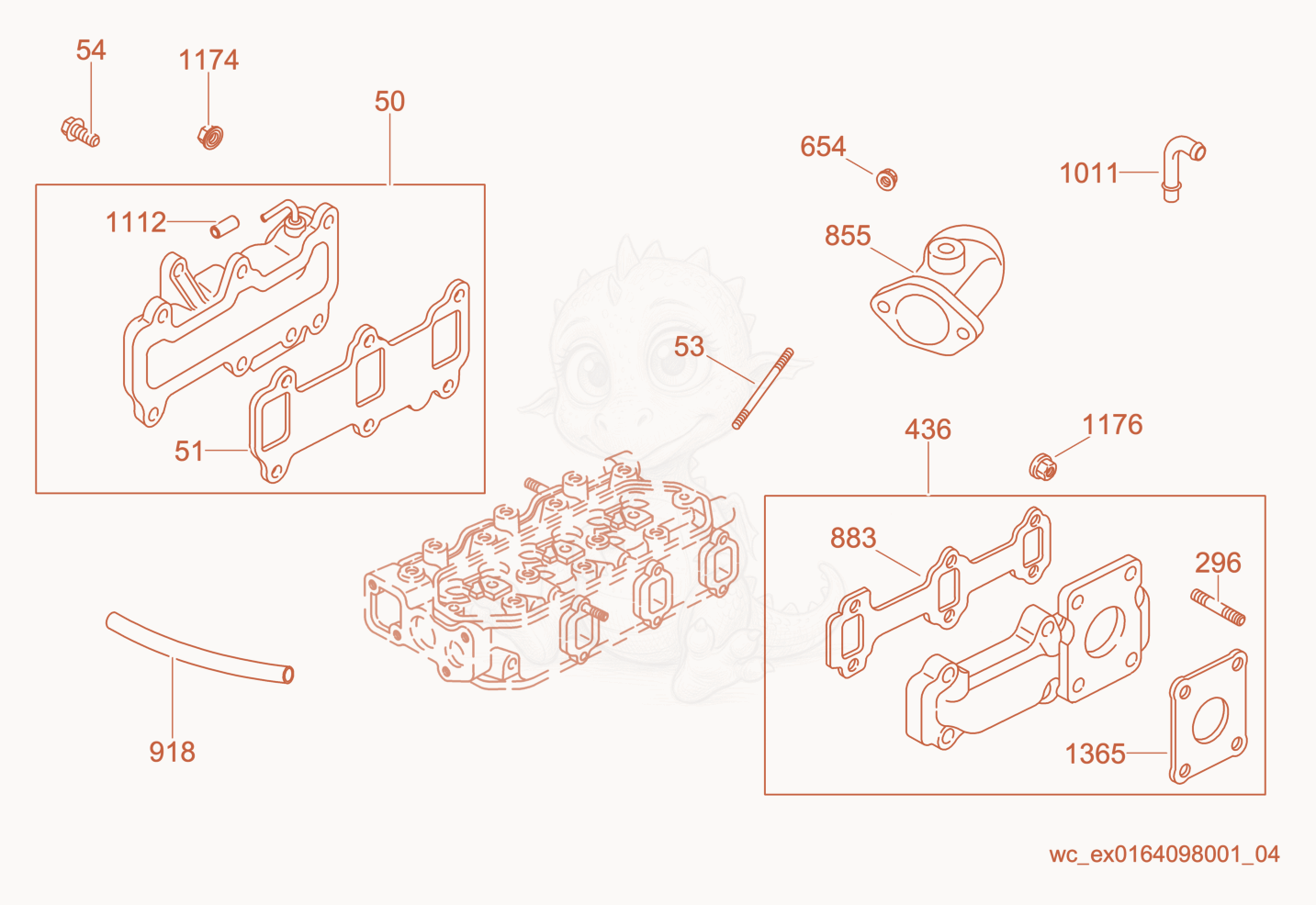

CRT48-34V Manifold cpl. Diagram
- MANIFOLD-INTAKE - 5000157847×1
- GASKET - 5000157849×1
- Screw - 5000157782×2
- Screw - 5000157782×1
- SCREW-WASHER (4X6) - 5000157587×4
- MANIFOLD-EXHAUST - 5000157855×1
- nut - 5000157850×2
- adapter - 5000157853×1
- GASKET-EXHAUST - 5000157856×1
- hose - 5000157854×1
- FITTING-HOSE - 5000157852×1
- PLUG-VENT - 5000216211×1
- nut - 5000158206×1
- nut - 5000157859×6
- GASKET-EXHAUST - 5000157858×1
