CRT48-35L-PS
CRT48-35L-PS Parts Diagrams
36 factory assemblies. Open one to see the drawing, every part number on it and what we charge for it.
Machine cpl./Front View
Machine cpl./Back View

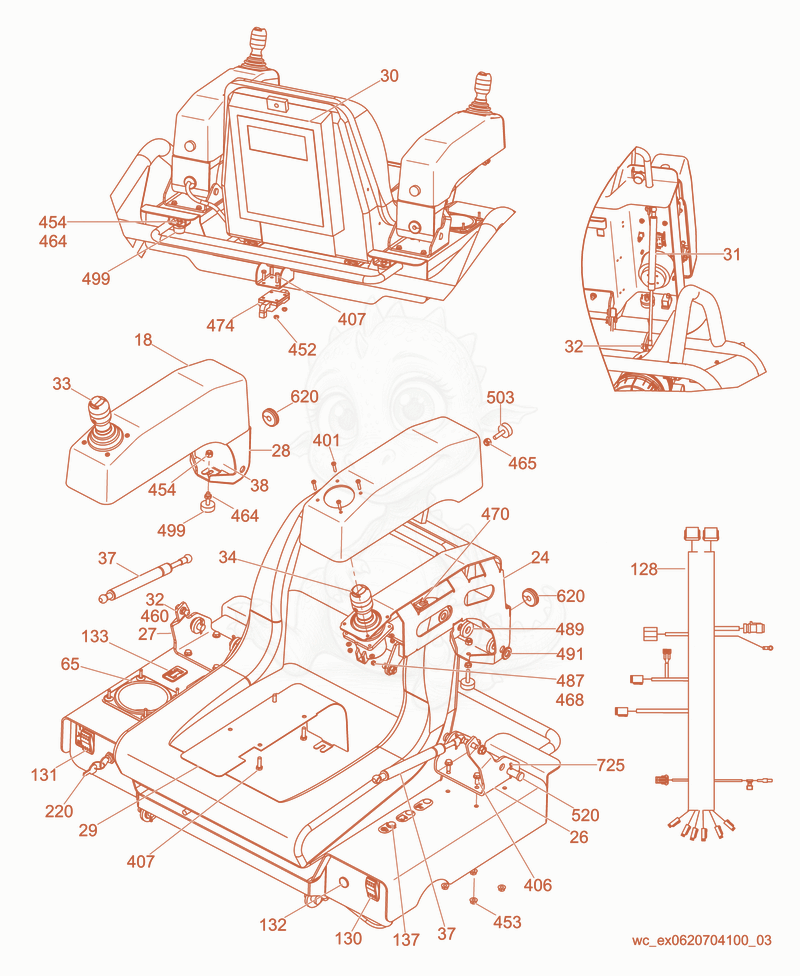

Seat cpl.
Tank cpl.- Panel cpl.
Pitch Control-Right/Left
Linkage cpl.

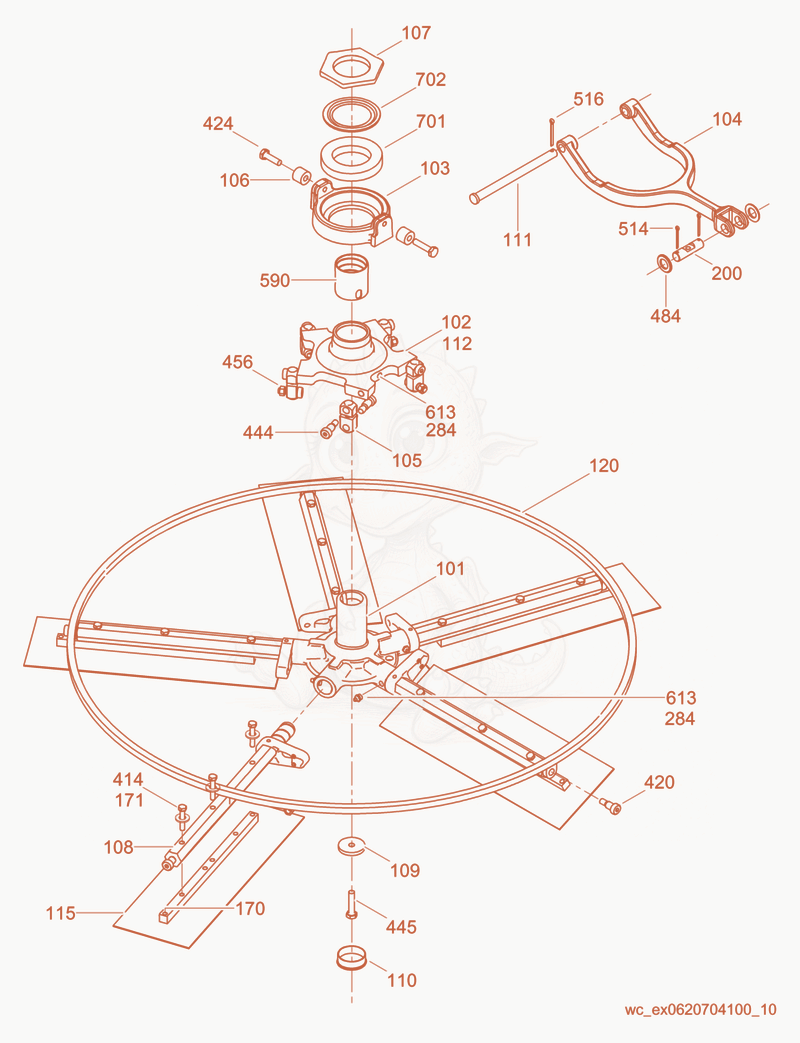

Blade Mechanism
Gearbox/Right
Gearbox/Left
Drive cpl.

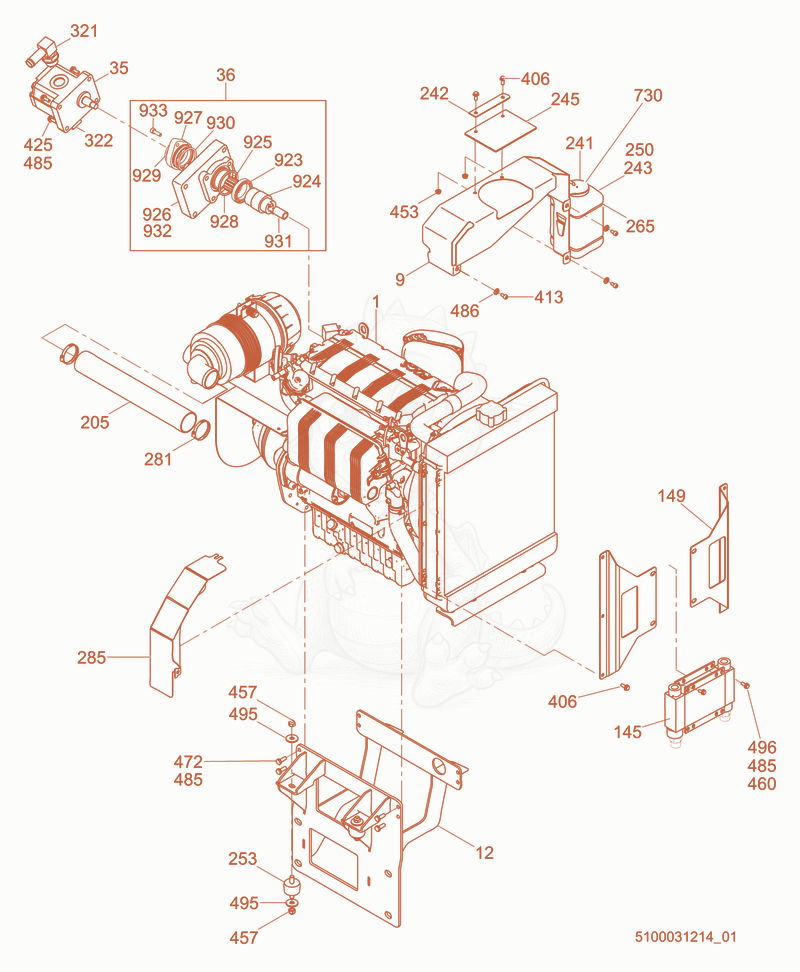

Engine Compartment
Engine Compartment

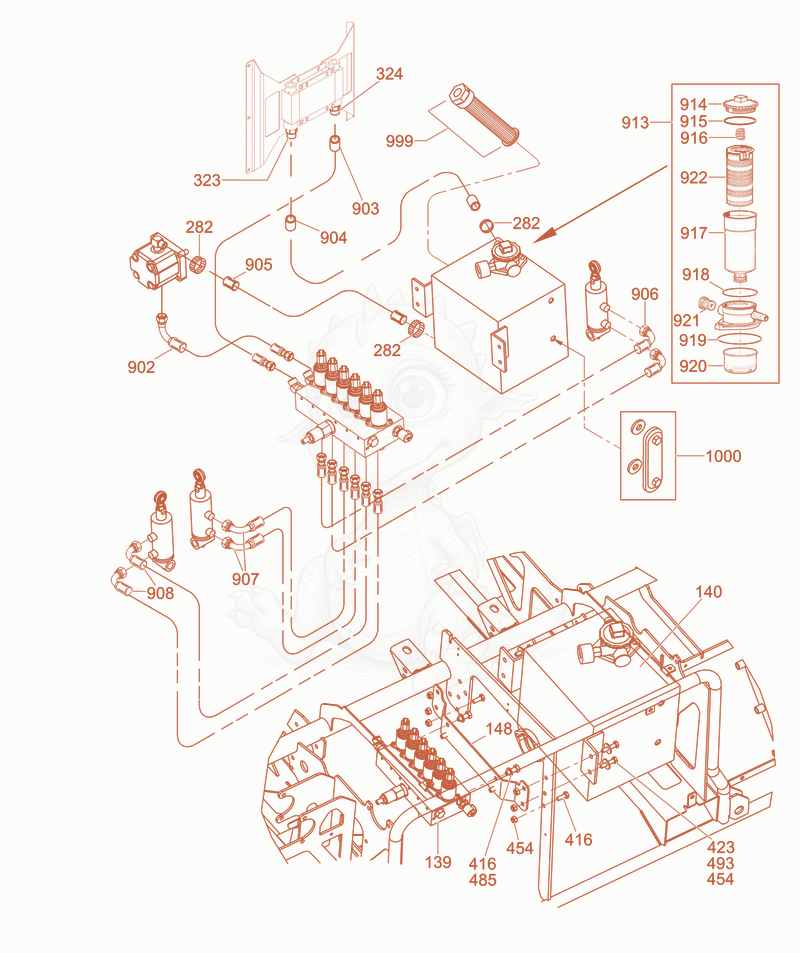

Hydraulic Piping

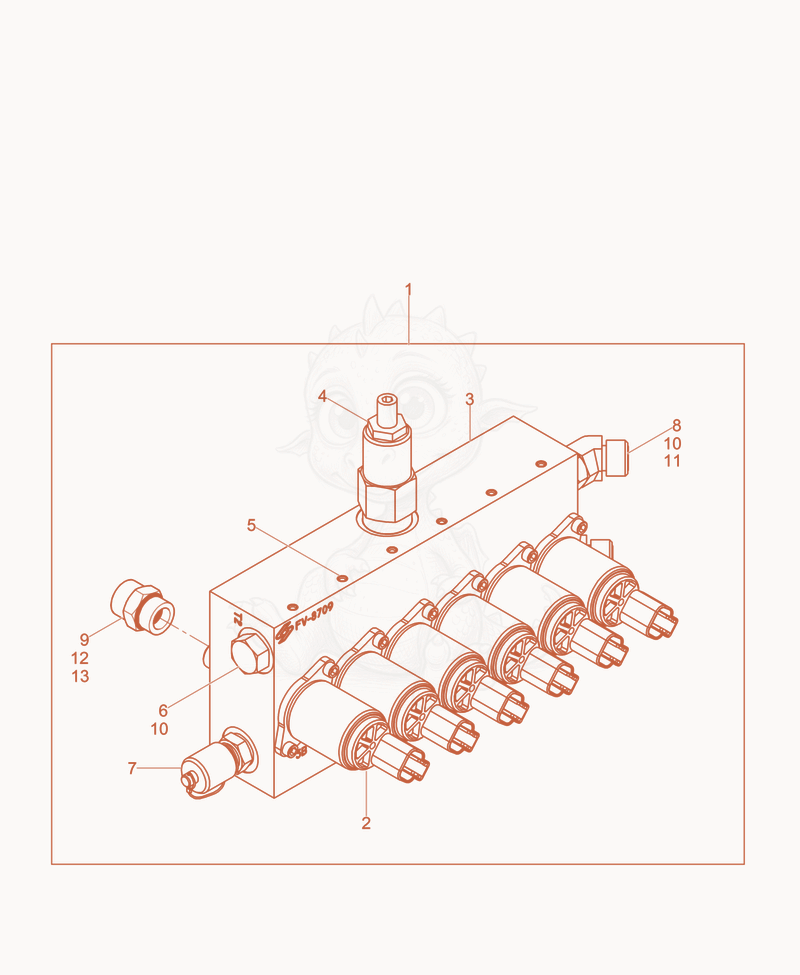

Hydraulic Manifold
Air Filter Assembly
Labels
Intake/Exhaust
Muffler
Piston/Crankshaft
Cylinder Head
Oil Pan
Injection Pump
Crankcase
Drive Pulley/Timing Belt
Fuel System
Governor
Radiator
Fan/Blower Housing/Water Pump
Thermostat/Housing
Lubrication System
Oil Pump
Flywheel/Ring Gear
Starter/Alternator
Electrical
Extra Fuel Device
