CRT48-37V

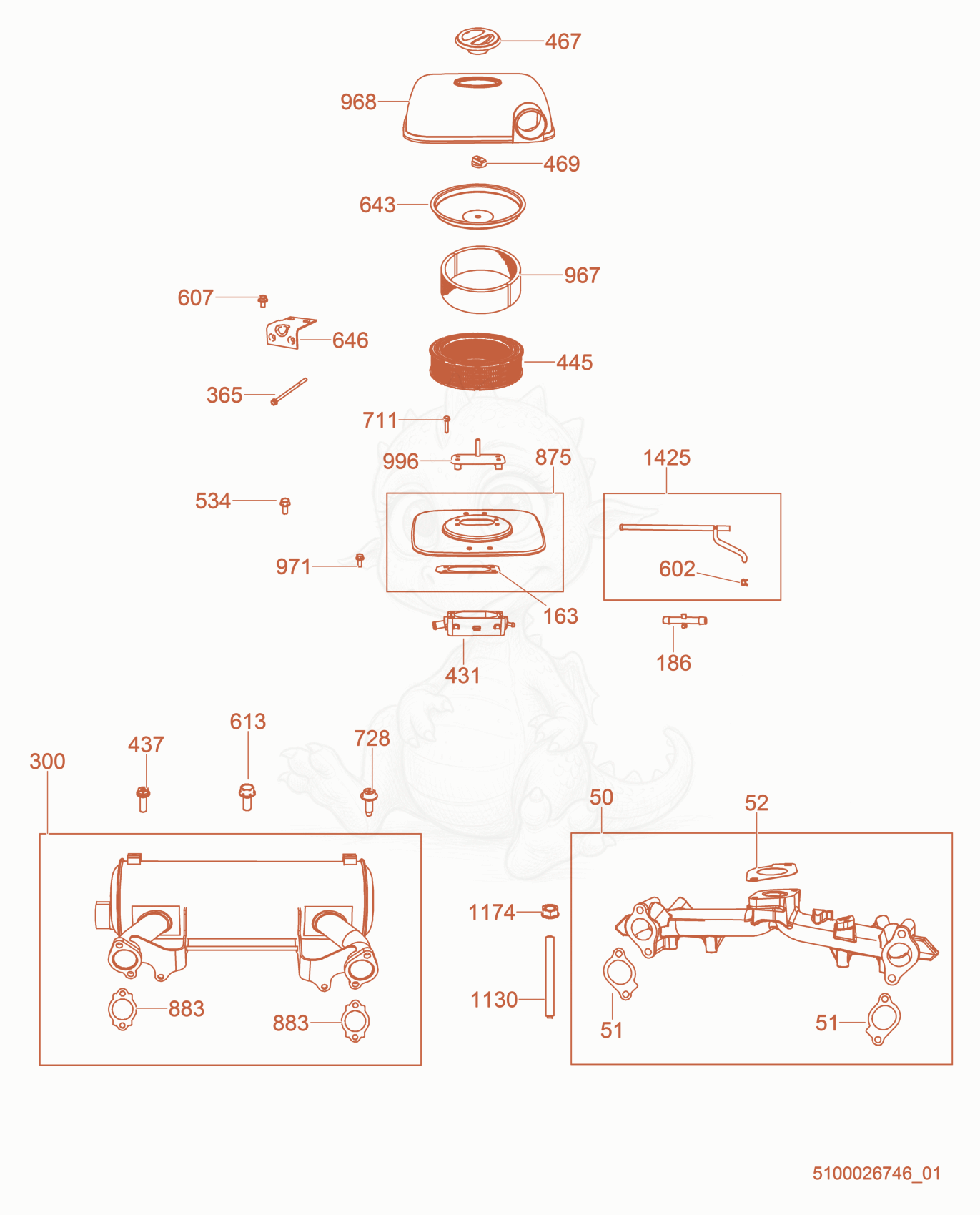

CRT48-37VEU Intake/Exhaust Diagram
- MANIFOLD-INTAKE - 5100026438×1
- GASKET-INTAKE - 5000216124×2
- Gasket-Intake (Intake Manifold) - 5100026439×1
- GASKET-AIR CLEANER - 5000216035×1
- FITTING-HOSE - 5200002304×1
- Muffler - 5100026465×1
- Screw - 5000216141×4
- ELBOW-INTAKE - 5100026483×1
- Screw (Exhaust Manifold) (M8x25mm) - 5100026485×4
- FILTER-AIR CLEANER CARTRIDGE - 5000216020×1
- 4675200020459Not stockedKnob×1
- KNOB-AIR CLEANER - 5100026486×1
- screw - 5000118487×4
- Clamp-Hose (Purge Line Hose) (Silver) - 5100026491×1
- Screw - 5000208216×4
- screw - 5000118487×4
- HOLDER-AIRCLEANER - 5200002312×1
- BRACE-AIR CLEANER - 5000216139×2
- Screw - 5000216037×4
- SCREW 1/4-20 X 3/8 W/FW,HEX - 5000084732×4
- AIR CLEANER-BASE - 5000216172×1
- GASKET-EXHAUST - 5000216077×2
- FILTER-PRE CLEANER - 5000216021×1
- COVER-AIR CLEANER - 5000216138×1
- screw - 5000118487×4
- 9965200020469Not stockedShield×1
- STUD - 5000216122×4
- Nut - 5000216150×4
- Hose-Purge Line - 5100026510×1
