CRT48-37V

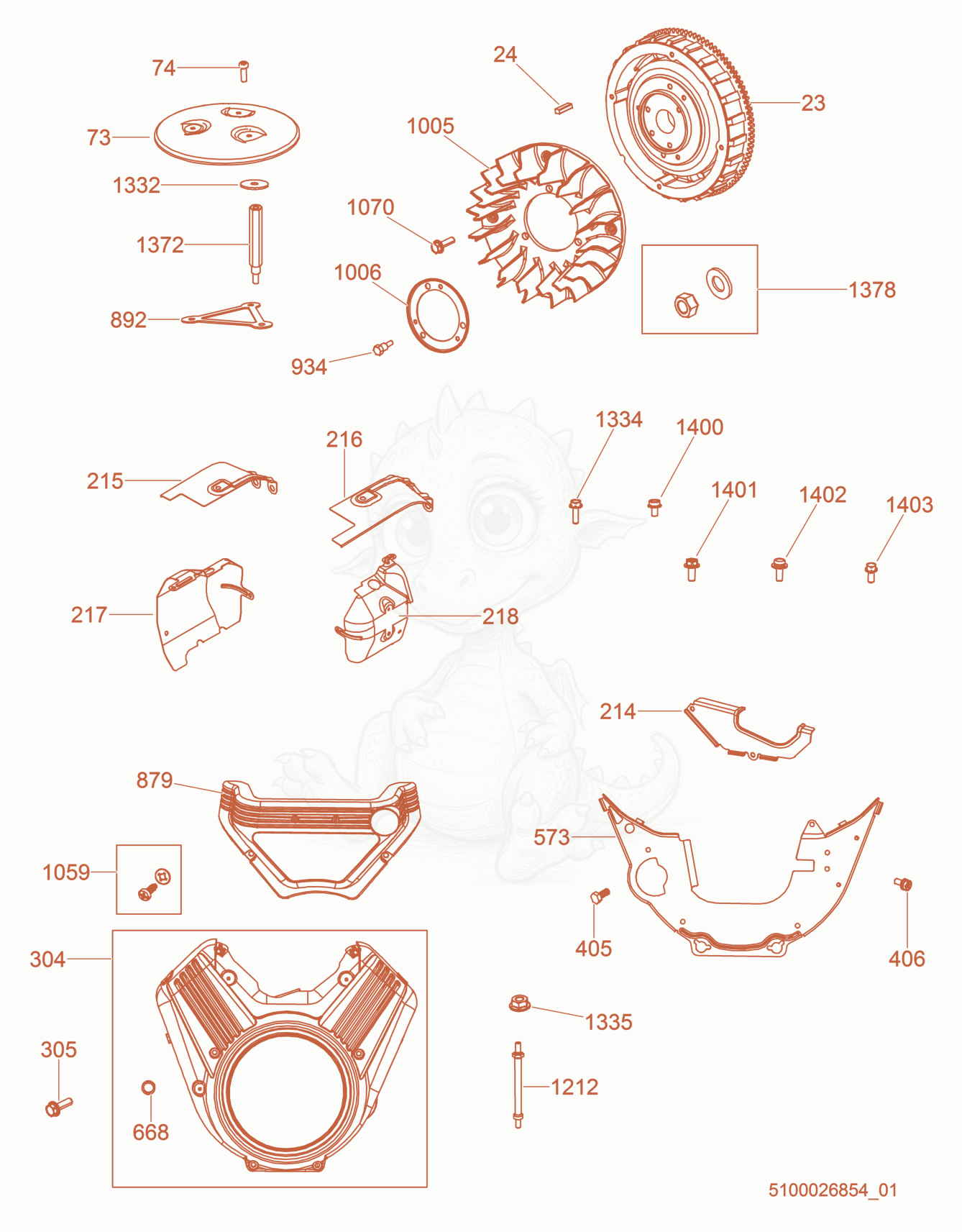

CRT48-37VEU Flywheel/Blower Housing Diagram
- Flywheel - 5100026436×1
- KEY-FLYWHEEL MOUNT,STEEL - 5200002585×1
- SCREEN-ROTATING - 5000216134×1
- Screw - 5000216089×3
- Guide-Air (Valley) - 5100026461×1
- Guide-Air (Cylinder #1) - 5100026459×1
- Guide-Air (Cylinder #2) - 5100026460×1
- GUIDE-AIR - 5000216082×1
- GUIDE-AIR - 5000216068×1
- Housing-Blower (Oil Cooler) - 5100026466×1
- Screw - 5000216041×4
- Screw - 5000208216×4
- SCREW (DEBRIS SCREEN GUARD) - 5000209184×4
- PLATE-BACK - 5200002621×1
- Spacer - 5000216149×3
- COVER-CARBURETOR - 5100026525×1
- BRACKET-SUPPORT - 5000216099×1
- Screw, Fan Retainer, M6x24mm - 5100026503×3
- FAN-FLYWHEEL - 5100026526×1
- FAN RETAINER - 5000216100×1
- SCREW W/WASHER - 5200002630×3
- Screw - 5000216041×3
- STUD - 5000216095×2
- Washer - 5000216090×3
- Screw - 5000216041×4
- NUT (REWIND STARTER) - 5000209185×2
- STUD - 5000216088×3
- 13785200020473Not stockedWasher w/nut×1
- Screw - 5000208216×4
- Screw - 5000160165×4
- Screw - 5000118430×4
- screw - 5000118487×4
