CRT60-66K

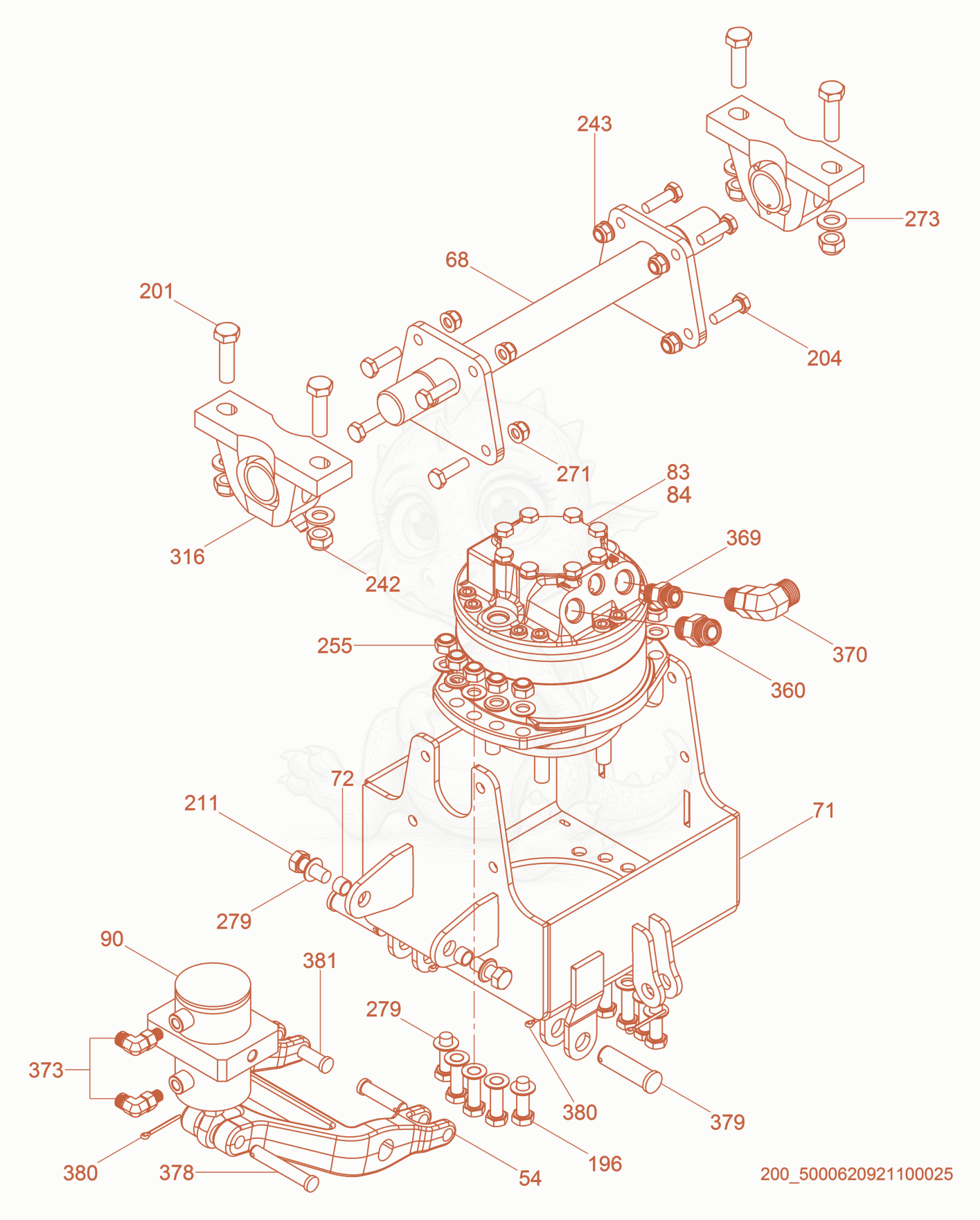

CRT60-66K Drive Motor Housing-Left Diagram
- YOKE-BLADE LIFT P-5000176420 - 5000178141×1
- PIVOT-LEFT WELDMENT P-5000176420 - 5000181084×1
- HOUSING-MOTOR,LEFT P-5000176420 - 5000185182×1
- Spacer Sleeve - 5200000148×2
- Motor-Drive - 5000183279×1
- SEAL KIT-HYD. MOTOR - 5200006739×1
- CYLINDER-HYDRAULIC PITCH - 5000187913×1
- SCREW M12 X 35 10.9,HX. - 5000017909×10
- SCREW M14 X 50 HX.HD. - 5000011501×4
- SCREW M10 X 35 HX.HD. - 5000011438×8
- SCREW 1/2-13 X 1.25 - 5000186619×2
- NUT-LOCK M14 CI 8,CL ZI - 5000117614×4
- NUT-LOCK M10 HEX. - 5000010365×8
- NUT M12,CLASS 10,MECH.ZN - 5000177630×6
- WASHER B10.5 FLAT - 5000010621×8
- WASHER M14 DIN A,CL ZIN - 5000117615×4
- WASHER 13 FLAT TP200 - 5000119289×10
- BEARING-DRIVESHAFT - 5000117341×2
- Fitting-Straight #10 ORF-#10 ORB - 5000192759×1
- FITTING #8 - 5000081583×1
- FITTING-90 DEG-#10 ORBX10 ORFS - 5000119813×1
- FITTING-HYD,SAE #4 90 ELBOW - 5000111285×2
- PIN-CLEVIS,1/2X3 - 5000187914×1
- PIN-CLEVIS,3/4 X 2 - 5000187915×2
- PIN-CLEVIS,3/4 X 2 - 5000187915×2
- PIN-COTTER 1/8 X 1-1/2 - 5000116751×5
- PIN-CLEVIS 1/2 X 2 - 5000116977×2
