CRT60-66K

CRT60-66K Engine cpl. Diagram

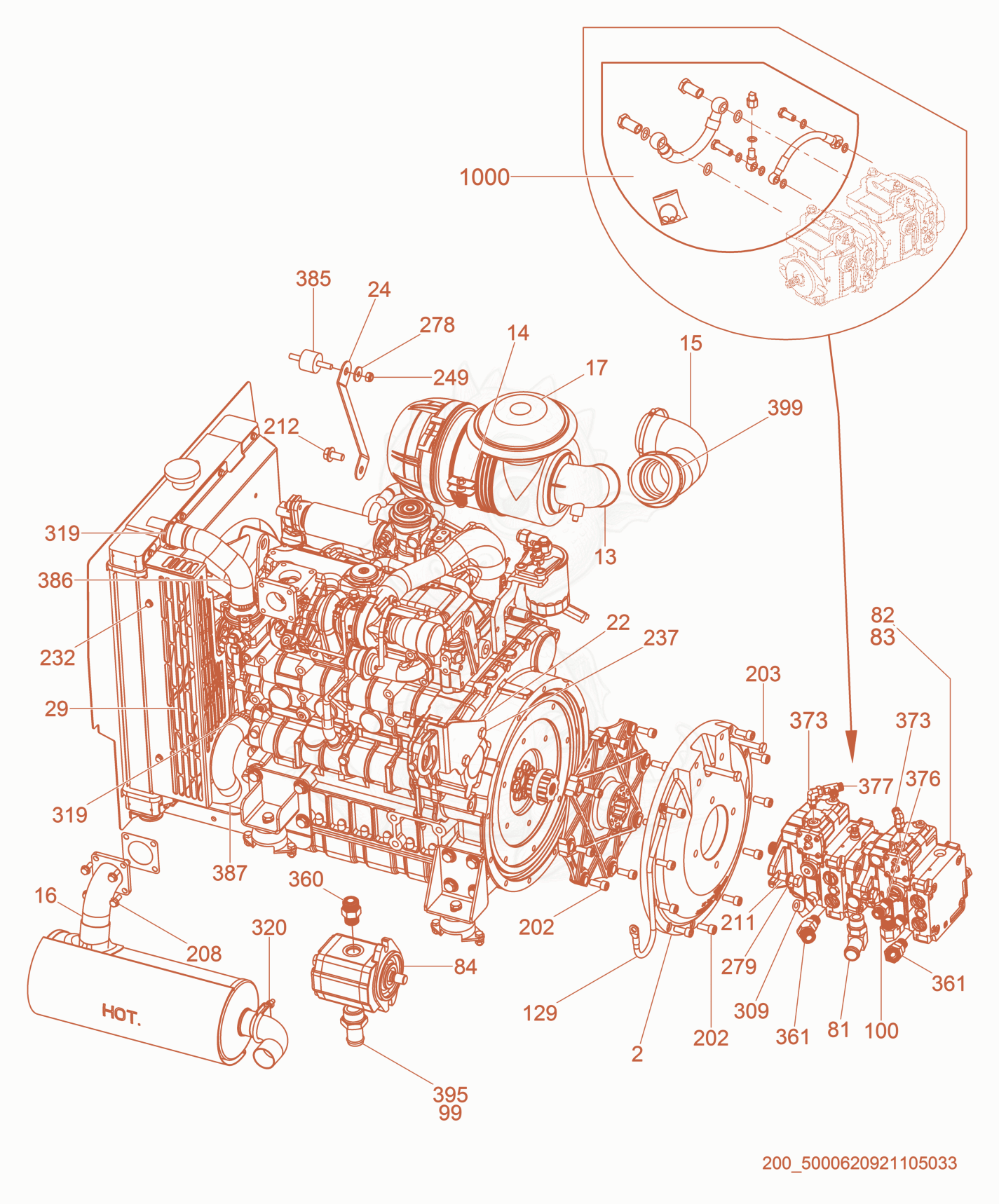

Exploded parts diagram of the Engine cpl. of a Wacker Neuson CRT60-66K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000183207
    $718.90
    PUMP PLATE-COUPLER - 5000183207×1
  • 135000193970
    $159.09
    Filter-Air Cleaner - 5000193970×1
  • 145000193971
    $49.83
    Bracket-Air Cleaner - 5000193971×1
  • 155200001704
    $28.14
    Hose-Air Cleaner - 5200001704×1
  • 165000194017
    $349.57
    Muffler - 5000194017×1
  • 175000193972
    $85.64
    Hood-Weather - 5000193972×1
  • 225000194033
    $21.79
    Bracket-Muffler Mount - 5000194033×1
  • 245000187580
    $144.53
    BRACKET-RADIATOR SUPPORT - 5000187580×2
  • 295200000074
    $372.88
    GUARD-FAN, KUBOTA - 5200000074×1
  • 815200003150
    $63.05
    Fitting-1 Hose Barb #12 Male ORB 90 d - 5200003150×1
  • 825100029017
    $5,829.16
    KIT-TANDEM PUMP,SERVICE - 5100029017×1
  • 825100021526
    $16,188.22
    PUMP-TANDEM HYDRO 21bar - 5100021526×1
  • 835200006737
    $645.34
    SEAL KIT-TANDEM PUMP - 5200006737×1
  • 845000183276
    $643.81
    PUMP-AUXILIARY GEAR - 5000183276×1
  • 995000028314
    $0.78
    CLAMP-THREADED,.81-1.5 - 5000028314×1
  • 1005000155051
    $14.42
    FITTING-ELBOW #8 ORB-#10 ORFS - 5000155051×1
  • 1295000118110
    $8.48
    CABLE-BATTERY,NEG,13 - 5000118110×1
  • 2025000187912
    $5.46
    SCREW-M10X1.25X25 SOC HD - 5000187912×18
  • 2035000194014
    $2.31
    Screw-M10 x 1.25 x 65,HHCS,Zinc - 5000194014×2
  • 2085000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
  • 2115000186619
    $0.39
    SCREW 1/2-13 X 1.25 - 5000186619×1
  • 2125000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×2
  • 2325000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×2
  • 2375000176455
    $0.79
    SCREW M12 X 1.25 X 20 HX.HD. - 5000176455×2
  • 2495000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 2785000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×4
  • 2795000119289
    $0.33
    WASHER 13 FLAT TP200 - 5000119289×1
  • 3095000086581
    $15.41
    FITTING-SDE45,08X08ST - 5000086581×1
  • 3195000119938
    $1.93
    CLAMP-HOSE,#32 - 5000119938×4
  • 3205000155302
    $5.34
    CLAMP 2 EXHAUST - 5000155302×1
  • 3605000192759
    $8.35
    Fitting-Straight #10 ORF-#10 ORB - 5000192759×1
  • 3615000192760
    $14.86
    Fitting-45 degree #10 ORFS - #8 ORB - 5000192760×2
  • 3735000111285
    $4.64
    FITTING-HYD,SAE #4 90 ELBOW - 5000111285×1
  • 3765000079875
    $4.36
    FITTING-STR.THD.CONNECTOR - 5000079875×1
  • 3775000111280
    $19.56
    FITTING-HYD,SAE#4 SWVL RUN TEE - 5000111280×1
  • 3855000150205
    $3.29
    SHOCKMOUNT 25X19-60SH,FORM A - 5000150205×2
  • 3865200001392
    $9.13
    Hose-Radiator, Top - 5200001392×1
  • 3875200001393
    $26.52
    Hose-Radiator, Bottom - 5200001393×1
  • 3955200001992
    $20.21
    Fitting-Hose Barb,1 - 5200001992×1
  • 3995000154345
    $4.00
    CLAMP-WORM DRIVE 57mm-108mm - 5000154345×2
  • 10005200014507Not stocked
    Hose Kit×1
