CT36-5A

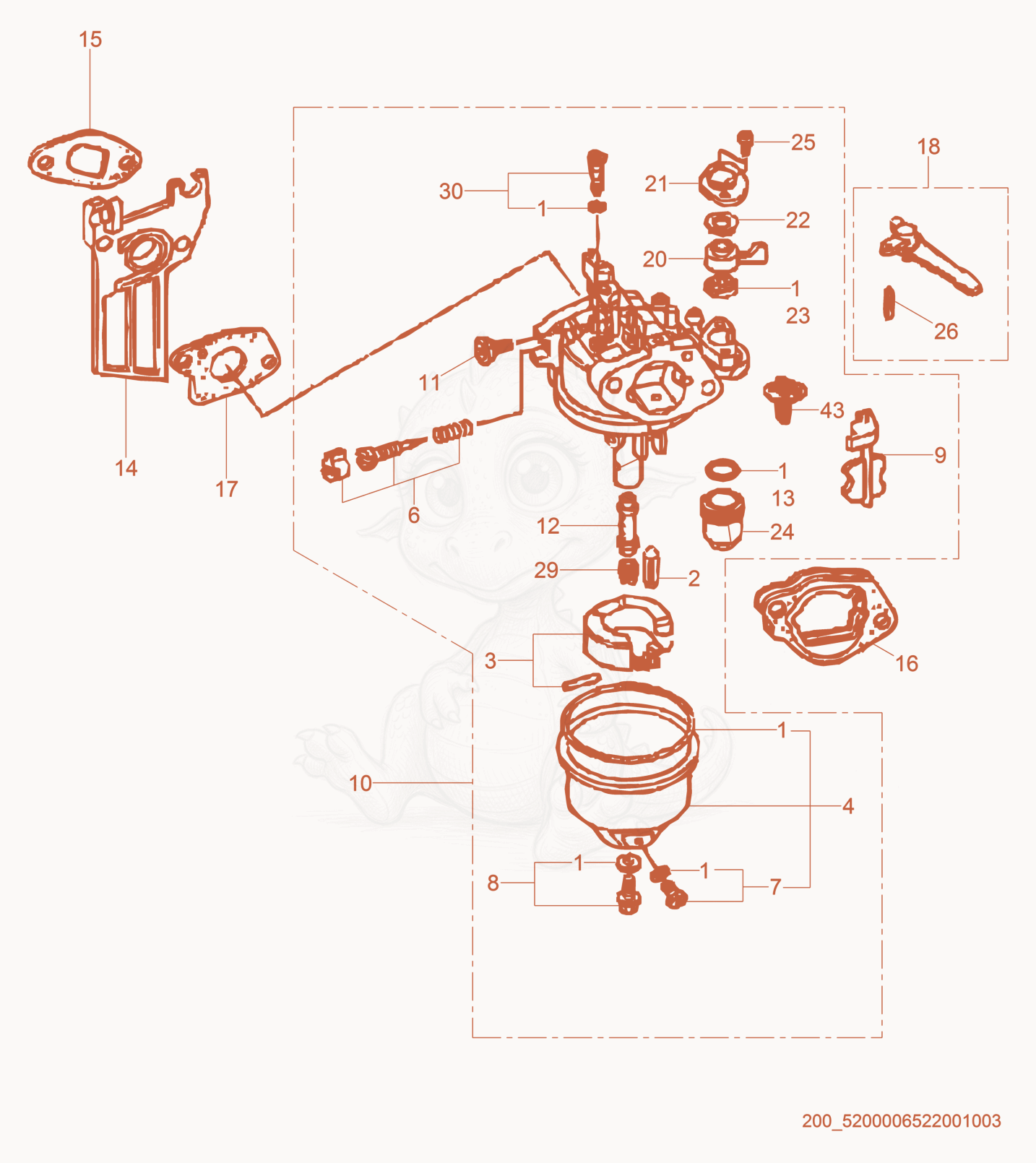

CT36-5AEU Carburetor cpl. Diagram

15000072781
$25.66
SET-CARBURETOR GASKETS - 5000072781×1
25000071022
$35.10
SET-CARBURETOR FLOAT VALVE - 5000071022×1
35000209764
$48.58
Float - 5000209764×1
45200006413
$27.60
SET-CARBURETOR FLOAT - 5200006413×1
65000089286
$25.15
SCREW-SET - 5000089286×1
75200000430
$13.04
Screw w/washer, carb. drain - 5200000430×1
85200000431
$6.91
Screw w/washer, carb. bowl - 5200000431×1
95200006414
$43.46
SET-ENGINE CHOKE - 5200006414×1
105200006415
$94.22
CARBURETOR COMPLETE - 5200006415×1
115000071018
$22.04
SCREW-THROTTLE STOP - 5000071018×1
125200006416
$23.54
JET-NOZZLE - 5200006416×1
135000071024
$7.73
GASKET-FUEL STRAINER CUP - 5000071024×1
145200006417
$61.35
INSULATOR - 5200006417×1
155000082009
$4.30
GASKET - 5000082009×1
165000071015
$10.79
SPACER - 5000071015×1
175000081762
$2.85
GASKET - 5000081762×1
185000071013
$12.86
LEVER-CHOKE CONTROL - 5000071013×1
205000150266
$13.50
LEVER-FUEL VALVE - 5000150266×1
215000073269
$7.96
PLATE-FUEL VALVE SETTINGS - 5000073269×1
225000073270
$5.13
SPRING-FUEL LEVER - 5000073270×1
235000073272
$5.07
GASKET-FUEL VALVE LEVER - 5000073272×1
245000071023
$28.91
FILTER-FUEL STRAINER CUP - 5000071023×1
255000156674
$1.14
X-5000078550-SCREW 3X6,PAN - 5000156674×2
265000071014
$2.62
PIN 2 X 12MM,SPRING TYPE - 5000071014×1
295000207672
$19.86
JET-MAIN,#62 - 5000207672×1
295200006418
$13.25
JET-SIZE #65,MAIN - 5200006418×1
295200006419
$26.72
X-5000151042 JET-SIZE #68,MAIN - 5200006419×1
305000071016
$27.73
JET-SIZE #35,SET PILOT - 5000071016×1
435100000396
$9.32
Filter - 5100000396×1
