CT36BDT-TROWEL

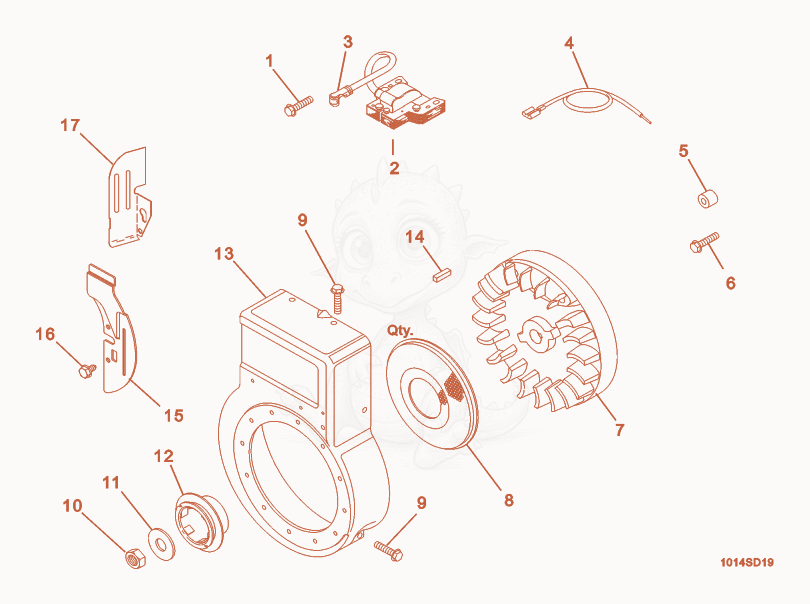

CT36BDT Blower Housing Diagram
- SCREW #10-24 X 7/8 W/FW,HX.HD. - 5000039318×2
- STATOR-MAGNETO,ASSEMBLY - 5000074801×1
- WIRE-ENGINE GROUND - 5000077007×1
- SPACER - 5000084041×2
- Screw - 5000084040×2
- FLYWHEEL - 5000039320×1
- Screen - 5000084021×1
- SCREW 1/4-20 X 1/2 GR5,HEX.HD. - 5000020557×4
- NUT-FLYWHEEL - 5000084035×1
- Washer - 5000020481×1
- Hub - 5000084036×1
- HOUSING-FLYWHEEL - 5000084010×1
- KEY-FLYWHEEL MOUNT,ALUMINUM - 5000053848×1
- Screw - 5000084003×2
