DPP8.8 Dual Pump Pack

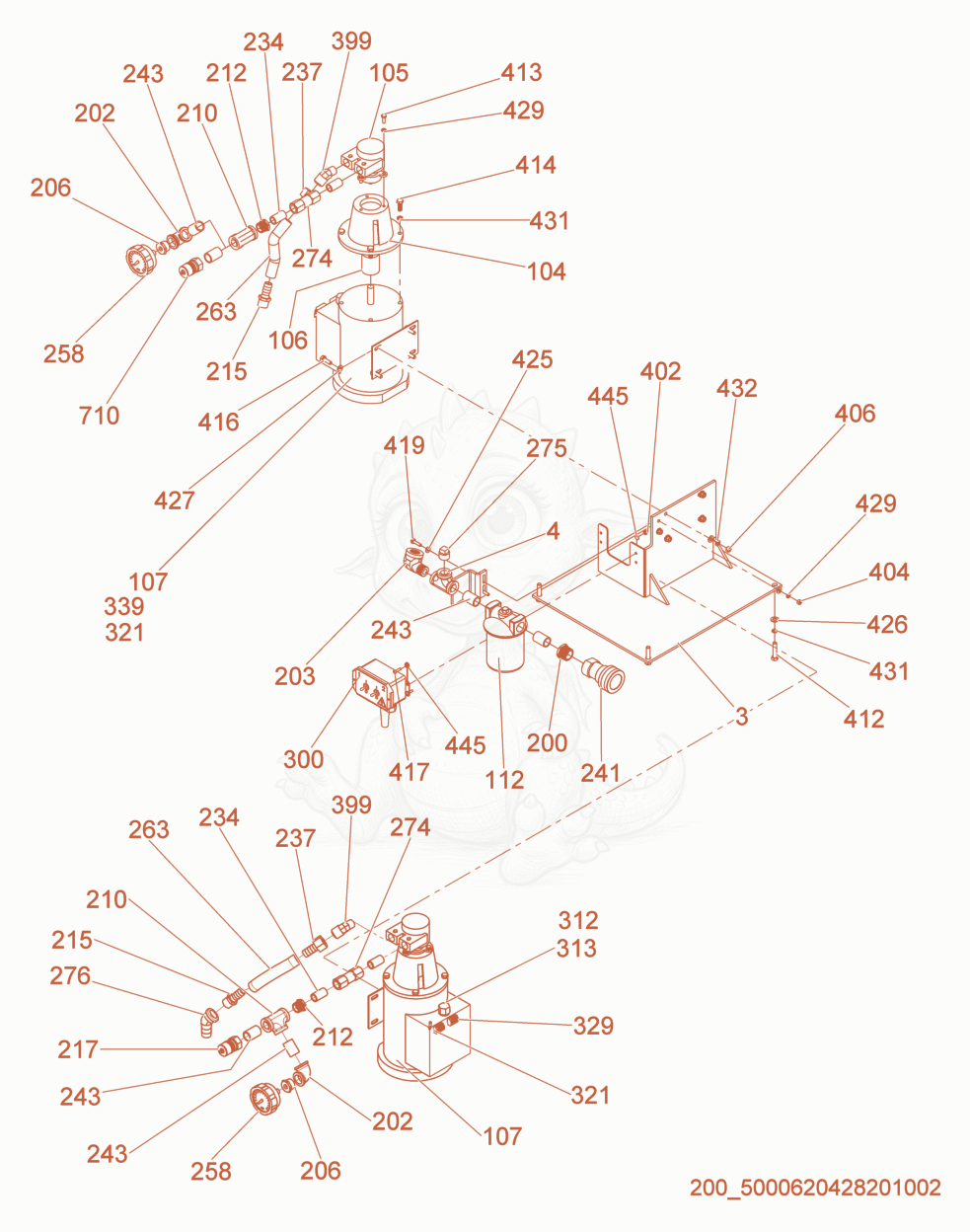

DPP8.8 Machine Components Diagram
- 35000182953Not stockedPump bracket×1
- 45000182954Not stockedBracket×1
- 1045000168110Not stockedAdapter×2
- 1055000168277Not stockedPump×2
- 1065000168111Not stockedCoupling×2
- 1075000166544Not stockedMotor×2
- 1125000168297Not stockedStrainer×1
- 2005000168011Not stockedBushing×1
- 2025000168027Not stockedElbow×2
- 2035000168029Not stockedElbow×1
- 2065000168035Not stockedBushing×2
- 2105000168056Not stockedTee fitting×2
- 2125000168060Not stockedBushing×2
- 2155000168144Not stockedHose barb×2
- 2175000168214Not stockedQuick disconnect coupling×2
- 2345000168353Not stockedNipple fitting×4
- 2375000168370Not stockedHose barb×2
- 2415000168384Not stockedQuick coupler×1
- 2435000168390Not stockedNipple fitting×6
- 2585000168708Not stockedGauge-pressure×2
- 2635000169406Not stockedHose×2
- 2745000168351Not stockedCheck valve×2
- 2755000168026Not stockedElbow×1
- 3005000172381Not stockedControl panel cpl.×1
- 3125000166458Not stockedCord grip×2
- 3135000166459Not stockedLock nut×2
- 3215000166511Not stockedTerminal×2
- 3395000166813Not stockedTerminal×4
- 3995000168409Not stockedAdapter×2
- 4025000167688Not stockedNut×4
- 4045000167690Not stockedNut×2
- 4065000167692Not stockedNut×4
- 4125000167718Not stockedBolt×4
- 4135000167704Not stockedBolt×6
- 4145000167705Not stockedBolt×8
- 4165000167708Not stockedBolt×4
- 4175000167709Not stockedScrew×4
- 4195000167721Not stockedBolt×2
- 4255000167729Not stockedFlat washer×2
- 4265000167730Not stockedFlat washer×4
- 4275000167731Not stockedFlat washer×8
- 4295000167733Not stockedLock washer×8
- 4315000167735Not stockedLock washer×10
- 4325000167736Not stockedLock washer×4
- 4455000167788Not stockedFlat washer×8
