Vibration Plate DPS 3060 WNA

DPS3060 Exciter cpl. Diagram

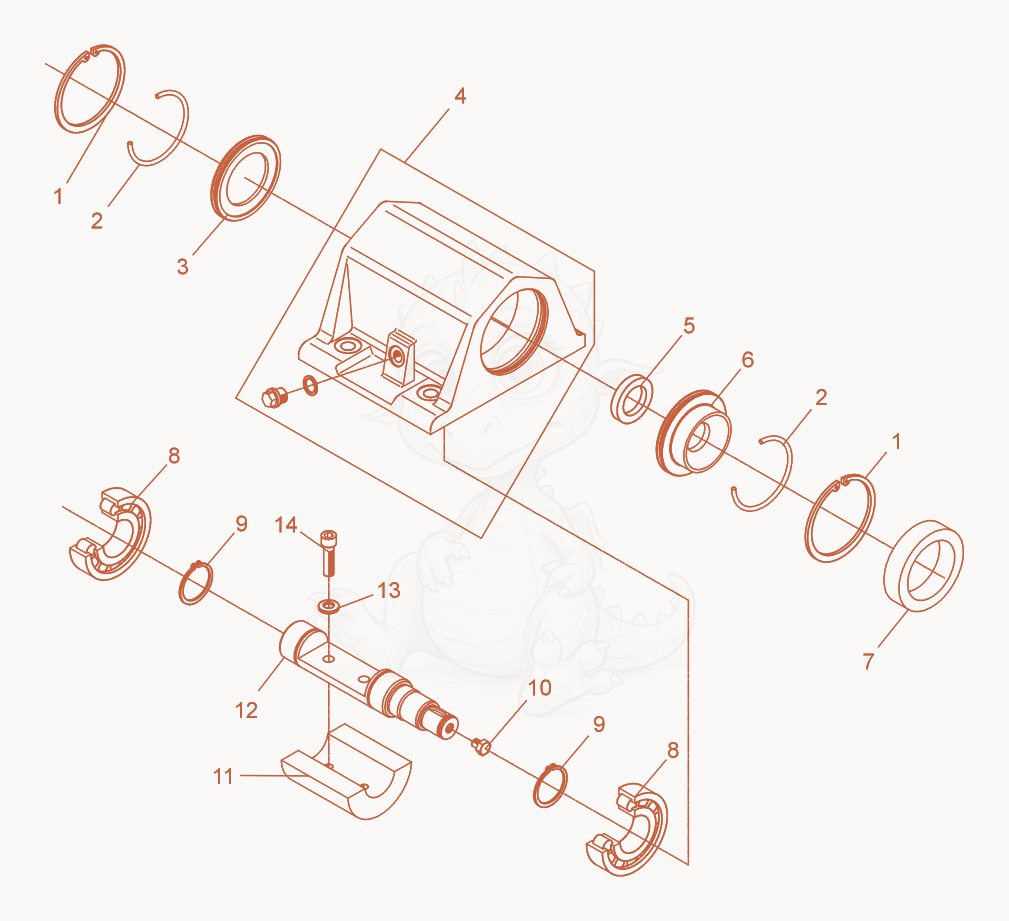

Exploded parts diagram of the Exciter cpl. of a Wacker Neuson DPS3060, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15002004854
    $4.69
    RET.RING-INT 110MMX4MM, - 5002004854×2
  • 25002001854
    $3.45
    O-RING 88 X 4.5-70 Sh - 5002001854×2
  • 35000058325Not stocked
    Cover×1
  • 45000032659Not stocked
    Exciter housing×1
  • 55000044635
    $10.26
    SEAL-SHAFT 40 X 60 X 10,4B - 5000044635×1
  • 65000033171
    $422.72
    Cover - 5000033171×1
  • 75000033172
    $40.12
    SEAL-RING,NYLON,LARGE - 5000033172×1
  • 85000066166
    $262.47
    BEARING-CYL.ROLLER,NJ310 - 5000066166×2
  • 95002006113
    $1.14
    RET.RING-EXT 50MMX2MM, - 5002006113×2
  • 105001103030
    $3.74
    SCREW - 5001103030×1
  • 115000069795Not stocked
    Eccentric weight×1
  • 125000069793Not stocked
    Eccentric shaft×1
  • 135000021465
    $2.70
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×2
  • 145000049203
    $8.43
    SCREW M12X45 SC.H.GR10.9,PLAIN - 5000049203×2
  • 155000017539Not stocked
    Plug (threaded)×1
  • 165000019156
    $0.48
    SEAL-RING 18 X 24 - 5000019156×1
