DPU 3050H

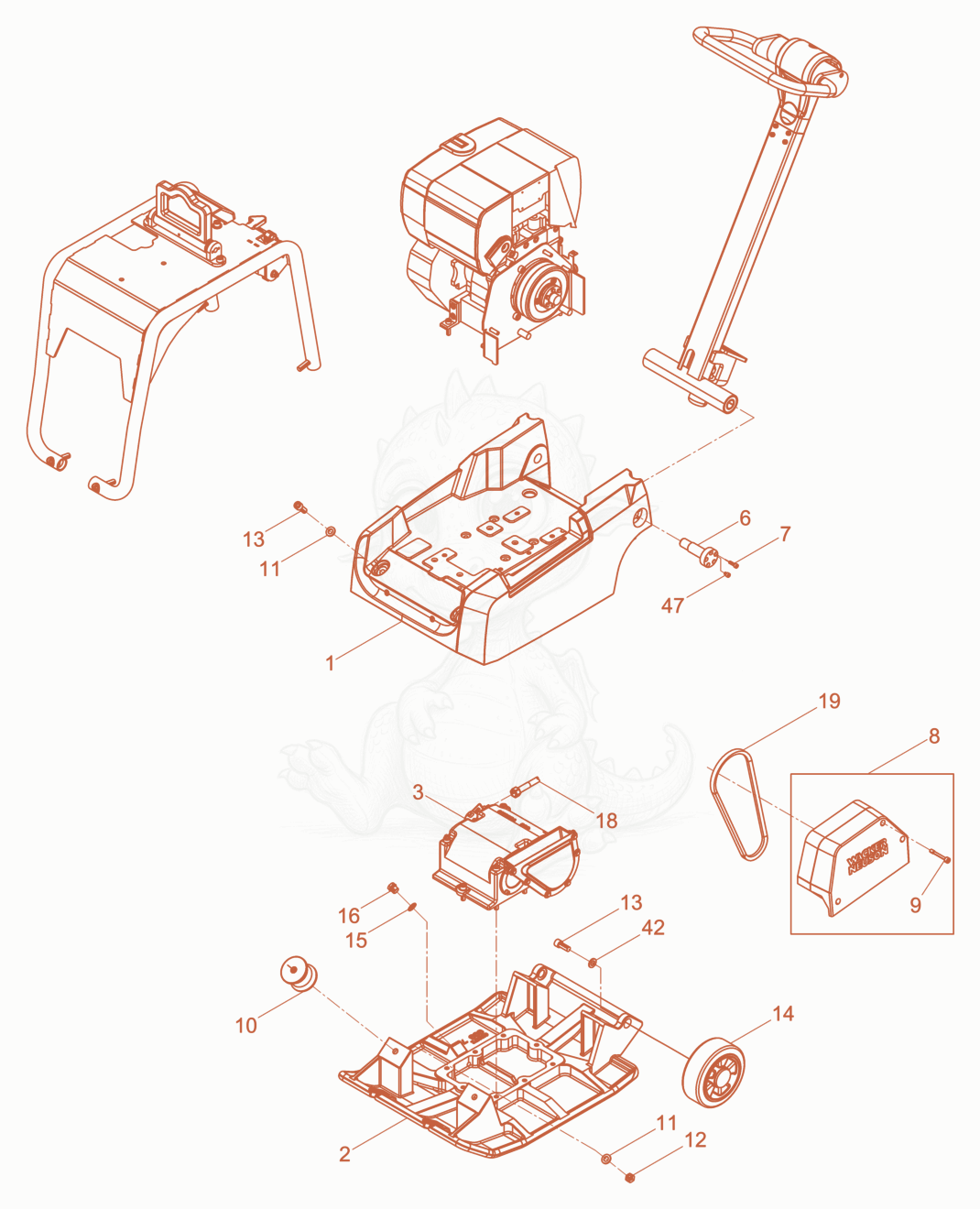

DPU3050H Vibration Plate Diagram

Exploded parts diagram of the Vibration Plate of a Wacker Neuson DPU3050H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000125955
    $2,652.62
    BASEPLATE-UPPER MASS,BPU3050 - 5000125955×1
  • 25000126173
    $2,115.91
    BASEPLATE-BPU3050 - 5000126173×1
  • 35000220479Not stocked
    Exciter cpl.×1
  • 65000204120
    $73.71
    axle - 5000204120×2
  • 75000011551
    $0.20
    SCREW M6 X 20 SOC.HD. - 5000011551×8
  • 85100002781
    $231.00
    Belt guard x-5100050071 - 5100002781×1
  • 95000216659
    $3.85
    SCREW-THIN SHANK END - 5000216659×3
  • 105000125931
    $33.98
    shockmount - 5000125931×4
  • 115000010620
    $0.26
    WASHER B13 FLAT - 5000010620×8
  • 125000010884
    $0.26
    NUT M12 8,HEX - 5000010884×4
  • 135000011529
    $0.84
    SCREW M12 X 30 SOC.HD - 5000011529×6
  • 145000125927
    $156.93
    WHEEL - 5000125927×2
  • 155000014968
    $1.73
    SEAL-RING 16.7 X 24 X 1.5 - 5000014968×1
  • 165000011034
    $14.99
    PLUG M16 HX.HD. - 5000011034×1
  • 185000125357
    $71.60
    HOSE-HYDRAULIC - 5000125357×1
  • 195000125933
    $18.88
    V-BELT,BPU2540,XPA 850 LW FO-Z - 5000125933×1
  • 425000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×2
  • 475000014425
    $2.06
    SCREW M6 X 8 SOC.HD. - 5000014425×2
