Vibration Plate DPU 4045 H

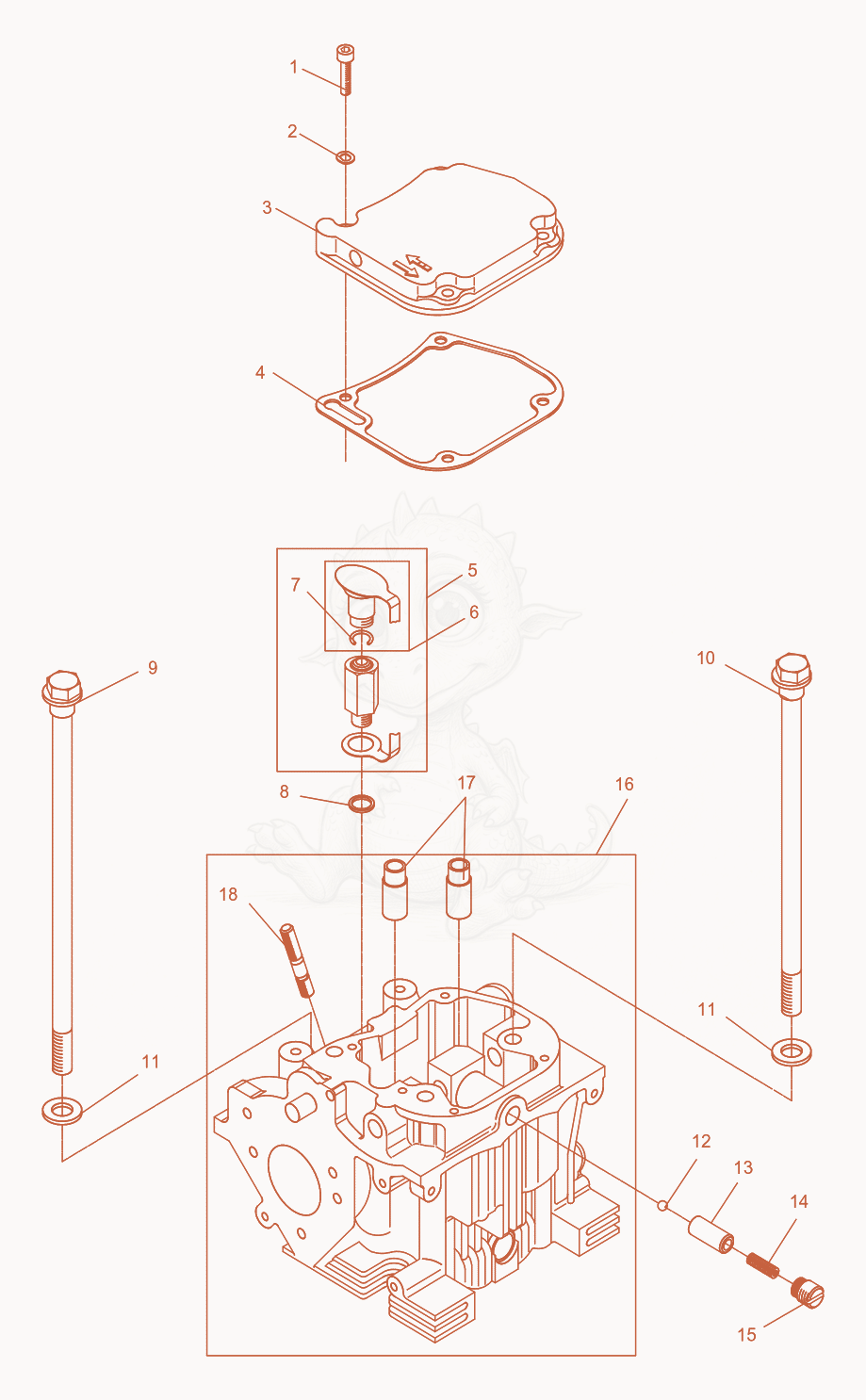

DPU4045H Dosing Device-Cylinder Head Diagram
- SCREW M6 X 25 SOC.HD. - 5000011550×4
- WASHER-LOCK A6 - 5000012971×4
- COVER-VALVE - 5000098444×1
- GASKET-COVER - 5000098445×1
- PRIMER-FUEL - 5000102468×1
- PLUG - 5000102469×1
- O-RING 12 X 2-70 Sh - 5000014398×2
- SEAL-RING 12 X 15.5 - 5000013186×1
- BOLT-CYLINDER HEAD - 5000104363×2
- BOLT-CYLINDER HEAD - 5000104364×2
- Washer - 5000104365×4
- Ball - 5000066801×1
- BUSHING - 5000094886×1
- Spring - 5000094887×1
- Screw - 5000094888×1
- HEAD-CYLINDER - 5000126915×1
- GUIDE-VALVE - 5000126916×2
- STUD M8 X 40 - 5000013518×1
