V.Plate DPU 4045Hap

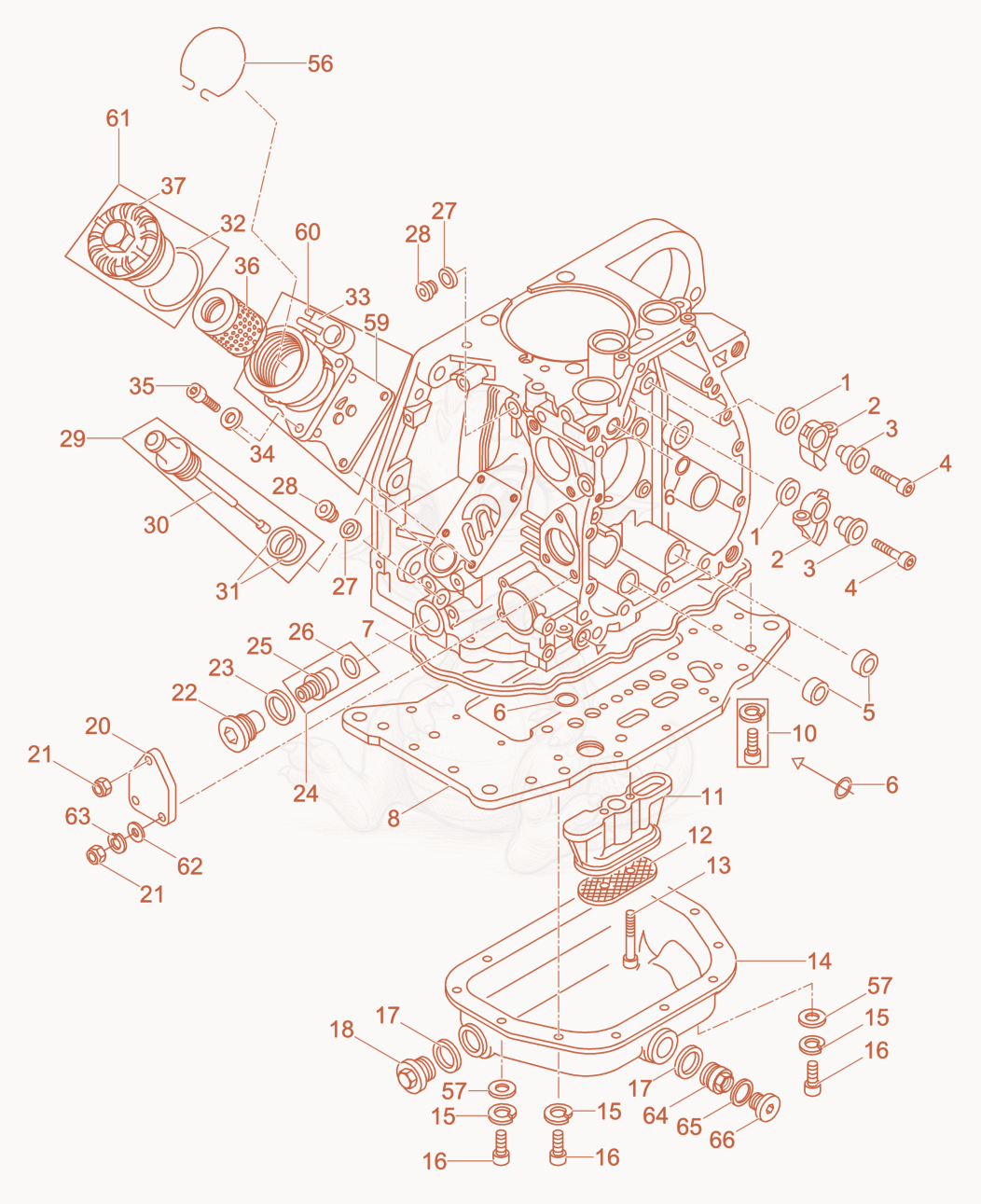

DPU4045H Crankcase cpl. Diagram
- Washer - 5000104365×2
- LEVER-SLIDING - 5000094937×2
- SHAFT-SPINDLE,CAM FOLLOWER - 5000094936×2
- SCREW-SOCKET HD M6 X 30 - 5000217112×2
- WASHER-SEALING RING - 5000094935×2
- O-Ring - 5000094934×3
- GASKET - 5000094952×1
- Plate - 5000104403×1
- SCREW-ALLEN,M8 X 25,8.8 - 5000202463×22
- HOUSING-VACUUM - 5000104404×1
- STRAINER - 5000094955×1
- SCREW-M6 X 30,8.8 - 5000202423×2
- Oil Pan - 5000104405×1
- WASHER-SPRING 6 A3C - 5000151456×12
- SCREW-ALLEN,M6 X 10,8.8 - 5000202450×12
- SEAL-OIL - 5000202416×2
- PLUG-SCREW AM22X1.5 - 5000094958×1
- 205000207539Not stockedCover×1
- NUT VM6 - 5000129021×3
- PLUG-SCREW - 5000126921×1
- SEAL-RING A24 X 29 - 5000094948×1
- VALVE-OIL RELIEF - 5000226586×1
- O-RING 18X2 - 5000126922×1
- SEAL-RING A10 X 13.5,COPR - 5000071121×2
- SCREW M10X1 5.8 A3C - 5000151213×2
- Dipstick - 5000104398×1
- O-Ring - 5000094933×2
- GASKET-OIL FILTER MOUNT - 5000094928×1
- WASHER-SPRING, A6 - 5000151290×4
- SCREW-SOC.HD,M6 X 20,8.8 - 5000202437×4
- ELEMENT-OIL FILTER - 5000094930×1
- Spring - 5000104402×1
- WASHER-FLAT 6.4 - 5000151324×2
- Seal - 5000106559×1
- COVER - 5000094931×1
- WASHER-FLAT 6.4 - 5000151324×2
- WASHER-SPRING 6 A3C - 5000151456×2
- PLUG-SCREW - 5000104406×1
- SEAL-RING 14 X 18 - 5000012624×1
- SCREW - 5000207818×1
