V.Plate DPU 4045Hap

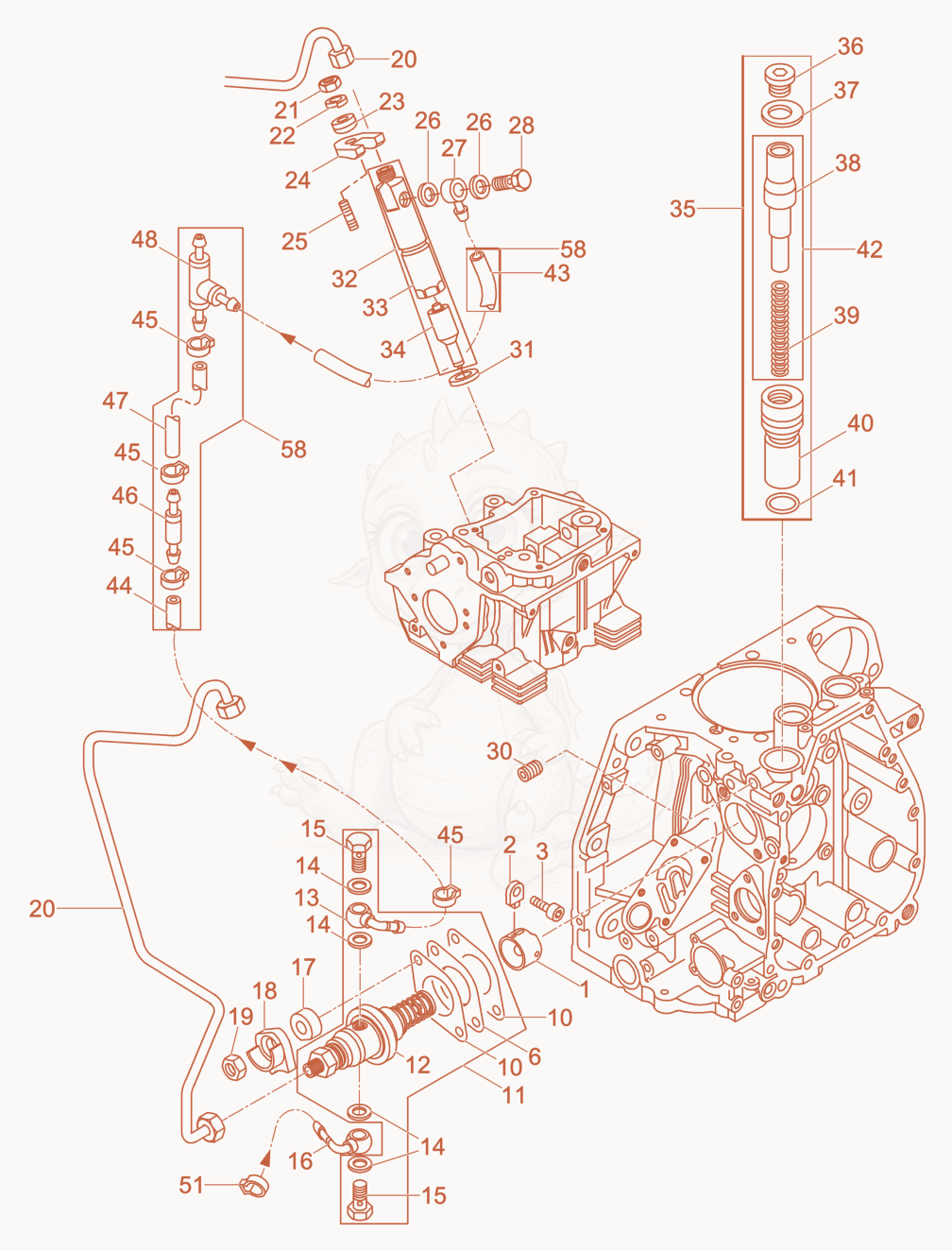

DPU4045H Injection Equipment Diagram
- TAPPET - 5000126525×1
- guide - 5000126526×1
- SCREW-ALLEN,M6 X 12 - 5000202421×1
- SHIM-0.3MM - 5000014482×1
- shim 0,6/42,2 - 5000207532×1
- shim 0,9/42,2 - 5000207533×1
- shim 1,2/42,2 - 5000207534×1
- GASKET,0.10 - 5000099419×2
- GASKET,0.20 - 5000207543×2
- GASKET,0.30 - 5000207544×2
- PUMP-INJECTION,EPA4 - 5000226588×1
- MOLDING-SEALING,47MM - 5000107809×1
- SEAL - 5000215374×4
- BOLT-BANJO - 5000210452×2
- FITTING-NIPPLE,SCREW-ON - 5000207525×1
- spacer - 5000207555×2
- HOOK-CLAW,TENSION - 5000207592×2
- NUT M8,HEX - 5000207805×2
- FUEL PIPE-PRESSURE - 5000207777×1
- NUT M8 8 A3C - 5000151379×1
- WASHER-SPRING - 5000151218×1
- DISC-BALL - 5000095021×1
- 245000207564Not stockedFlange×1
- STUD M8 X 40 - 5000201378×1
- WASHER - 5000128957×2
- FITTING - 5000095020×1
- SCREW-HOLLOW - 5000095019×1
- ROD-THRD M8X16-33H - 5000020348×1
- Gasket - 5000104411×1
- VALVE-INJECTION - 5000226597×1
- NOZZLE-EPA4 - 5000226599×1
- 355000095007Not stockedHousing×1
- PLUG-SCREW - 5000207601×1
- Washer - 5000095006×1
- spring - 5000207556×1
- housing - 5000207609×1
- O-RING 22X1.6 - 5000095008×1
- PRIMER-FUEL - 5000095009×1
- 435000095018Not stockedHose×1
- PIPE-FUEL 4.5 X 135 - 5000216517×1
- CLAMP-HOSE - 5000207586×7
- FITTING-STRAIGHT,BARBER,HOSE - 5000047977×1
- PIPE-FUEL 4.5 X 150 - 5000216520×1
- 485000099417Not stockedTee-fitting×1
- CLAMP-HOSE,12 - 5000226598×1
- FUEL LINE - 5000226603×1
