DS720-RAMMER,11 SHOE

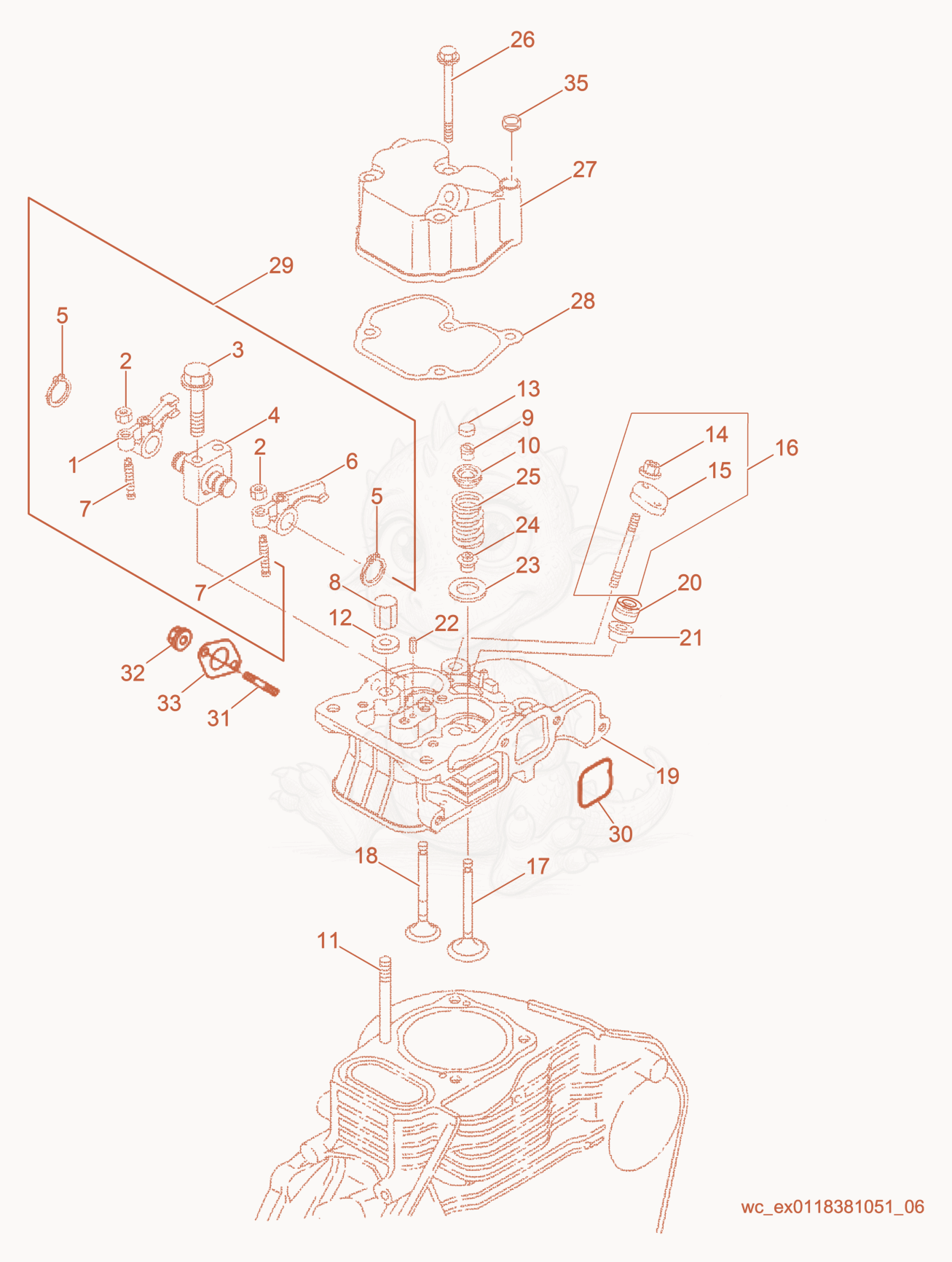

DS720 Cylinder Head Diagram
- ROCKER ARM-EXHAUST - 5000119701×1
- NUT-LOCK - 5000119736×2
- BOLT-M6 X 45 - 5000119741×1
- HOLDER-ROCKER ARM - 5000119702×1
- CLIP - 5000119737×2
- ROCKER ARM-INTAKE - 5000119703×1
- CONTROL-ADJUSTING SCREW - 5000096764×2
- cap - 5000119717×2
- 95000119734Not stockedHolder×2
- HOLDER-VALVE SPRINGS - 5000073627×2
- BOLT - 5000073597×2
- Washer - 5000073601×4
- Cap - 5000096765×1
- NUT-M6 - 5000119722×2
- 155000073642Not stockedHolder×1
- KIT-STUD - 5000215053×2
- VALVE-INTAKE - 5000119732×1
- VALVE-EXHAUST - 5000119733×1
- HEAD-CYLINDER - 5000119731×1
- SPACER-NOZZLE - 5200006708×1
- GASKET-NOZZLE - 5000119738×1
- PIN 4 X 8 - 5000073641×1
- Washer - 5000073634×2
- SEAL-ENGINE VALVES - 5000073631×2
- SPRING-ENGINE VALVES - 5000073626×2
- SCREW M6 X 55 HX.HD - 5000011332×2
- COVER-CYLINDER HEAD - 5000119704×1
- GASKET-CYLINDER HEAD TOP - 5000119705×1
- ROCKER ARM ASSEMBLY - 5000119735×1
- O-Ring - 5000154481×1
- STUD M8 X 18 - 5000073640×2
- NUT M8,FLANGE - 5000073665×2
- 335000073660Not stockedGasket×1
- Plug - 5000096758×1
