DS720-RAMMER,11 SHOE

DS720 Spring Cylinder cpl. Diagram

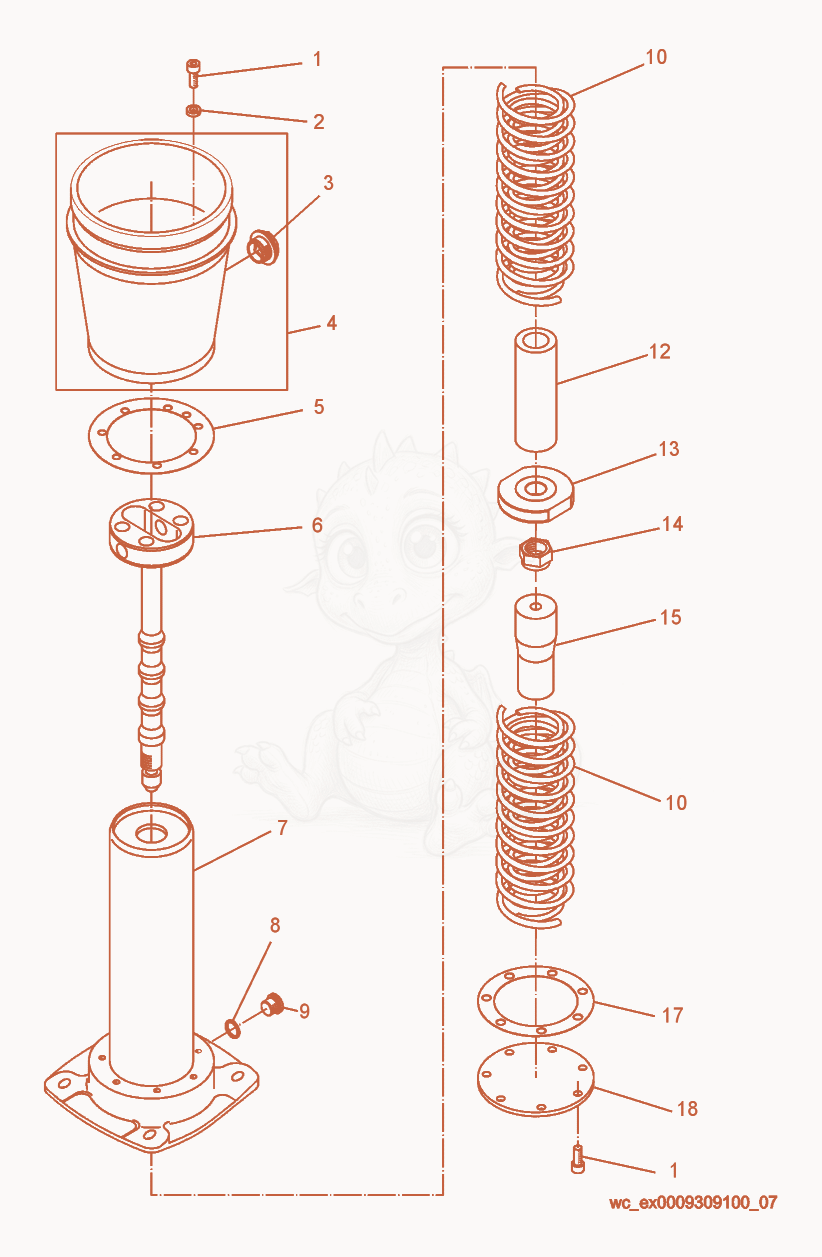

Exploded parts diagram of the Spring Cylinder cpl. of a Wacker Neuson DS720, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×14
  • 25000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×7
  • 35000013971
    $13.13
    SIGHTGLASS - 5000013971×1
  • 35000053829
    $6.29
    GASKET-SIGHT GLASS - 5000053829×1
  • 45000039800
    $107.88
    CASTING-PROTECTIVE PIPE X-5100032023 - 5000039800×1
  • 55000043204
    $9.14
    GASKET-PROTECTIVE PIPE - 5000043204×1
  • 65000110350
    $159.42
    RAM-HEAT TREATED X-5100038471 - 5000110350×1
  • 75000114080
    $568.38
    Spring cylinder - 5000114080×1
  • 85000012082
    $0.74
    SEAL-RING 16 X 20 - 5000012082×1
  • 95000011050
    $2.05
    PLUG M16 X 1.5 - 5000011050×1
  • 105000113843
    $127.80
    SET-PERCUSSION SPRING - 5000113843×2
  • 125000034442
    $17.86
    BUSHING-IMPACT,PLASTIC - 5000034442×1
  • 135000039795
    $9.87
    GUIDE-PERCUSSION PISTON - 5000039795×1
  • 145000083814
    $16.09
    NUT-LOCK M22X1.5,HX,NYL.INS.SP - 5000083814×1
  • 155000034601
    $22.77
    BUSHING-IMPACT,PLSTC. - 5000034601×1
  • 175000039757
    $26.47
    GASKET-SPRING CYLINDER LID - 5000039757×1
  • 185000114844
    $10.95
    COVER-SPRING CYLINDER LID - 5000114844×1
