DS720-RAMMER,13 PLASTIC SHOE

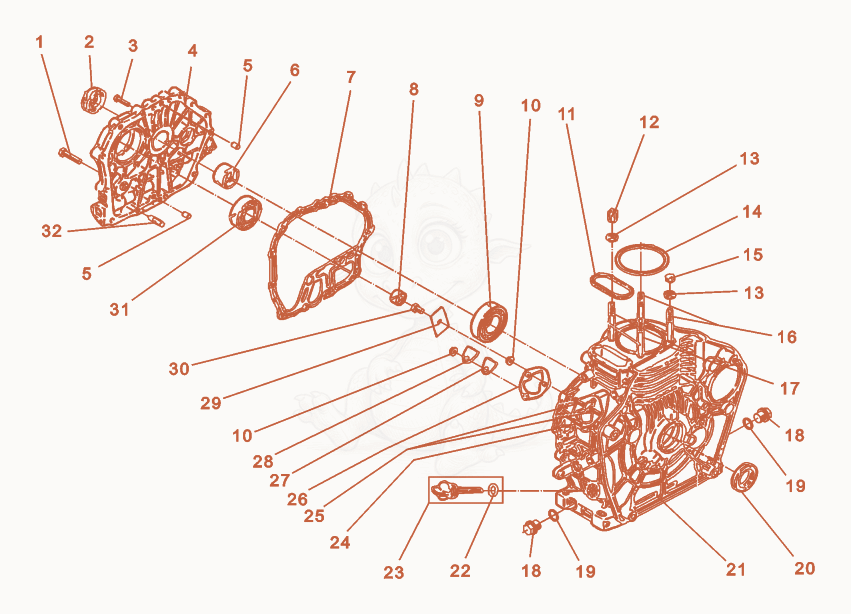

DS720 Crankcase cpl. Diagram
- SCREW M8 X 35 HX.HD. - 5000011455×1
- SEAL-SHAFT 25 X 41.2 X 8,4B - 5000073620×1
- SCREW M6 X 25 HX.HD. - 5000011469×14
- PIN-STRAIGHT - 5000096704×2
- BEARING-SLEEVE,30MM ID - 5000073619×1
- GASKET-HOUSING - 5000096707×1
- BEARING-NEEDLE ROLLER,152112 - 5000073621×1
- BEARING-DEEP GROOVE BALL - 5002001269×1
- NUT M6,BN860,FLANGED,ZINC PL. - 5000073617×3
- RING-RUBBER SEAL,RECT.X-SECT. - 5000073603×1
- 125000073600Not stockedNut×2
- Washer - 5000073601×4
- GASKET-CYLINDER HEAD - 5000073602×1
- SET-GASKET - 5000096724×1
- 155000073599Not stockedNut×2
- BOLT - 5000073598×2
- BOLT - 5000073597×2
- PLUG M16 HX.HD. - 5000011034×2
- SEAL-RING 16 X 20 - 5000012082×2
- SEAL-SHAFT - 5000096715×1
- Crankcase - 5000096716×1
- O-RING 18 X 2.2 (P-18) - 5000073609×1
- DIPSTICK - 5000096713×1
- STUD M6 X 18 - 5000013507×1
- STUD M6 X 22 - 5000013508×2
- SET-ENGINE SHIMS - 5000073610×1
- GASKET - 5000073612×1
- Cover - 5000073611×1
- 295000073618Not stockedHolder×1
- SCREW M8 X 12 HX.HD. - 5000012360×1
- BEARING-RADIAL BALL,6205 - 5000020313×1
- Pipe - 5000096706×1
