DS720-RAMMER,13 PLASTIC SHOE

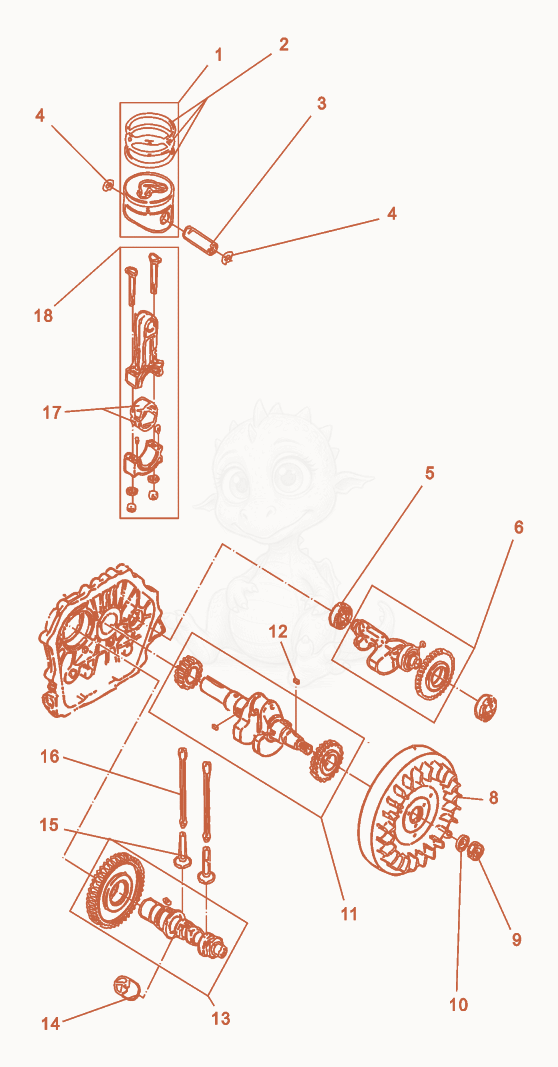

DS720 Crankshaft Diagram

Exploded parts diagram of the Crankshaft of a Wacker Neuson DS720, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000096725
    $152.61
    Piston - 5000096725×1
  • 15000087430
    $180.43
    PISTON-ASSEMBLY .25MM,O.S. - 5000087430×1
  • 15000087432
    $207.91
    PISTON-ASSEMBLY .50MM,O.S. - 5000087432×1
  • 25000073682
    $60.81
    SET-PISTON RINGS,3 PER - 5000073682×1
  • 25000087431
    $67.64
    SET-PISTON RING .25MM,O.S. - 5000087431×1
  • 25000087433
    $67.64
    SET-PISTON RING .50MM,O.S. - 5000087433×1
  • 35000096727
    $22.55
    PIN - 5000096727×1
  • 45002003749
    $0.36
    RET.RING-INT 19MMX1MM, - 5002003749×2
  • 55000078717
    $9.99
    BEARING-RADIAL BALL,6202 - 5000078717×2
  • 65000096730
    $135.67
    Shaft - 5000096730×1
  • 85000118363
    $240.49
    FAN-WHEEL - 5000118363×1
  • 95000073675
    $7.79
    NUT M16 X 1.5,HEX. - 5000073675×1
  • 105000073678
    $10.75
    Washer - 5000073678×1
  • 115000096731
    $483.15
    Crankshaft - 5000096731×1
  • 125000073670
    $3.47
    KEY 4 X 4 X 12 - 5000073670×1
  • 135000096736
    $374.48
    Camshaft - 5000096736×1
  • 145000119744
    $28.04
    tappet - 5000119744×1
  • 155000073671
    $25.94
    TAPPET-ENGINE VALVE LIFTER - 5000073671×2
  • 165000096737
    $14.61
    PUSHROD - 5000096737×2
  • 175000073689
    $18.11
    BEARING-JOURNAL - 5000073689×1
  • 175000087434
    $20.55
    ROD-BEARING .25MM,O.S. - 5000087434×1
  • 175000087435
    $20.55
    ROD-BEARING .50MM,O.S. - 5000087435×1
  • 185000153431
    $114.76
    CONNECTING ROD COMPLETE,STEEL - 5000153431×1
