DS720-RAMMER,13 PLASTIC SHOE

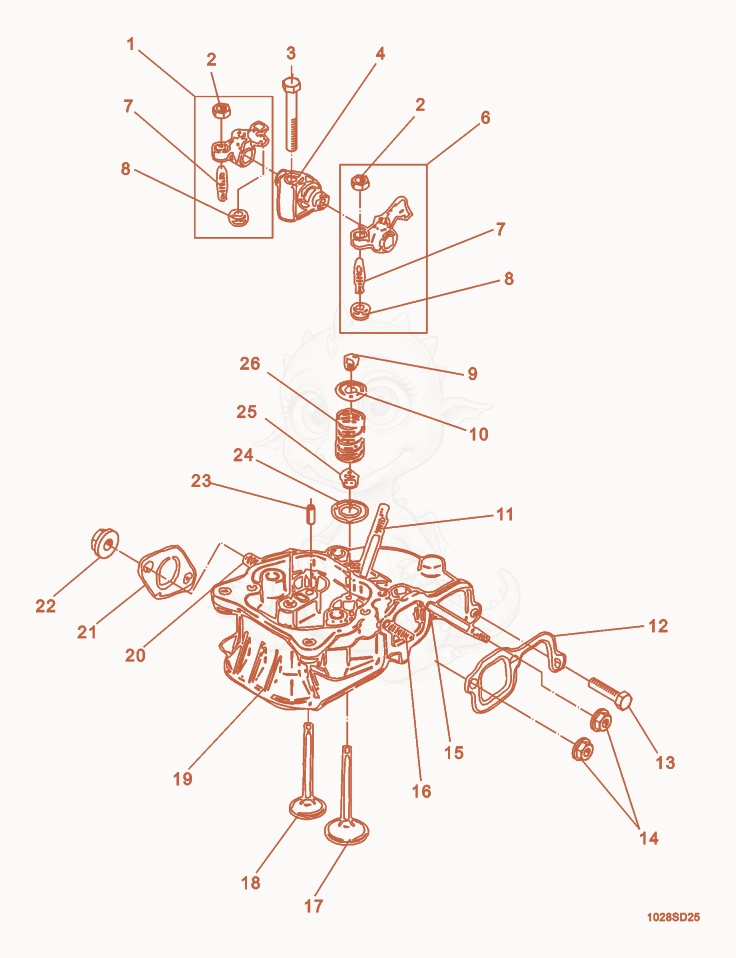

DS720 Cylinder Head Diagram
- Rocker arm outlet - 5000096762×1
- NUT M6 HEX,JAM - 5000010803×2
- SCREW M8 X 45 HX.HD. - 5000011342×1
- SUPPORT-ROCKER ARM - 5000073629×1
- Rocker arm inlet - 5000096763×1
- CONTROL-ADJUSTING SCREW - 5000096764×2
- Cap - 5000096765×2
- SET-VALVE CONES - 5000073628×2
- HOLDER-VALVE SPRINGS - 5000073627×2
- STUD M6 X 50 - 5000073636×2
- GASKET - 5000073651×1
- SCREW M6 X 25 HX.HD. - 5000011469×1
- NUT M6,BN860,FLANGED,ZINC PL. - 5000073617×2
- STUD M6 X 55 - 5000013512×1
- STUD M6 X 18 - 5000013507×1
- VALVE-INTAKE - 5000073624×1
- VALVE-OUTLET - 5000096772×1
- HEAD-ENGINE CYLINDER - 5000073623×1
- STUD M8 X 18 - 5000020343×1
- GASKET-MUFFLER - 5000210617×1
- NUT M8,FLANGE - 5000073665×2
- PIN 3 X 16 - 5000073648×1
- Washer - 5000073634×2
- SEAL-ENGINE VALVES - 5000073631×2
- SPRING-ENGINE VALVES - 5000073626×2
