DS720-RAMMER,13 PLASTIC SHOE

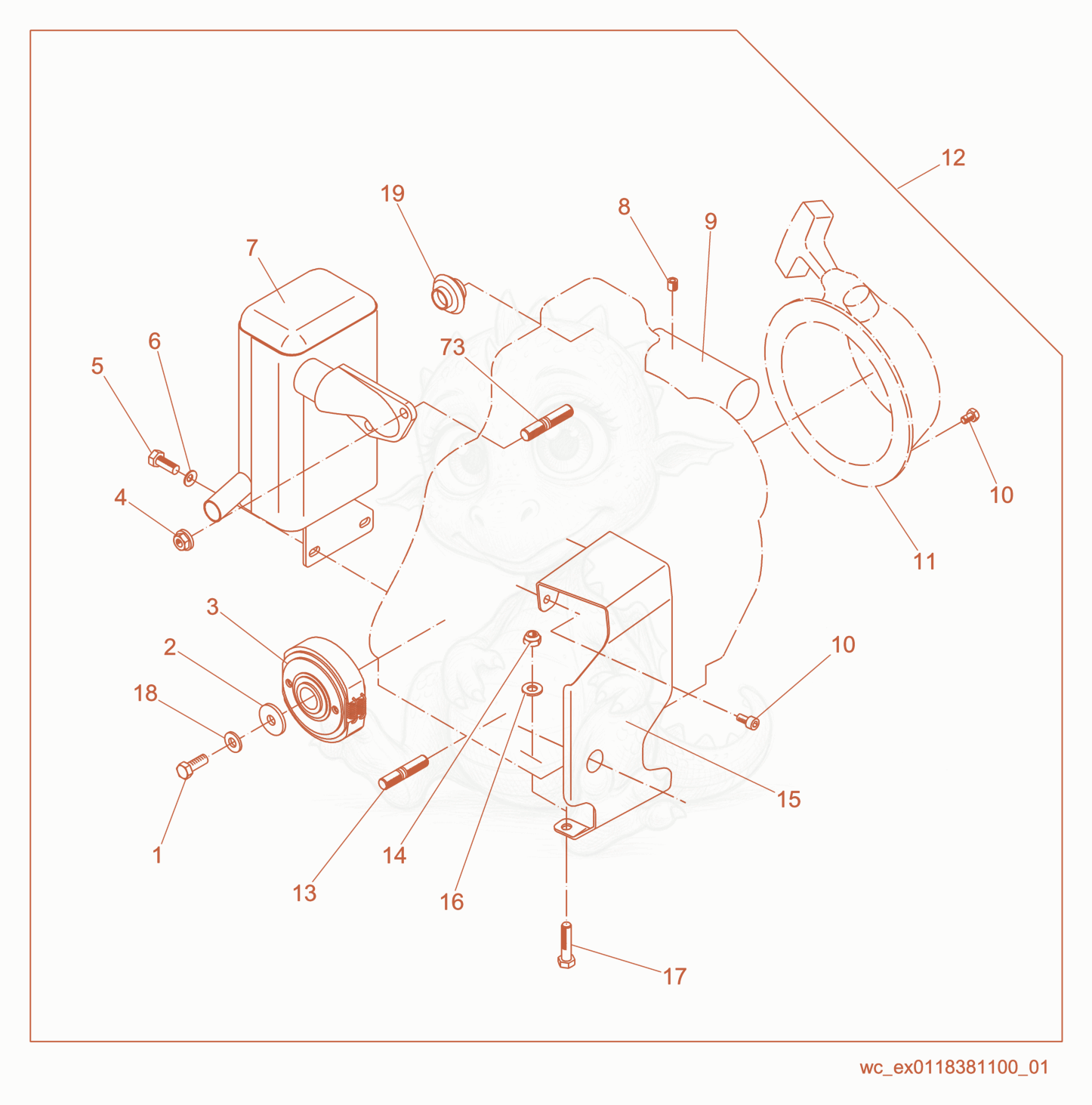

DS720 Diesel Engine cpl. Diagram

Exploded parts diagram of the Diesel Engine cpl. of a Wacker Neuson DS720, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×1
  • 25001005118
    $1.03
    WASHER-STEEL,FLAT - 5001005118×1
  • 35000069863Not stocked
    Centrifugal clutch×1
  • 35000098466
    $37.19
    Lining - 5000098466×2
  • 35000098467
    $5.97
    SPRING-CLUTCH - 5000098467×4
  • 45000073665
    $2.09
    NUT M8,FLANGE - 5000073665×2
  • 55000014663
    $0.06
    SCREW M6 X 16 HX.HD. - 5000014663×2
  • 65000058381
    $0.13
    WASHER-LOCK 6 FST - 5000058381×2
  • 75000095870
    $444.27
    Muffler SP = 5100037615 - 5000095870×1
  • 85000049991
    $0.75
    PLUG M8 X 1 - 5000049991×1
  • 95000161692
    $135.60
    GUIDE-AIR - 5000161692×1
  • 105000012357
    $0.10
    SCREW M6 X 12 HX.HD. - 5000012357×8
  • 115000104549
    $204.92
    STARTER,COMPLETE X-5000073764 - 5000104549×1
  • 125000118381
    $4,175.08
    ENGINE-COMPL,AUTO DECMP,EPA - 5000118381×1
  • 135000010932
    $11.80
    STUD M10 X 30 - 5000010932×4
  • 145000033356
    $0.13
    NUT-LOCK VM8 HEX - 5000033356×2
  • 155000103232Not stocked
    Cover plate×1
  • 165000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×2
  • 175000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×2
  • 185000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×1
  • 195000098595
    $1.72
    BELLOWS-LEVER,DECOMPRESSION - 5000098595×1
  • 735000073640
    $2.54
    STUD M8 X 18 - 5000073640×2
