DW20
DW20 Parts Diagrams
143 factory assemblies. Open one to see the drawing, every part number on it and what we charge for it.

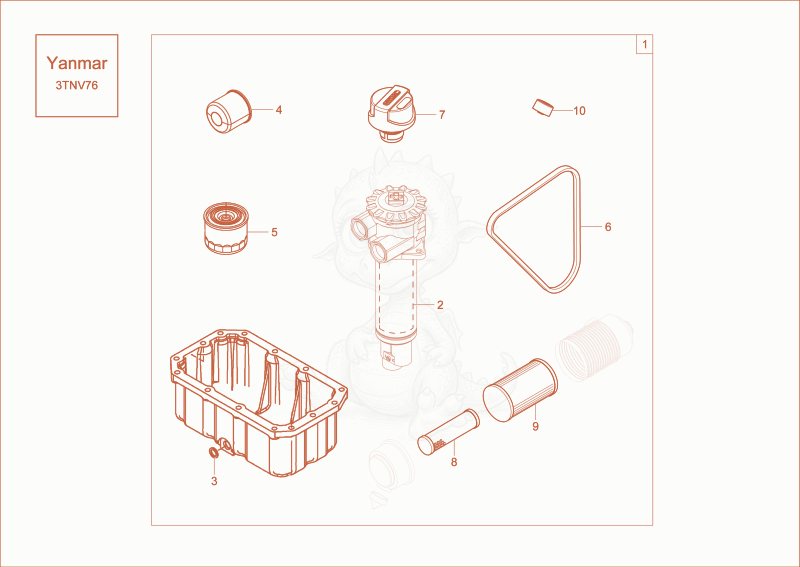

maintenance package (50h)
maintenance package (500h)
maintenance package (1000h)
maintenance package (3000h)
OVERVIEW ACCESSORY KITS

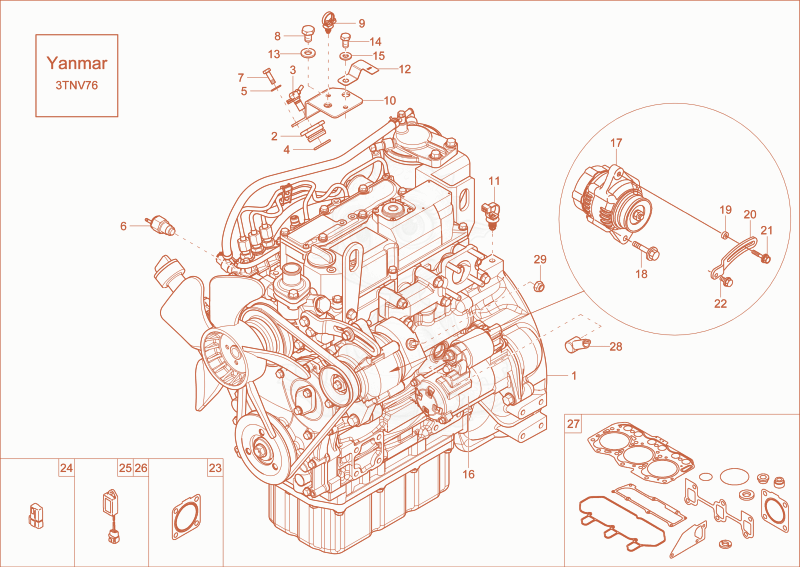

diesel engine

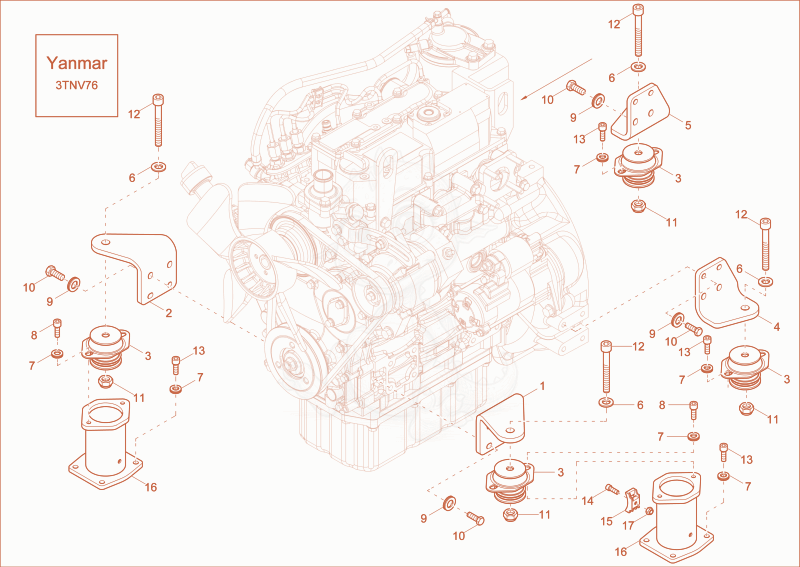

ENGINE BEDDING
CYLINDER HEAD, VALVE COVER
CYLINDER BLOCK
SEAL - CRANKSHAFT
OILPAN
CAMSHAFT
CRANKSHAFT, PISTON
LUB OIL SYSTEM
COOLING SYSTEM

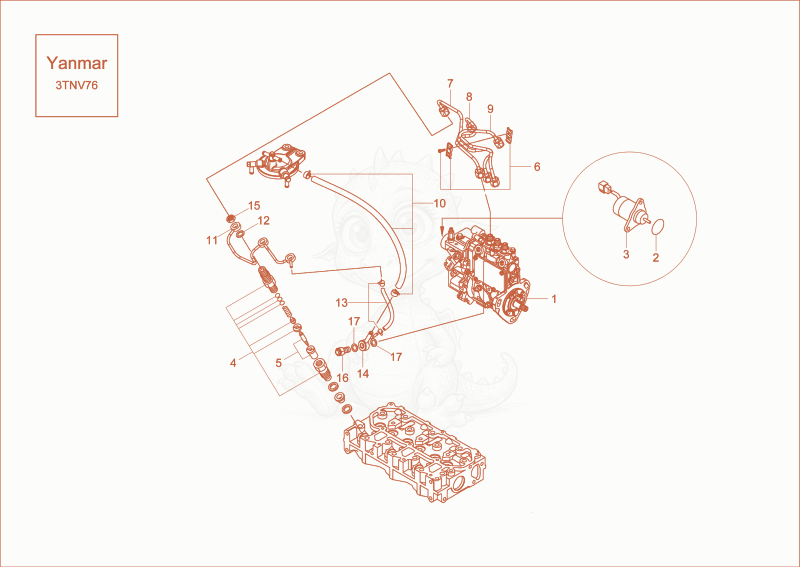

FUEL INJECTION EQUIPMENT
air cleaner
EXHAUST
EXHAUST MANIFOLD
fuel tank

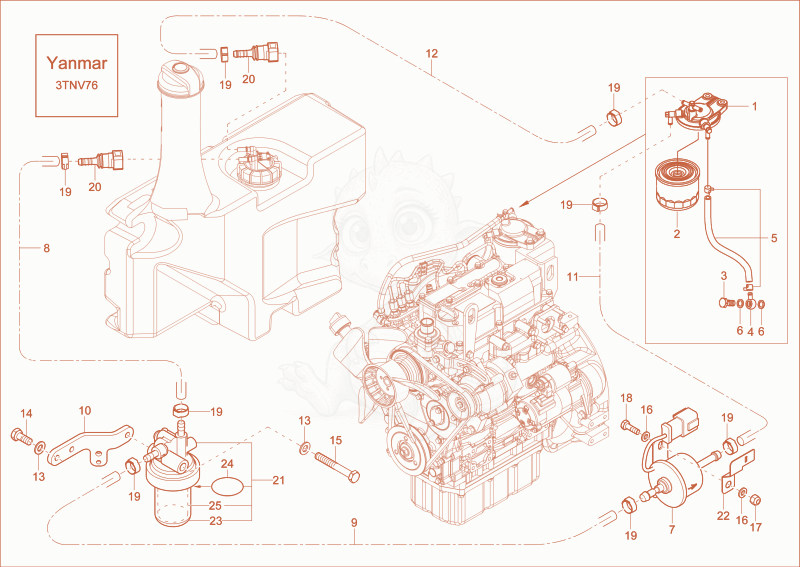

FUEL SUPPLY

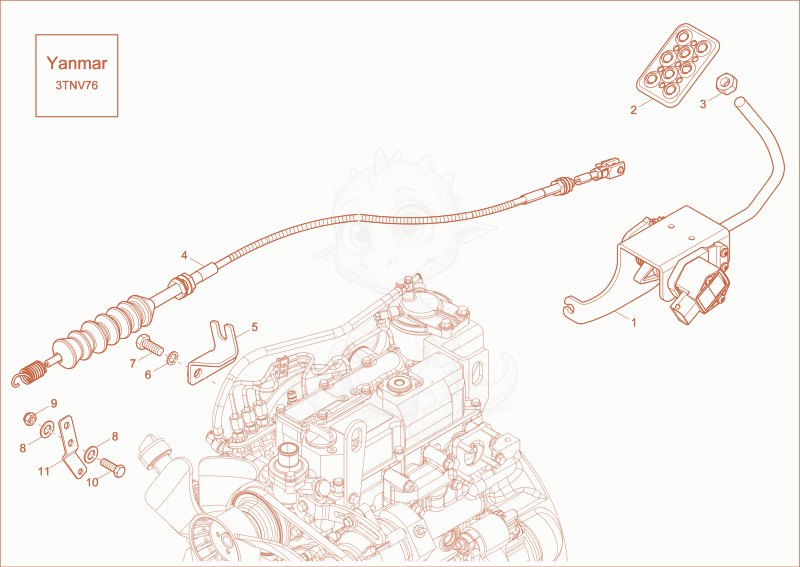

ACCELERATOR
HYDRAULIC PUMP DRIVE
COOLER INSTALLATION
combicooler
TRAVELLING GEAR INSTALLATION
DRIVE UNIT
AXLE
AXLE option

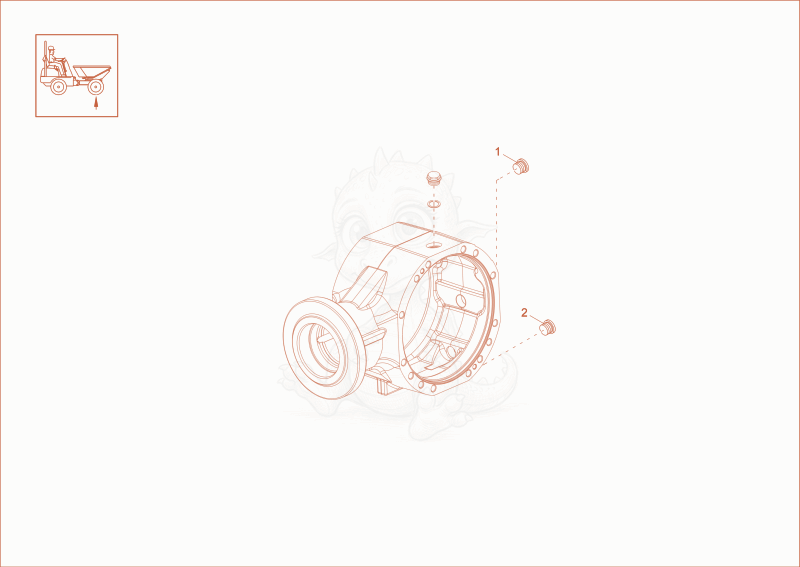

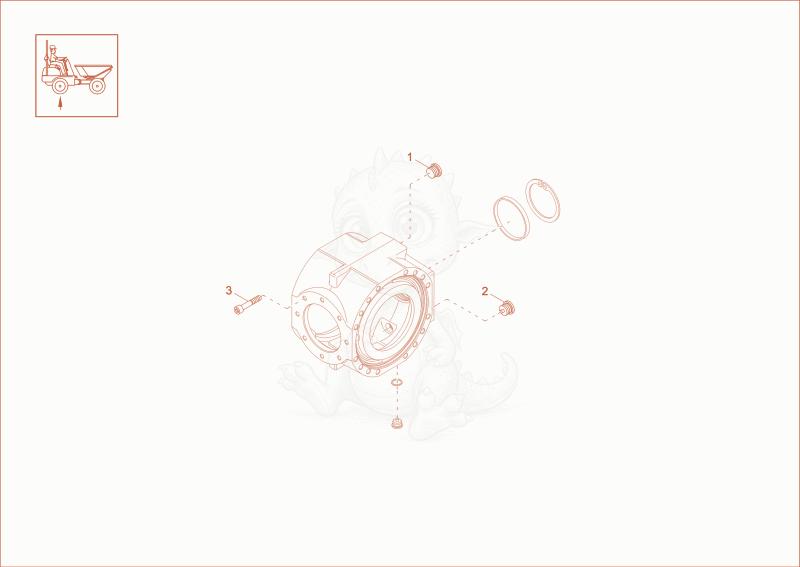

housing
differential axle
differential axle option
AXLE CASE, WHEEL HUB
housing
differential axle
differential axle option
AXLE CASE, WHEEL HUB
distributor gear-box
BRAKE INSTALLTION
BRAKE VALVE
FOOT BRAKE
BRAKES

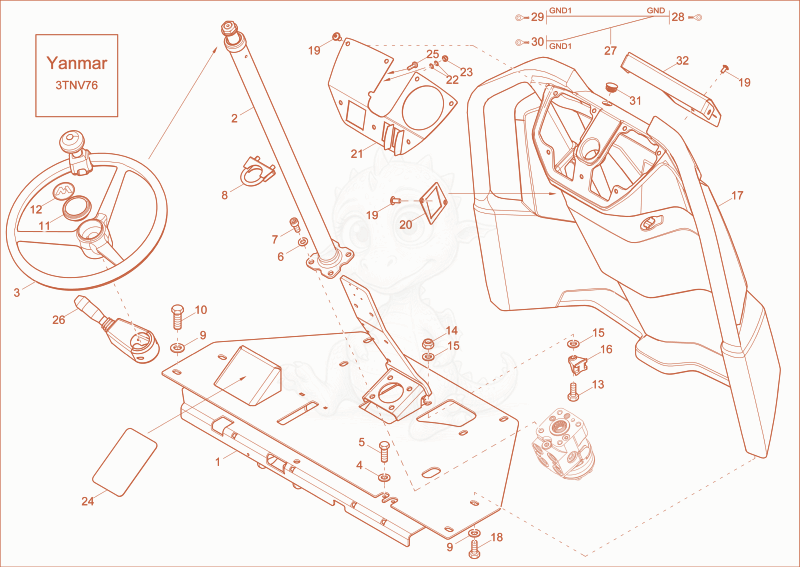

pilot stand
STEERING INSTALLATION
STEERING
STEERING CYLINDER
hydraulic tank

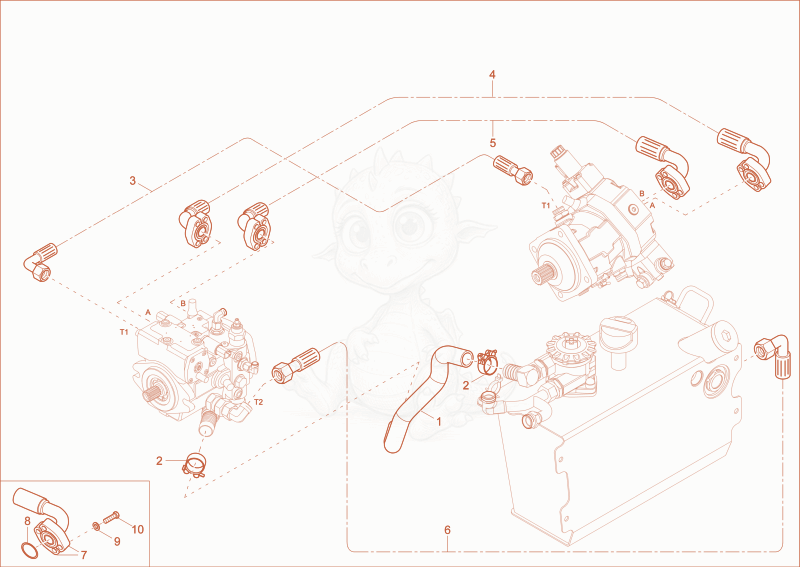

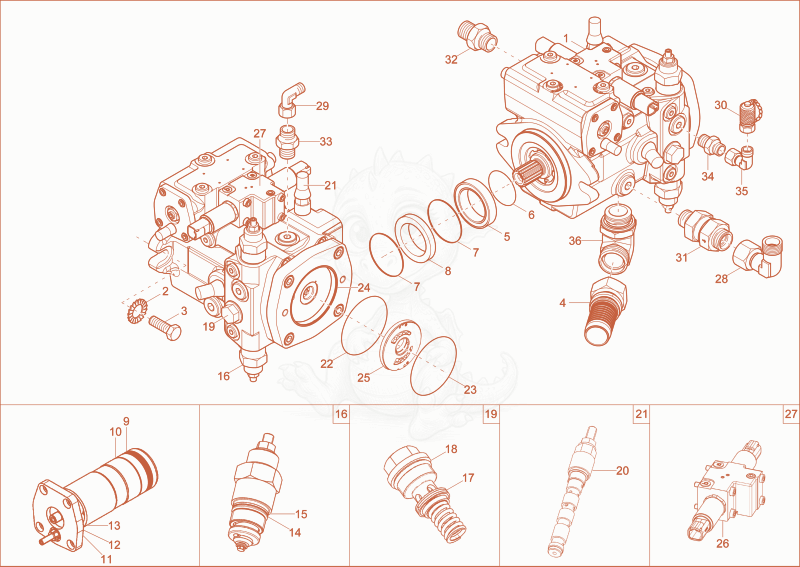

hydraulic pump

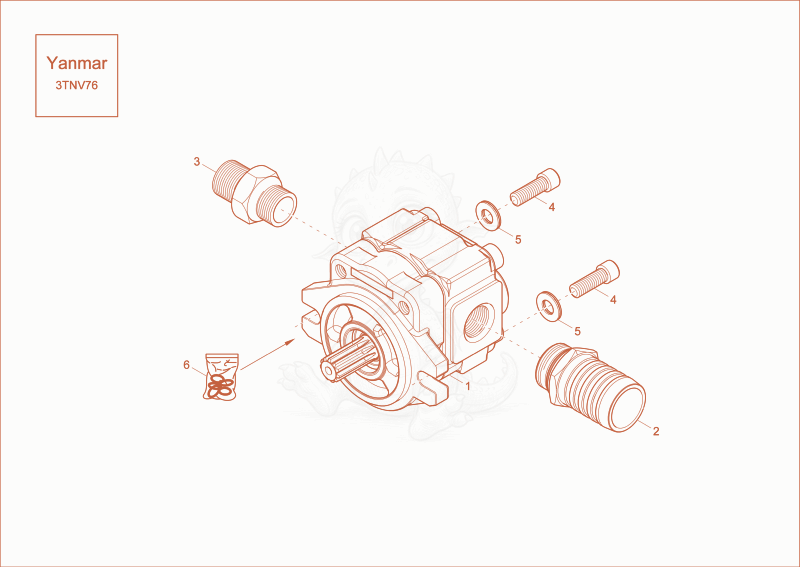

gear pump
CONTROL BLOCK
CONTROL BLOCK (OPTION)
CONTROL BLOCK (OPTION)
joystick
PRESSURE LIMITING VALVE (OPTION)
change over valve (Option)
GEAR PUMP INSTALLATION

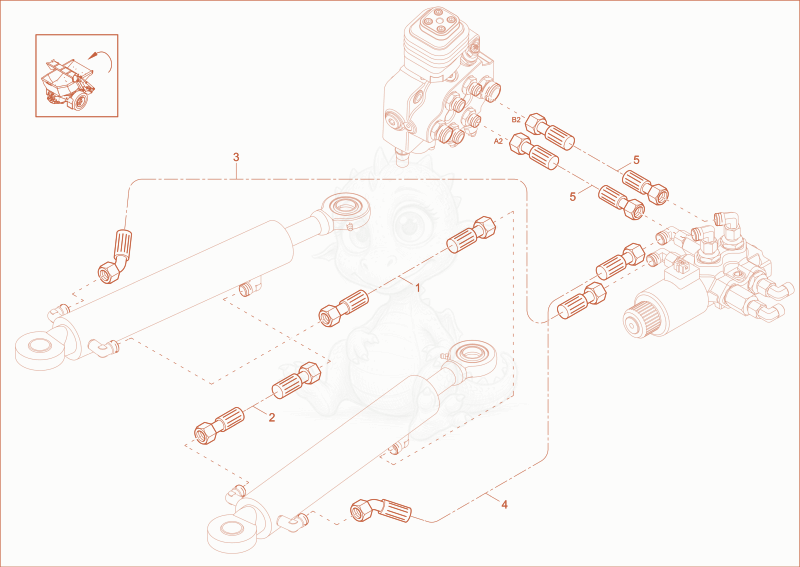

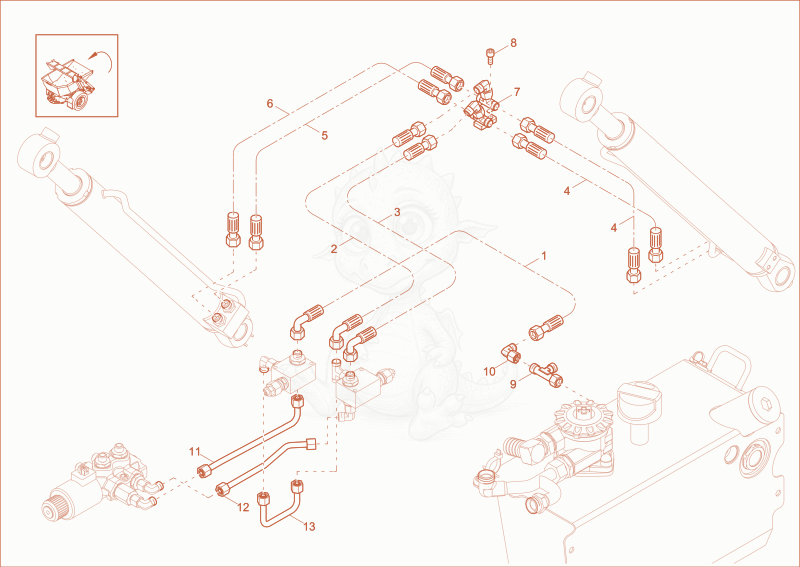

TILT CYLINDER OPERATION
TILT CYLINDER OPERATION (Option)
TILT CYLINDER OPERATION (Option SLE)
TILT CYLINDER OPERATION (Option)

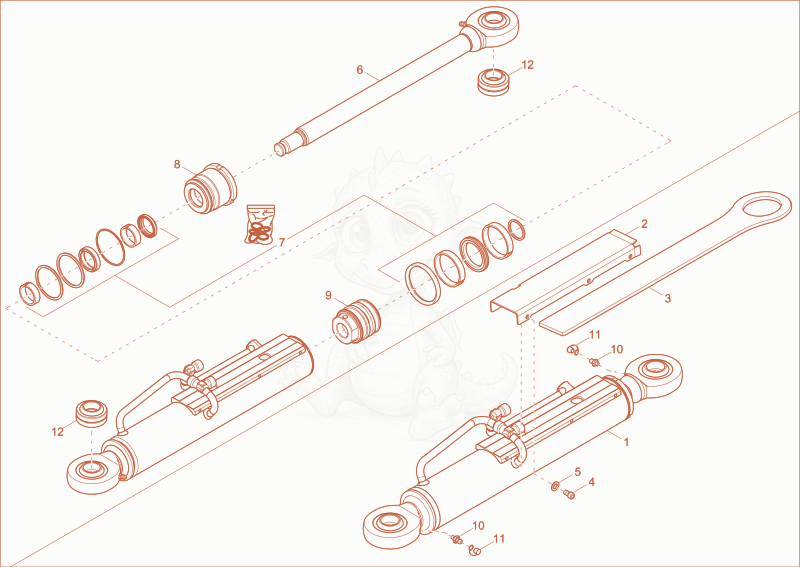

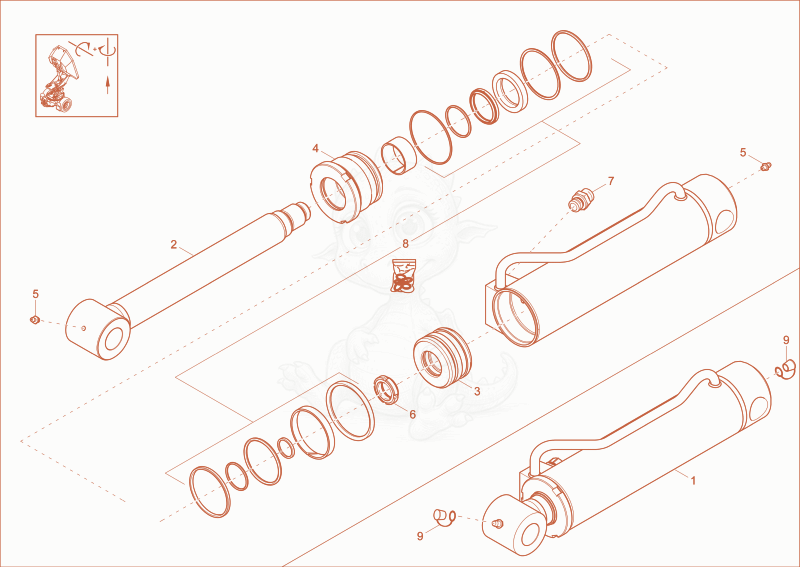

tilt ram

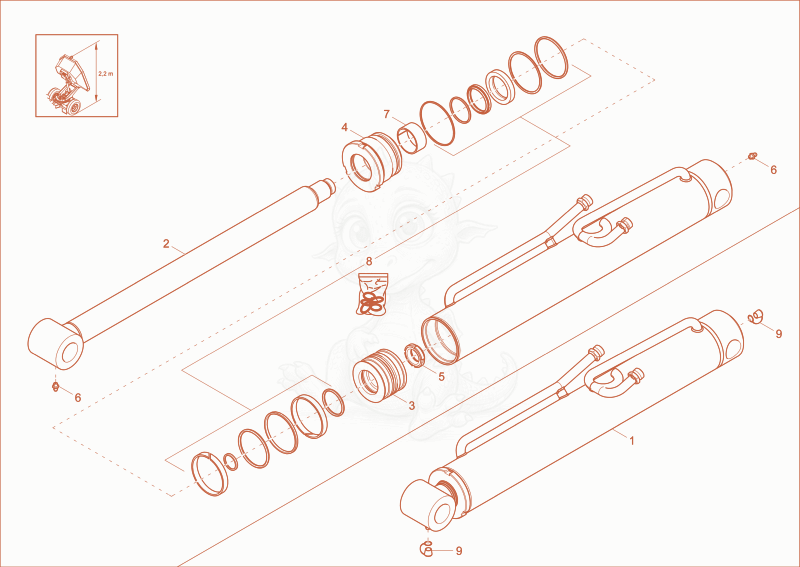

tilt ram (Option)
tilt ram (Option)

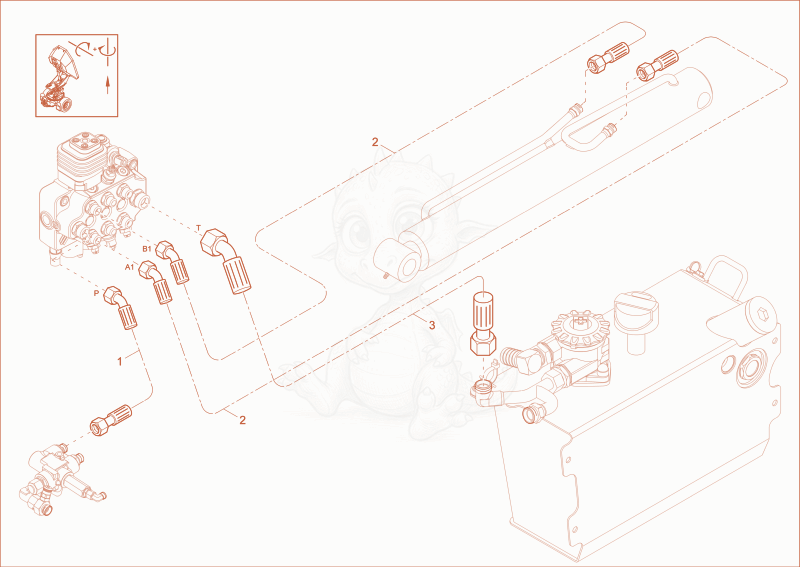

SWIVEL CYLINDER OPERATION (Option)
SWIVEL CYLINDER OPERATION (Option SLE)
SWIVEL CYLINDER OPERATION (Option)
boom offset cylinder
BUCKET CYLINDER OPERATION (option SLE)
bucket cylinder option
LIFT CYLINDER OPERATION (OPTION SLE)
lift cylinder (Option)
LIFT CYLINDER OPERATION (OPTION)
lift cylinder option
priority valve

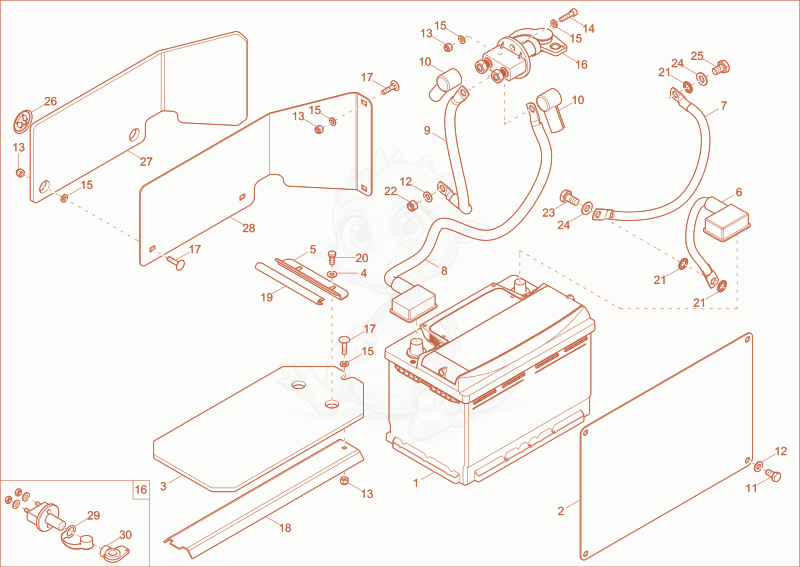

battery

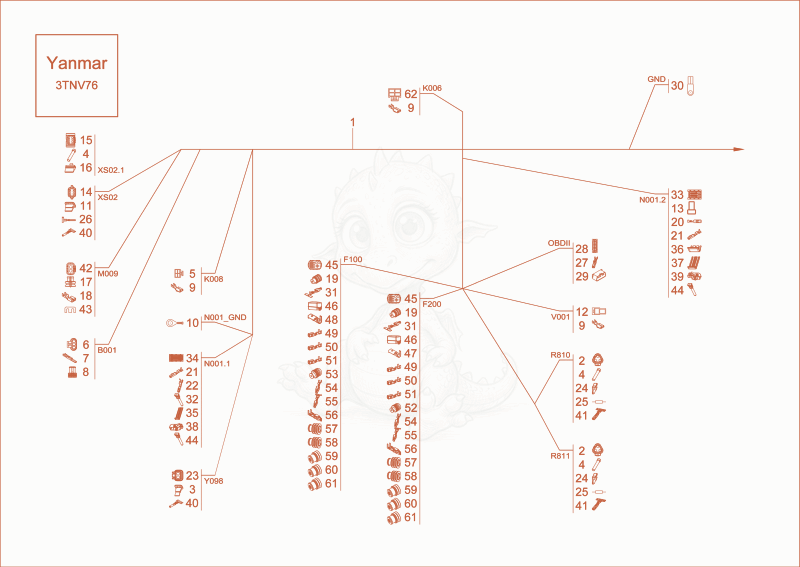

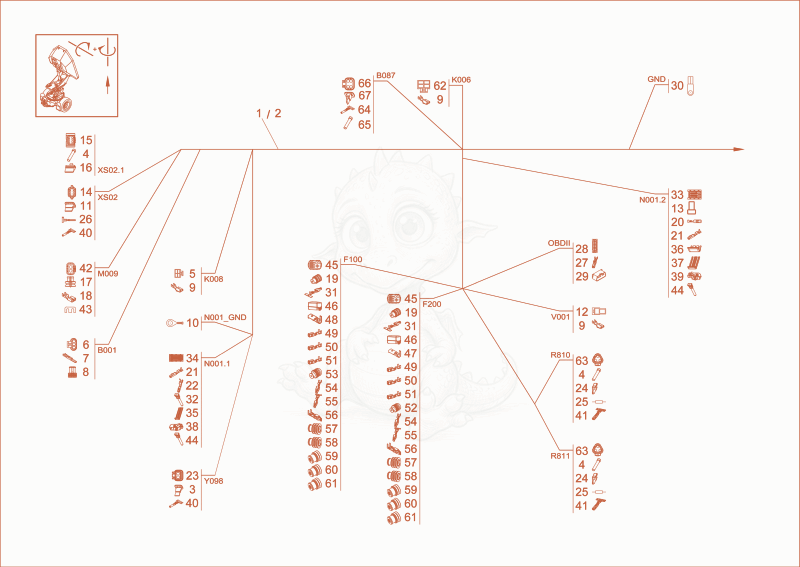

main harness 1
main harness 1
main harness
main harness 2
main harness 1 option
main harness 2 option
WIRE HARNESS Rops (option)
wiring harness STVO option

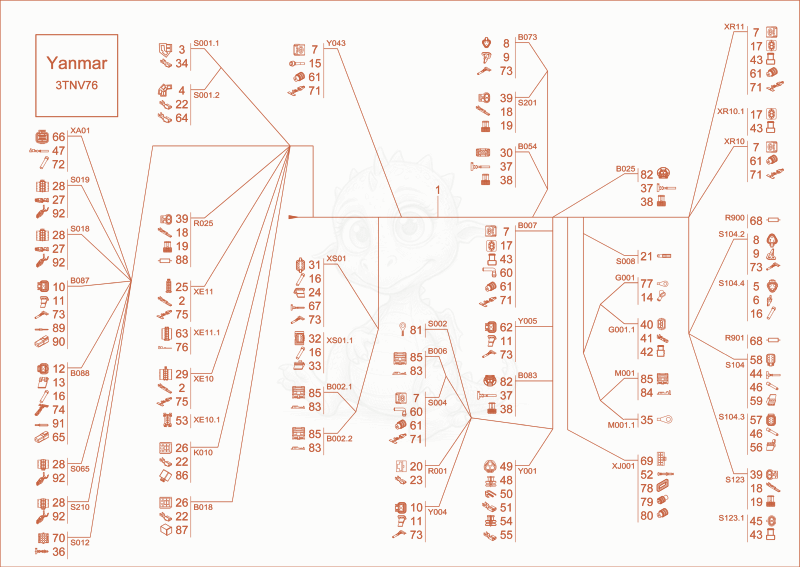

WIRE HARNESS ENGINE (Option)
tilt monitoring
instrument panel
RELAY BOX
RELAY BOX
RELAY BOX
REVERSING ALARM

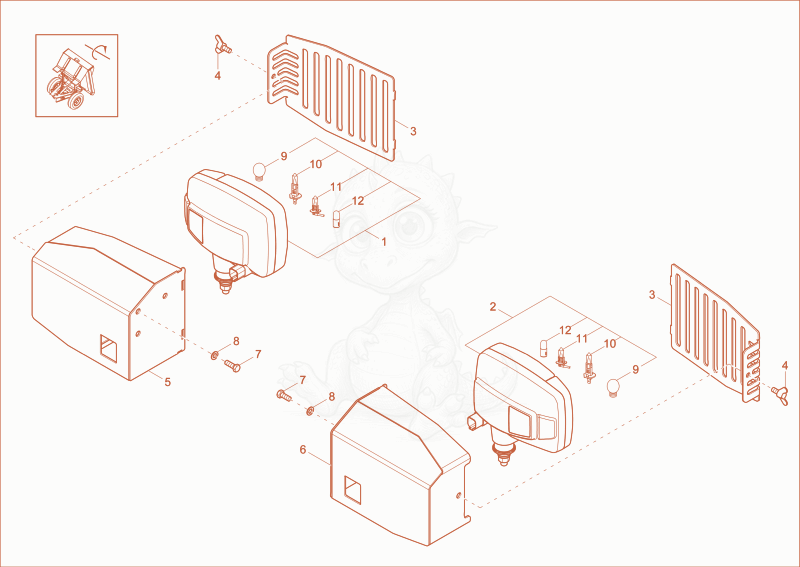

FRONT LIGHTS (OPTION)
FRONT LIGHTS (OPTION)
FRONT LIGHTS (OPTION)
REAR LIGHTS (OPTION)
HORN

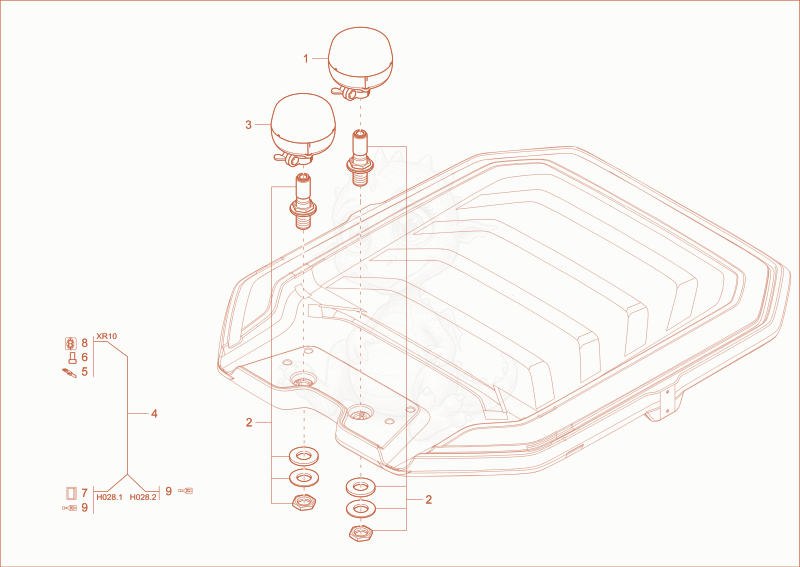

ROTATING BEACON (OPTION)
ROTATING BEACON (OPTION)

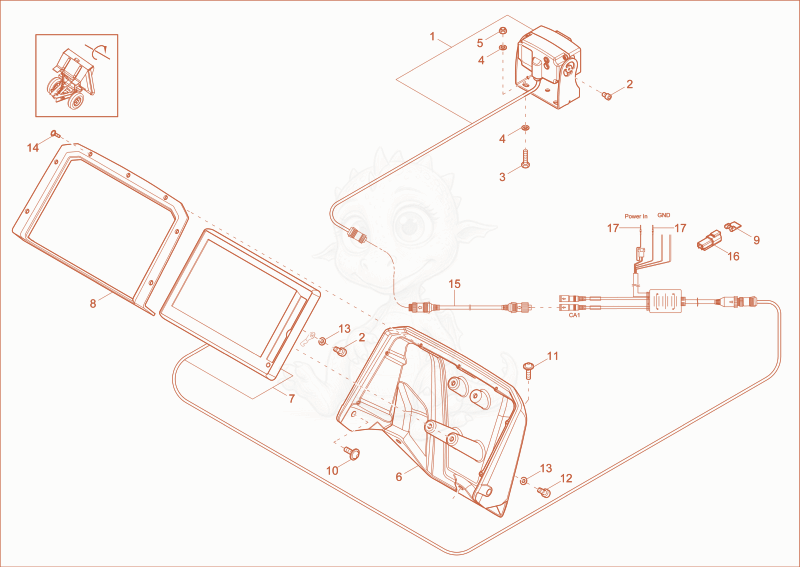

Reversing Camera (OPTION)
Reversing Camera (OPTION)
Reversing Camera (OPTION SLE)
Camera (option)
power socket (Option)

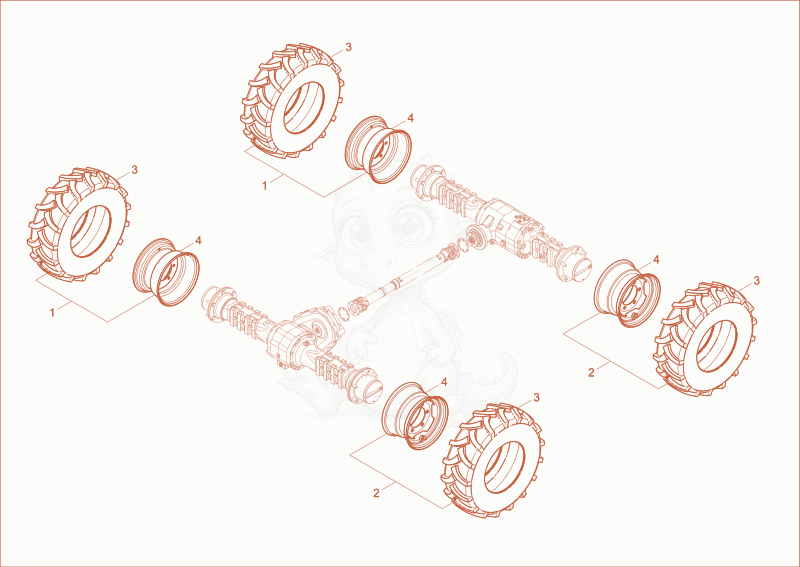

WHEELS

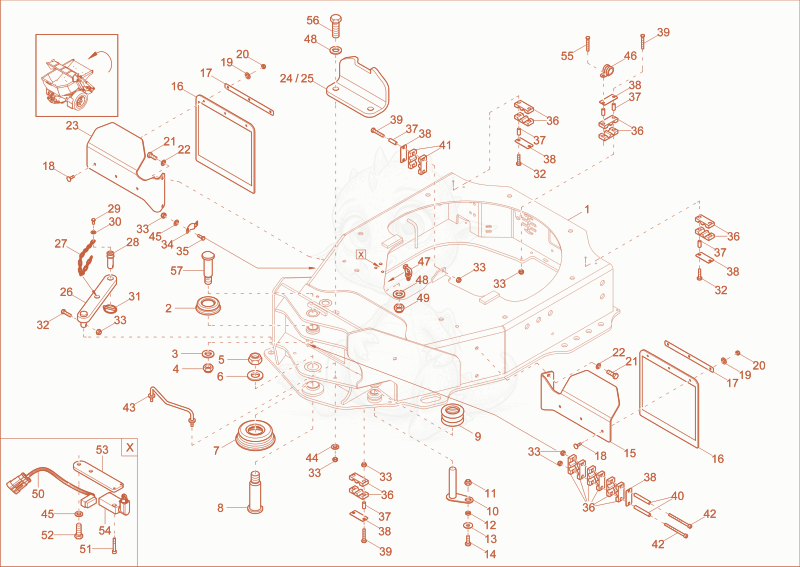

frame front part
frame front part (Option)
VALVE (OPTION 9KW)
frame front part (Option)
rear part frame
SWING BRACKET (OPTION)
SWING BRACKET (OPTION)
SWING BRACKET (OPTION)

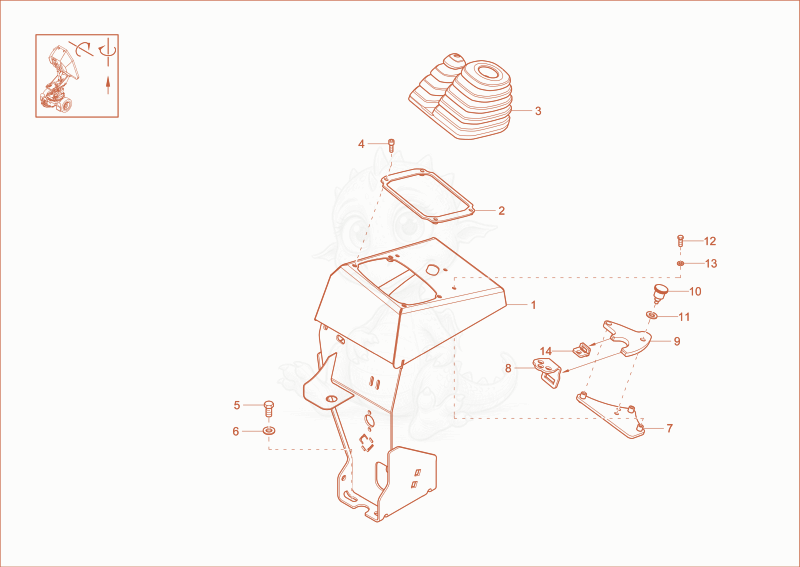

CONSOLE (OPTION)
CONSOLE (OPTION)

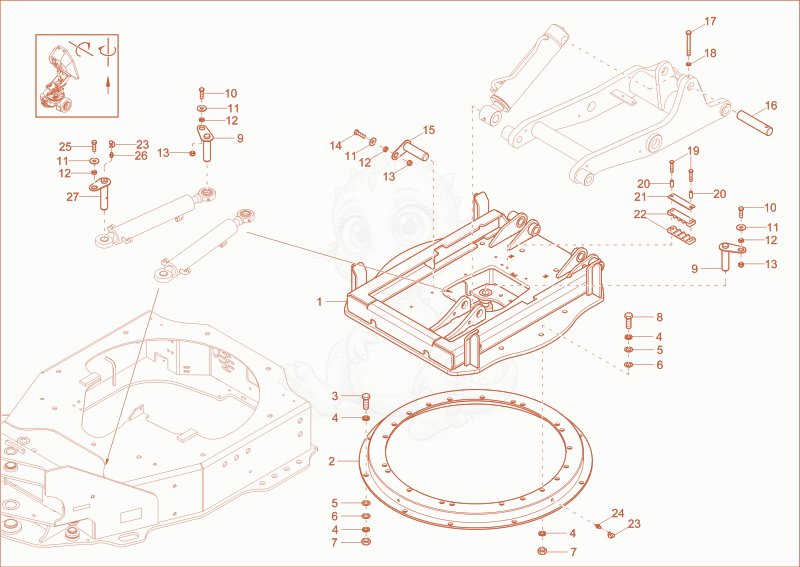

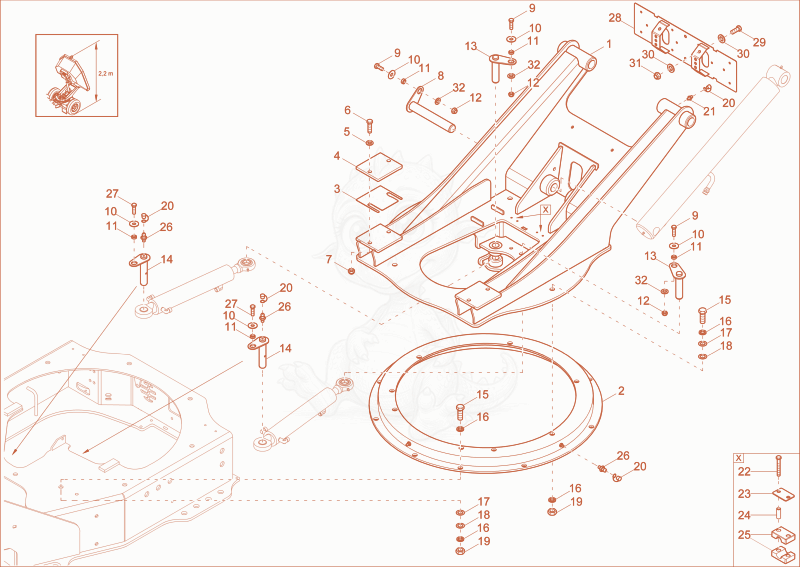

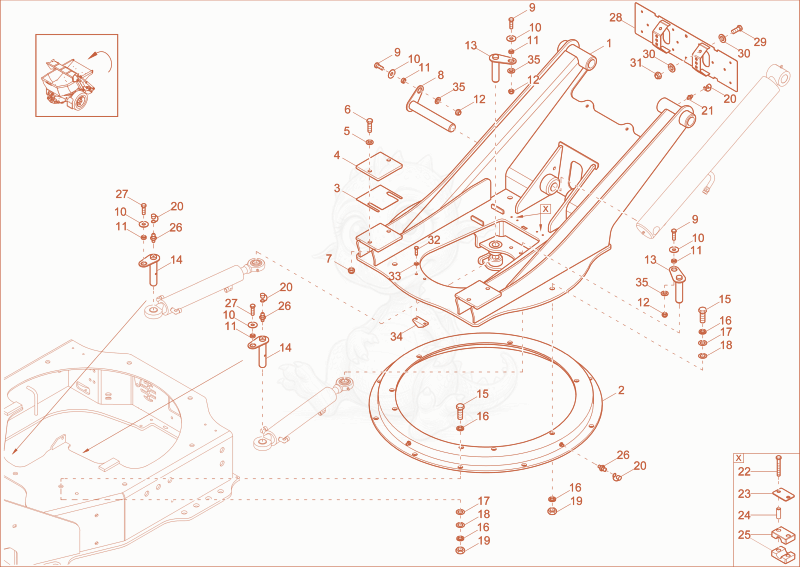

slewing table (option)
articulation piece
wheel cover
wheel cover (option)
bumper
NLA OVERROLL BAR
protecting roof (Option)
MIRROR (OPTION)
MIRROR (OPTION)
MIRROR (OPTION)
engine hood

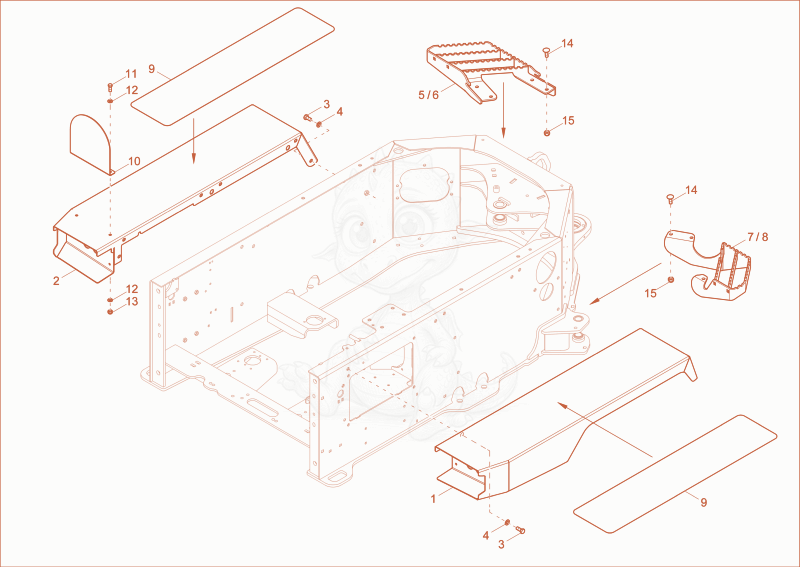

floor plate

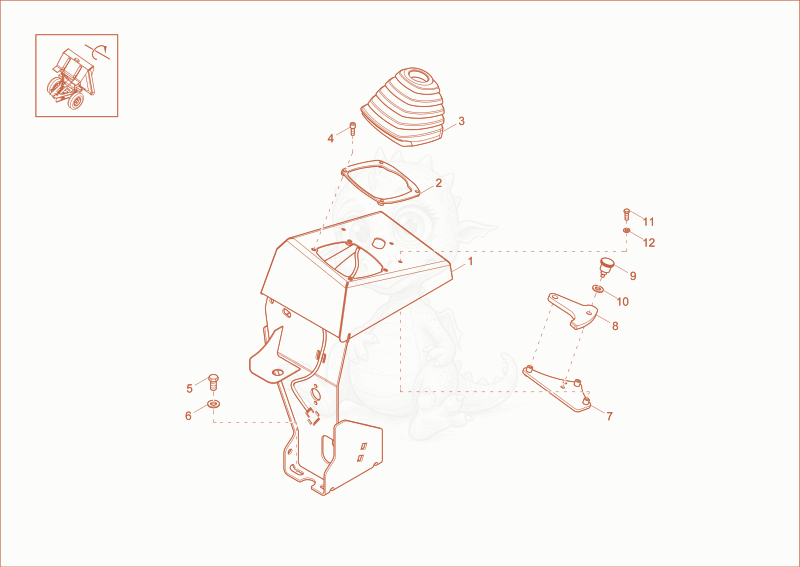

control bracket
control bracket (Option)
ditching bucket QHS (option)

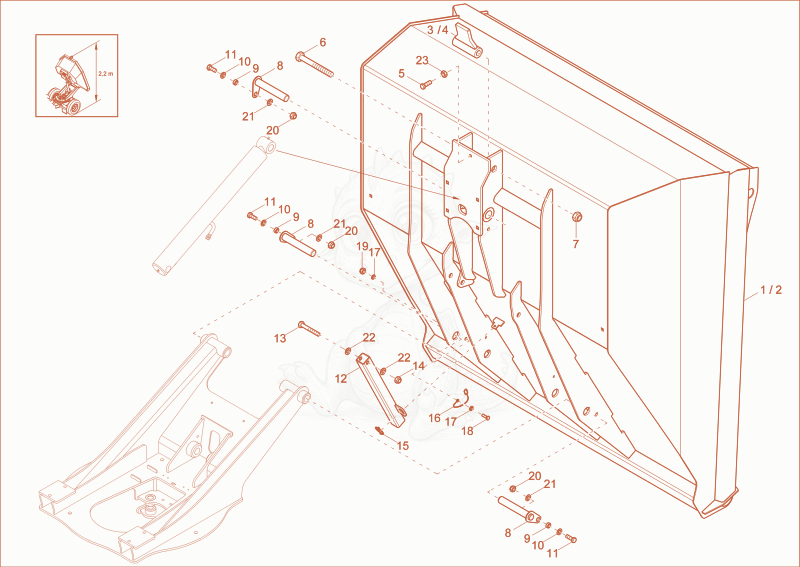

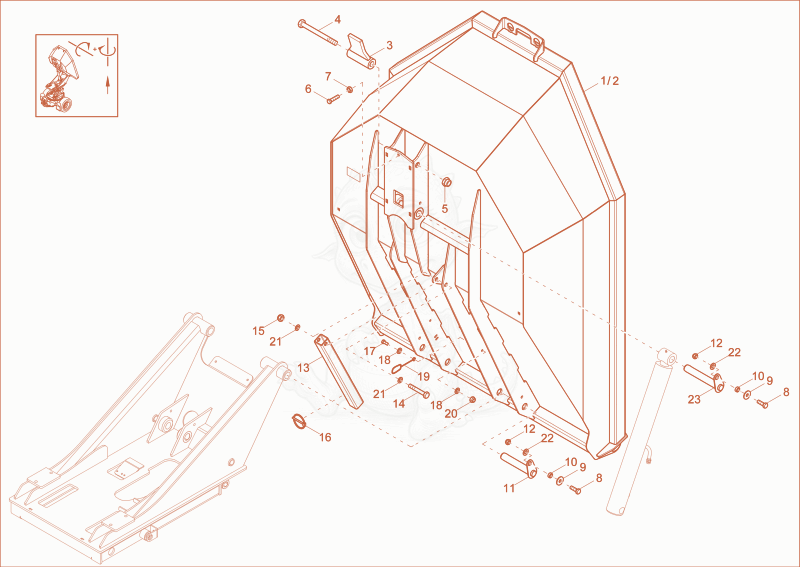

skip
skip (option)
skip (option)
skip (option)
skip (option SLE)

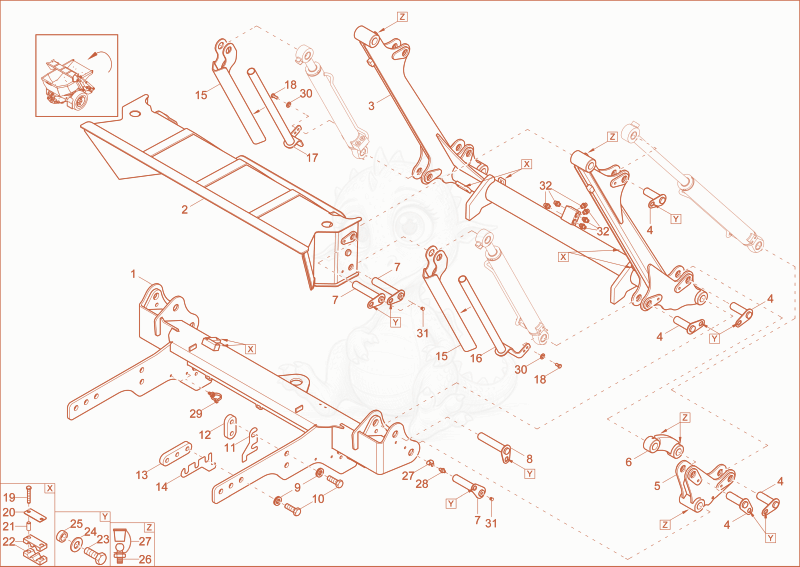

Self Loading Equipment (OPTION)
Self Loading Equipment (OPTION)
SECURITY INSTALLATIONS SLE (option)

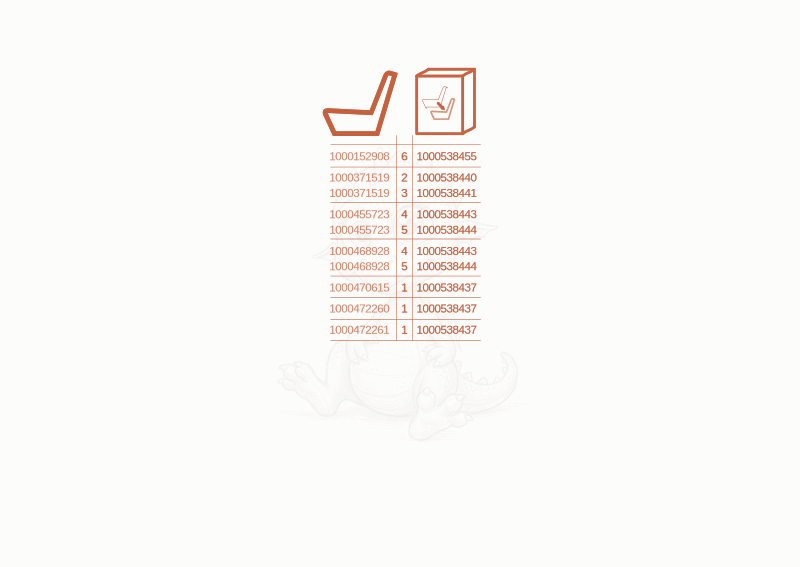

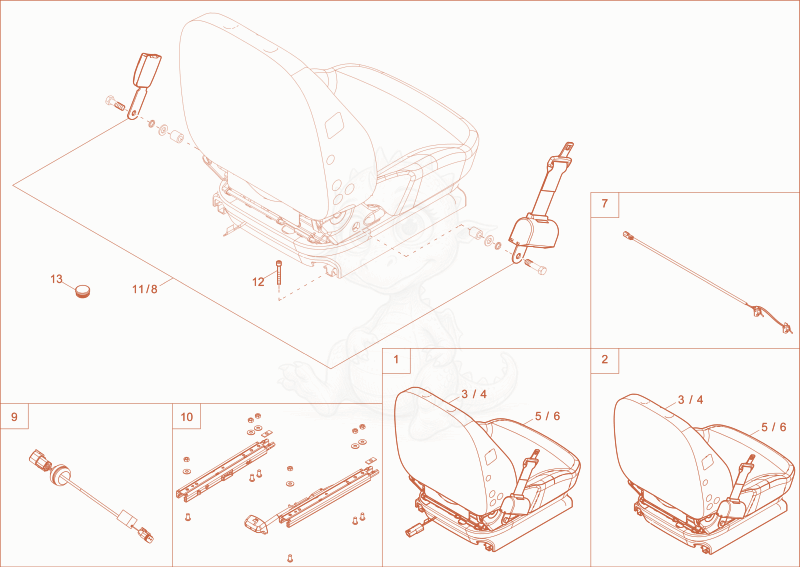

DRIVER SEAT
DRIVER SEAT
slip-cover
STICKER
sticker (Option) SP
WHEEL CHOCK (OPTION)
plug
