E1100 GROUND HEATER W/GEN

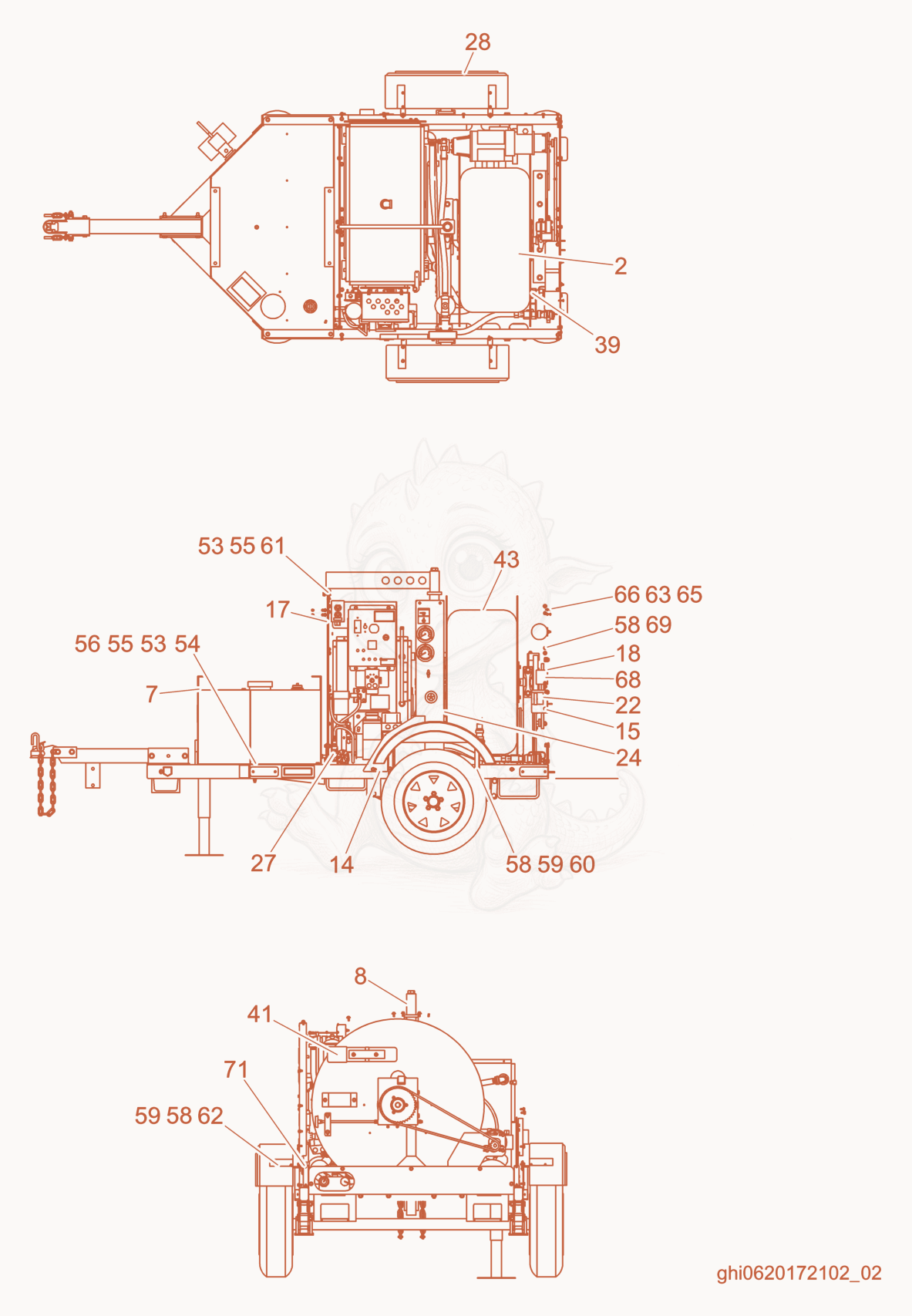

E1100 Enclosure cpl. (1) Diagram

Exploded parts diagram of the Enclosure cpl. (1) of a Wacker Neuson E1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000165910Not stocked
    Wiring harness×1
  • 25000165911Not stocked
    Hose cpl.×1
  • 75000165940Not stocked
    Fuel Tank cpl.×1
  • 85000169509Not stocked
    Lifting bail×1
  • 145000169537Not stocked
    Left side panel×1
  • 155000167069Not stocked
    Bracket×1
  • 175000167073Not stocked
    Bar×1
  • 185000167079Not stocked
    Bracket×1
  • 225000167998Not stocked
    Label-hose reel brake×1
  • 245000168129Not stocked
    Clamp×2
  • 275000168295Not stocked
    Coupling×2
  • 285000168307Not stocked
    Fender×2
  • 395000168608Not stocked
    Adapter×1
  • 415000168721Not stocked
    Manual holder×1
  • 435000169435Not stocked
    Hose×1
  • 535000167730Not stocked
    Flat washer×12
  • 545000167803Not stocked
    Bolt×4
  • 555000167735Not stocked
    Lock washer×8
  • 565000167691Not stocked
    Nut×4
  • 585000167729Not stocked
    Flat washer×32
  • 595000167733Not stocked
    Lock washer×78
  • 605000167704Not stocked
    Bolt×72
  • 615000167705Not stocked
    Bolt×4
  • 625000167826Not stocked
    Nut×10
  • 635000167810Not stocked
    Flat washer×10
  • 655000167814Not stocked
    Nut×10
  • 665000167821Not stocked
    Screw×6
  • 685000167700Not stocked
    Threaded insert×2
  • 695000167857Not stocked
    Screw×9
  • 715000167883Not stocked
    Screw×4
