E1100 GROUND HEATER W/GEN

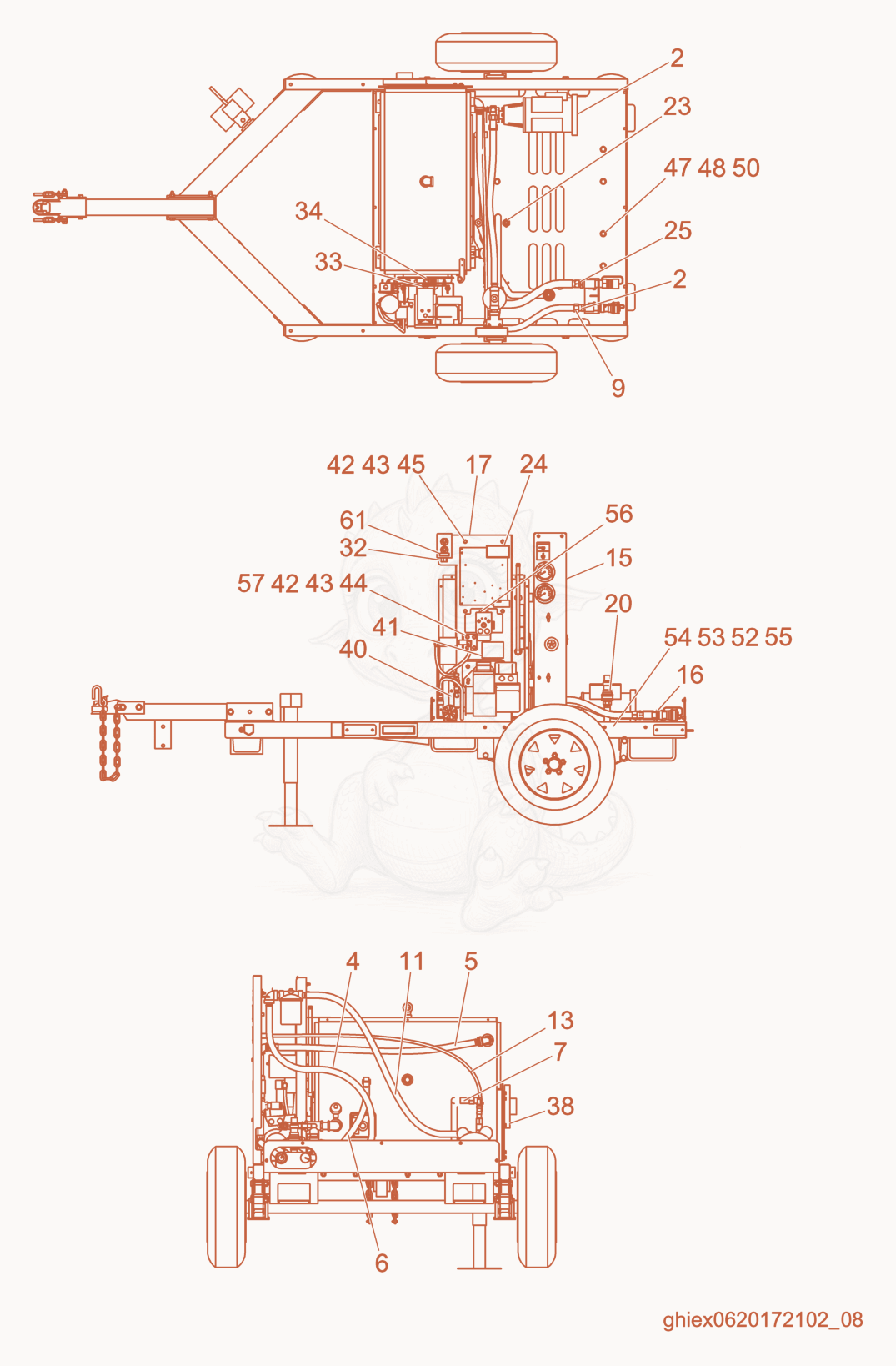

E1100 Trailer Components cpl. (2) Diagram
- 45000165912Not stockedHose cpl.×1
- 55000165914Not stockedHose cpl.×1
- 65000165917Not stockedHose cpl.×1
- 75000165919Not stockedHose cpl.×1
- 95000165921Not stockedHose cpl.×1
- 115000165923Not stockedHose cpl.×1
- 135000165933Not stockedHose cpl.×1
- 155000165937Not stockedCenter panel×1
- 165000169536Not stockedBracket×1
- 175000169553Not stockedControl panel support×1
- 205000168213Not stockedQuick disconnect coupling×2
- 225000168393Not stockedAdapter×1
- 235000168437Not stockedBarbed hose fitting×2
- 245000168501Not stockedLabel×1
- 255000168608Not stockedAdapter×1
- 265000168630Not stockedCoupling×1
- 325000166458Not stockedCord grip×1
- 335000166459Not stockedLock nut×1
- 345000166713Not stockedCord grip×1
- 385000167080Not stockedInsulation-heater×2
- 405000167115Not stockedSupport×1
- 415000168493Not stockedLabel-heater not pressurized×1
- 425000167729Not stockedFlat washer×24
- 435000167733Not stockedLock washer×24
- 445000167704Not stockedBolt×10
- 455000167721Not stockedBolt×10
- 475000167728Not stockedFlat washer×12
- 485000167734Not stockedLock washer×6
- 505000167699Not stockedBolt×2
- 525000167731Not stockedFlat washer×12
- 535000167736Not stockedLock washer×6
- 545000167708Not stockedBolt×6
- 555000167692Not stockedNut×6
- 575000167700Not stockedThreaded insert×8
- 615000168795Not stockedLabel-duplex×1
