E1100 GROUND HEATER W/GEN

E1100 Hydronic heater cpl. Diagram

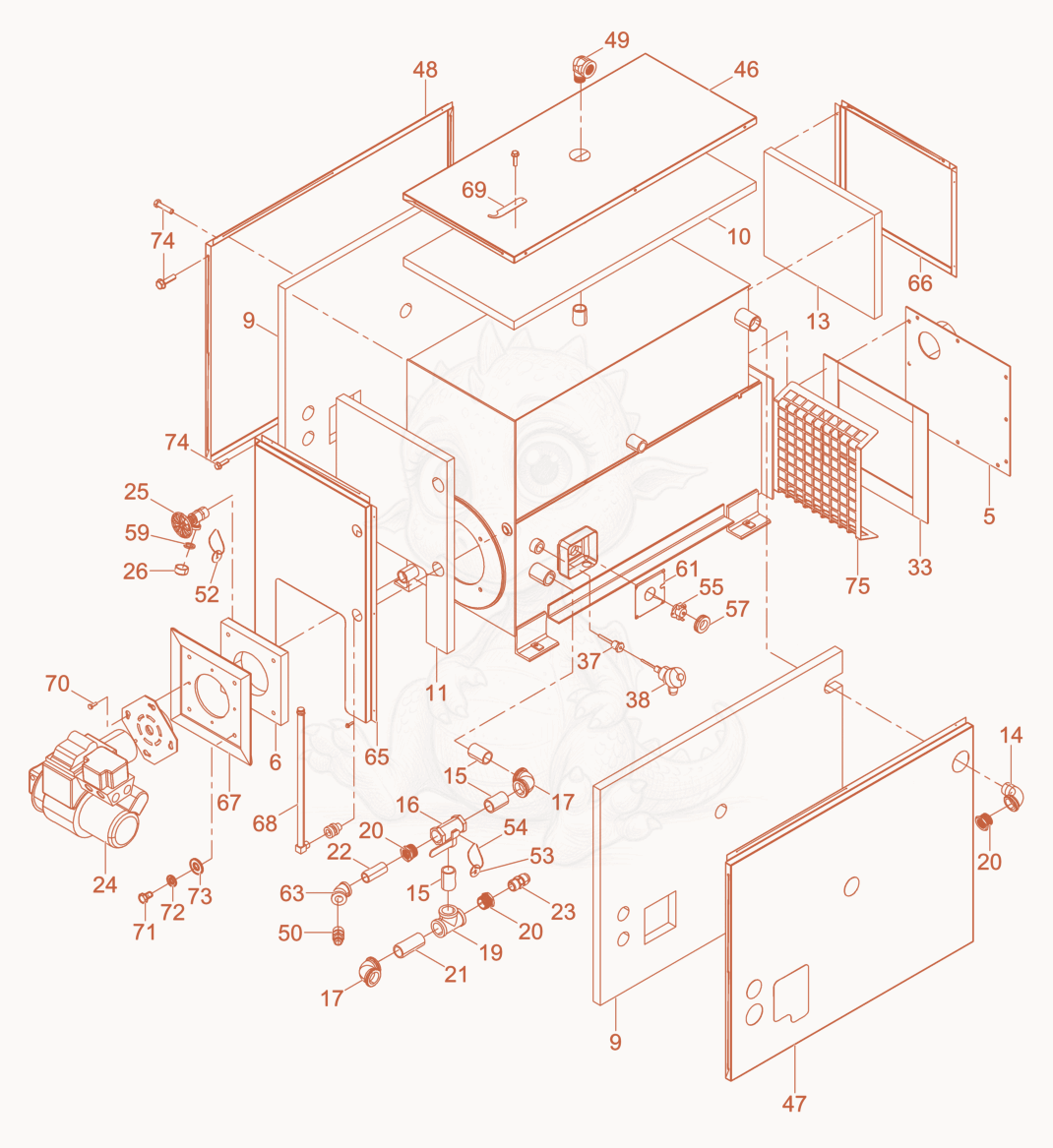

Exploded parts diagram of the Hydronic heater cpl. of a Wacker Neuson E1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55000169515Not stocked
    Exhaust lid×1
  • 65000167060Not stocked
    Insulator×1
  • 95000167098Not stocked
    Insulation×2
  • 105000167099Not stocked
    Insulation×1
  • 115000167100Not stocked
    Insulation×1
  • 135000167101Not stocked
    Insulation×1
  • 145000168403Not stocked
    Elbow fitting×1
  • 155000168331Not stocked
    Nipple fitting×3
  • 165000168474Not stocked
    Valve×1
  • 175000168328Not stocked
    Elbow×2
  • 195000168326Not stocked
    Tee-fitting×1
  • 205000168011Not stocked
    Bushing×3
  • 215000168712Not stocked
    Nipple fitting×1
  • 225000168710Not stocked
    Nipple fitting×1
  • 235000168393Not stocked
    Adapter×1
  • 245200000920Not stocked
    Burner cpl. (Diesel)×1
  • 255000168048Not stocked
    Valve×1
  • 265000168040Not stocked
    Cap×1
  • 325000168163Not stocked
    Turbulator×19
  • 335000178466Not stocked
    Ceramic fiber strip×1
  • 375000166711Not stocked
    Thermowell×1
  • 385000166712Not stocked
    Thermocouple×1
  • 465000167093Not stocked
    Cover×1
  • 475000167096Not stocked
    Cover×1
  • 485000167097Not stocked
    Cover×1
  • 495000168029Not stocked
    Elbow×1
  • 505000168372Not stocked
    Adapter×1
  • 525000168186Not stocked
    Tag No. 1×1
  • 535000168187Not stocked
    Tag No. 2×1
  • 545000167727Not stocked
    Tie wire×2
  • 555000166613Not stocked
    Limit control×1
  • 575000168477Not stocked
    Grommet×1
  • 595000168342Not stocked
    Washer×1
  • 635000168498Not stocked
    Elbow×1
  • 655000167094Not stocked
    Cover×1
  • 665000167095Not stocked
    Cover×1
  • 675000169551Not stocked
    Mounting plate×1
  • 685000168831Not stocked
    Sight gauge×1
  • 695000167114Not stocked
    Bracket×1
  • 705000167704Not stocked
    Bolt×3
  • 715000167721Not stocked
    Bolt×16
  • 725000167733Not stocked
    Lock washer×16
  • 735000167729Not stocked
    Flat washer×16
  • 745000167883Not stocked
    Screw×22
  • 755000177838Not stocked
    Mount×1
