E3000 ES Ground Heater

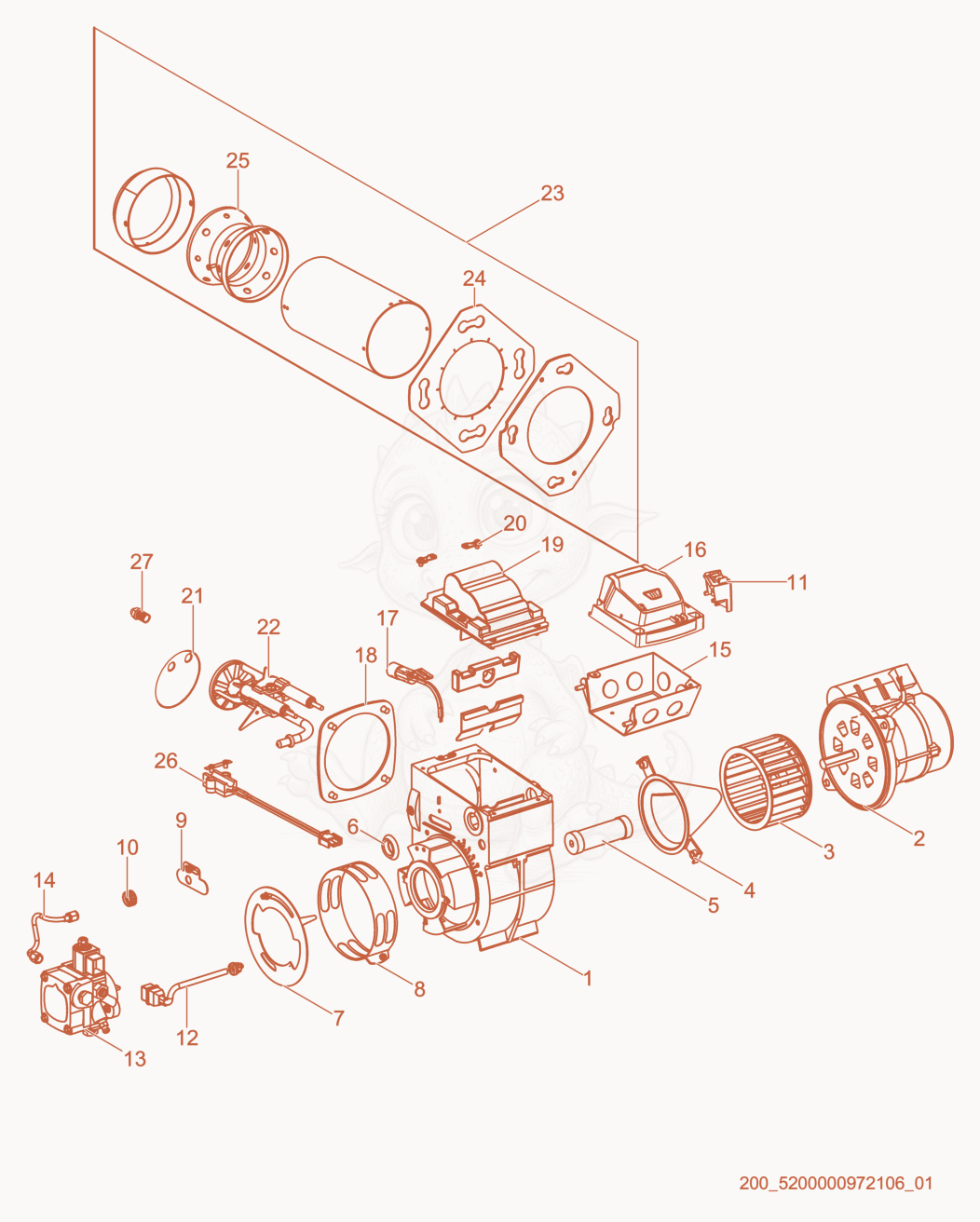

E3000ES Burner cpl. Diagram

Exploded parts diagram of the Burner cpl. of a Wacker Neuson E3000ES, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000172421Not stocked
    Housing×1
  • 25000168968Not stocked
    Motor×1
  • 35000169096Not stocked
    Blower wheel×1
  • 45000176331Not stocked
    Air guide×1
  • 55000169119Not stocked
    Coupling×1
  • 65000176330Not stocked
    Plug×1
  • 75000172425Not stocked
    Slider×1
  • 85000172424Not stocked
    Slider×1
  • 95000176338Not stocked
    Mounting plate×1
  • 105000176337Not stocked
    Nut×1
  • 115000181501Not stocked
    Alarm×1
  • 125000172422Not stocked
    Valve×1
  • 135000169212Not stocked
    Fuel pump×1
  • 135200012468Not stocked
    Coil×1
  • 135200012467Not stocked
    Valve stem×1
  • 145000176333Not stocked
    Fuel line×1
  • 155000173156Not stocked
    Box-wire burner×1
  • 165000181488Not stocked
    Burner control×1
  • 175000169100Not stocked
    Burner replacement CAD cell×1
  • 185000176335Not stocked
    Gasket Set×1
  • 195000169124Not stocked
    Transformer×1
  • 205000176646Not stocked
    Clip×2
  • 215000169062Not stocked
    Static plate×1
  • 225000168971Not stocked
    Electrode Replacement Kit×1
  • 235000179835Not stocked
    Air tube cpl.×1
  • 245000168976Not stocked
    Gasket×1
  • 255000179811Not stocked
    Head×1
  • 265000169098Not stocked
    Burner fuel pre-heater×1
  • 275000179834Not stocked
    Nozzle-burner×1
