E5000 GROUND HEATER, W/DIESEL BURNER

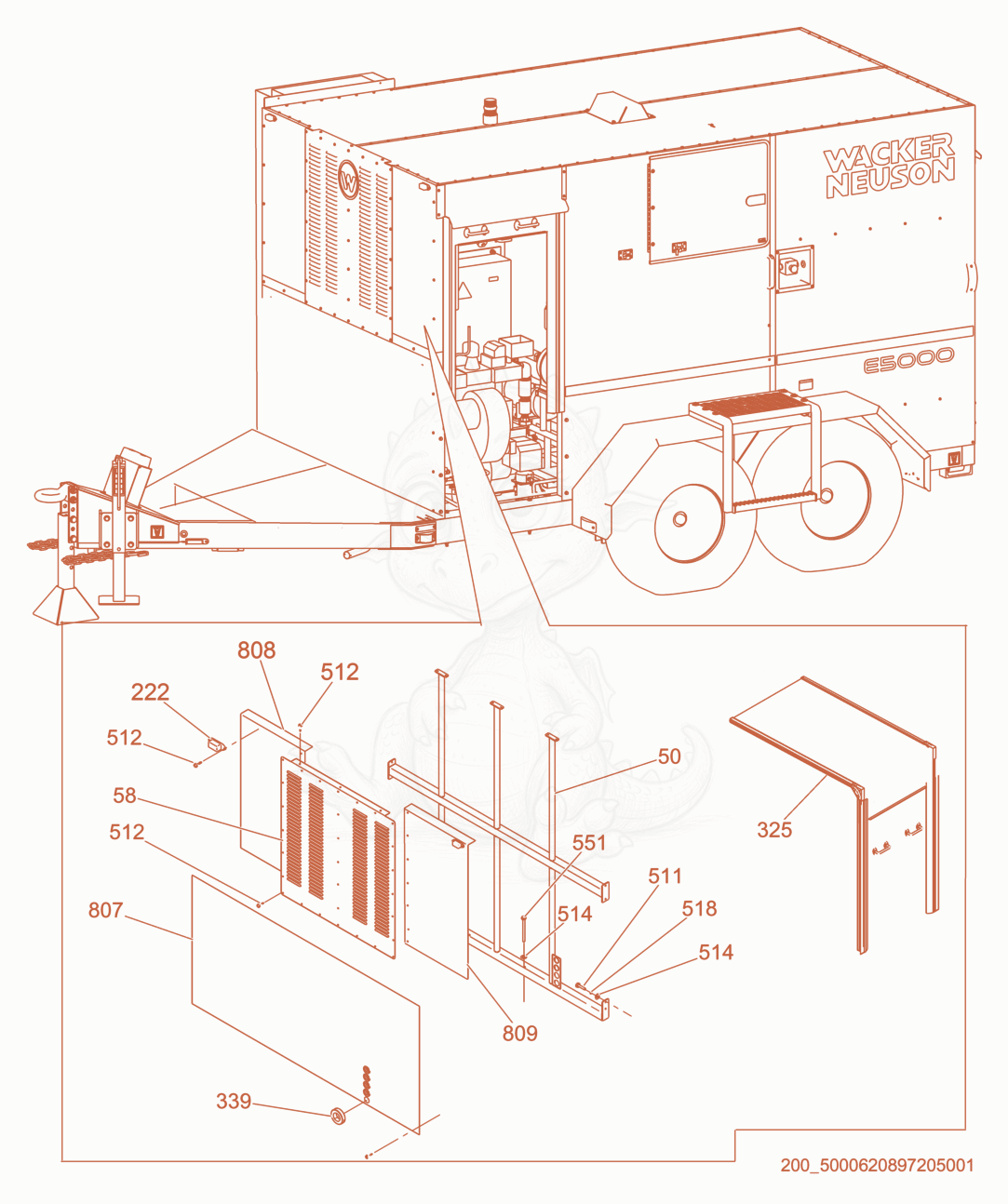

E5000 Front Enclosure cpl. Diagram

Exploded parts diagram of the Front Enclosure cpl. of a Wacker Neuson E5000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 505000172476Not stocked
    Front frame×1
  • 585000193570Not stocked
    Cover×1
  • 2225000166504Not stocked
    Light×2
  • 3255000168818Not stocked
    Door×1
  • 3395000168477Not stocked
    Grommet×5
  • 5115000167721Not stocked
    Bolt×14
  • 5125000167722Not stocked
    Screw w/washer×32
  • 5145000167729Not stocked
    Flat washer×18
  • 5185000167733Not stocked
    Lock washer×14
  • 5515000167877Not stocked
    Bolt×6
  • 8075200001277Not stocked
    Front panel (yellow)×1
  • 8085000193577Not stocked
    Front panel (yellow)×1
  • 8095000193578Not stocked
    Front panel (yellow)×1
