E5000 Ground Heater, 12kw Gen, Diesel

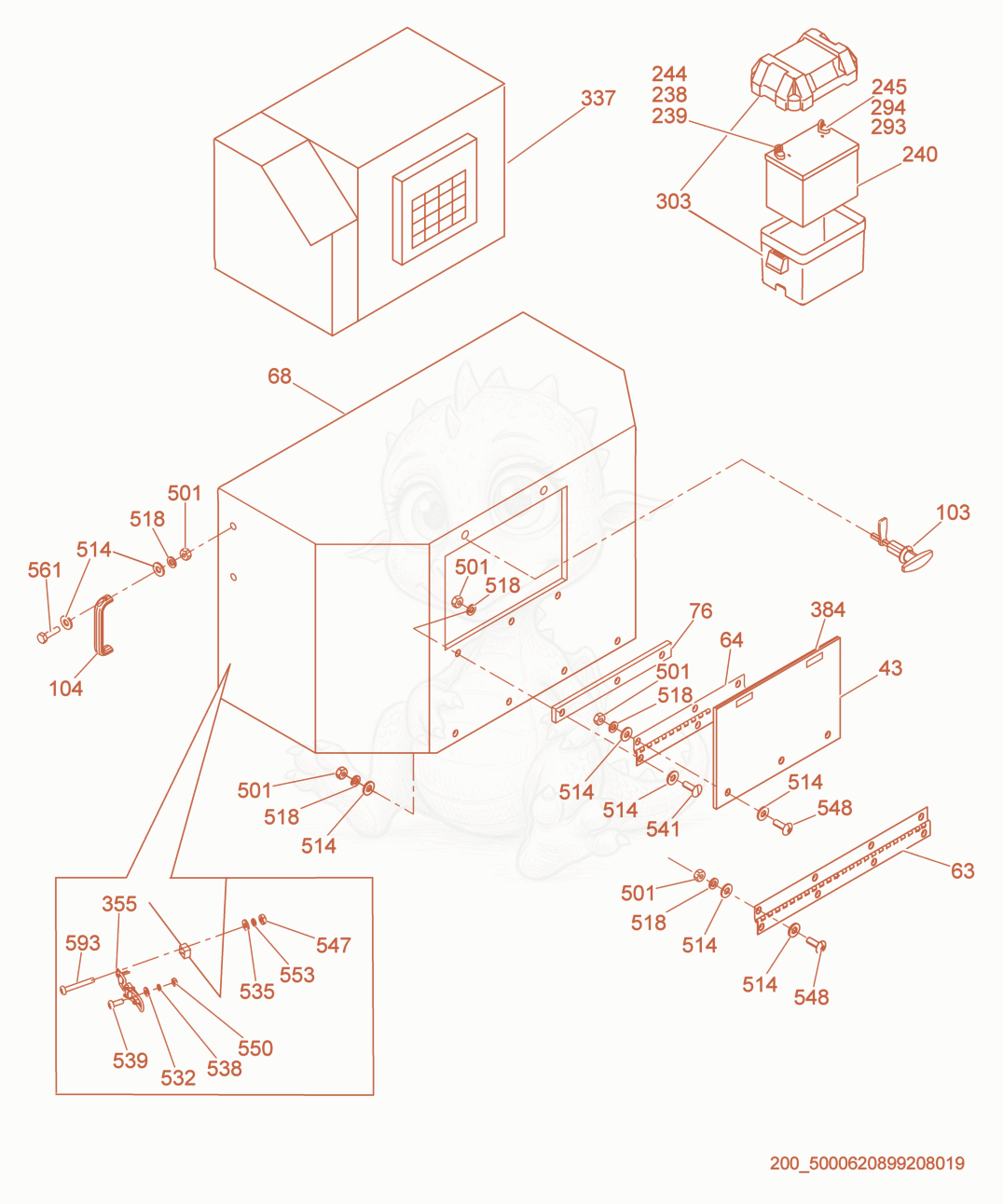

E5000 Cover cpl. Diagram
- 435000172556Not stockedAccess door×1
- 635000171412Not stockedHinge×1
- 645000172565Not stockedDoor hinge×1
- 685000172555Not stockedEnclosure×1
- 765000172564Not stockedSpacer×1
- 1035000174008Not stockedHandle×1
- 1045000172595Not stockedHandle×2
- 2385000166649Not stockedRing terminal×1
- 2395000166650Not stockedTerminal×1
- BATTERY-12V SEALED - 5000165552×1
- BATTERY-12V SEALED - 5000165552×1
- 2445000166686Not stockedBoot, insulated wire, black×1
- 2455000166687Not stockedBoot, insulated wire, red×1
- 2935000180004Not stockedTerminal×1
- Eyelet-Crimp, 1/0 Ga, CU, 3/8 Hole - 5200000290×1
- 3035000168169Not stockedBattery box×1
- 3035000167793Not stockedScrew×2
- 3375000168813Not stockedGenset×1
- 3555000170137Not stockedLatch×2
- 3845000168354Not stockedTrim×6
- 5015000167690Not stockedNut×14
- 5145000167729Not stockedFlat washer×24
- 5185000167733Not stockedLock washer×14
- 5325000167788Not stockedFlat washer×4
- 5355000167810Not stockedFlat washer×6
- 5365000174013Not stockedPan head screw×6
- 5385000167816Not stockedWasher-lock×4
- 5395000167819Not stockedScrew×4
- 5415000167830Not stockedScrew×3
- 5475000167846Not stockedNut×6
- 5485000167857Not stockedScrew×7
- 5505000167866Not stockedNut×4
- 5535000167888Not stockedLock washer×6
