E5000 Ground Heater, 12kw Gen, Diesel

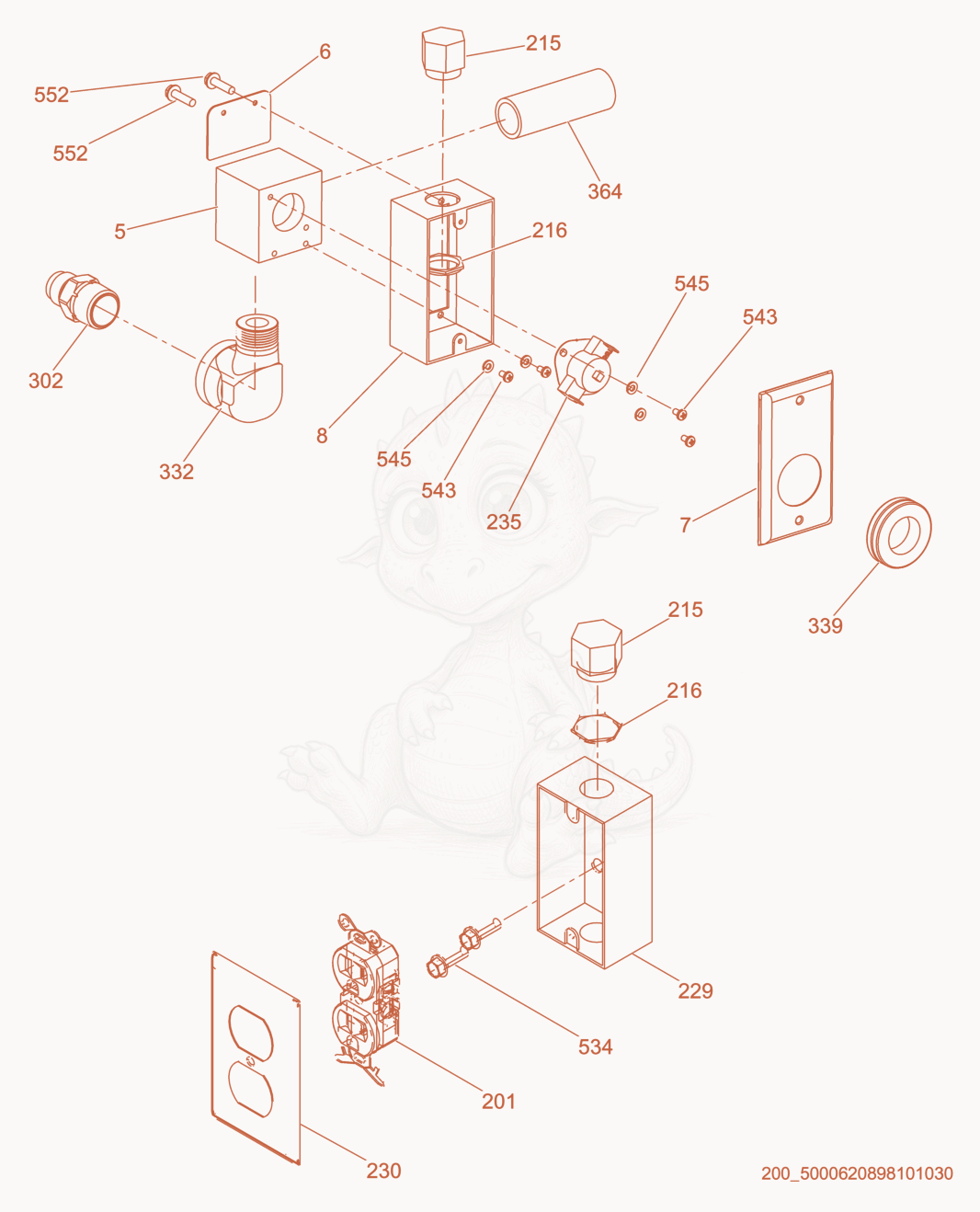

E5000 Outlet Box Diagram

Exploded parts diagram of the Outlet Box of a Wacker Neuson E5000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55000166926Not stocked
    Snap disc block×1
  • 65000166927Not stocked
    Cover plate×1
  • 75000166930Not stocked
    Cover plate×1
  • 85000166931Not stocked
    Enclosure×1
  • 2015000166425Not stocked
    Receptacle (socket)×1
  • 2155000166458Not stocked
    Cord grip×2
  • 2165000166459Not stocked
    Lock nut×2
  • 2295000166546Not stocked
    Outlet box×1
  • 2305000166547Not stocked
    Cover plate×1
  • 2355000166613Not stocked
    Limit control×1
  • 3025000168284Not stocked
    Hose barb×1
  • 3325000168029Not stocked
    Elbow×1
  • 3395000168477Not stocked
    Grommet×1
  • 3645000168700Not stocked
    Nipple fitting×1
  • 5345000167793Not stocked
    Screw×2
  • 5435000167835Not stocked
    Screw×2
  • 5435000167835Not stocked
    Screw×2
  • 5455000167836Not stocked
    Screw×2
  • 5455000167838Not stocked
    Washer×2
  • 5525000167883Not stocked
    Screw×2
