FU4/200SW CONVERTER-EXT VIB

FU4/200SW Converter cpl. Diagram

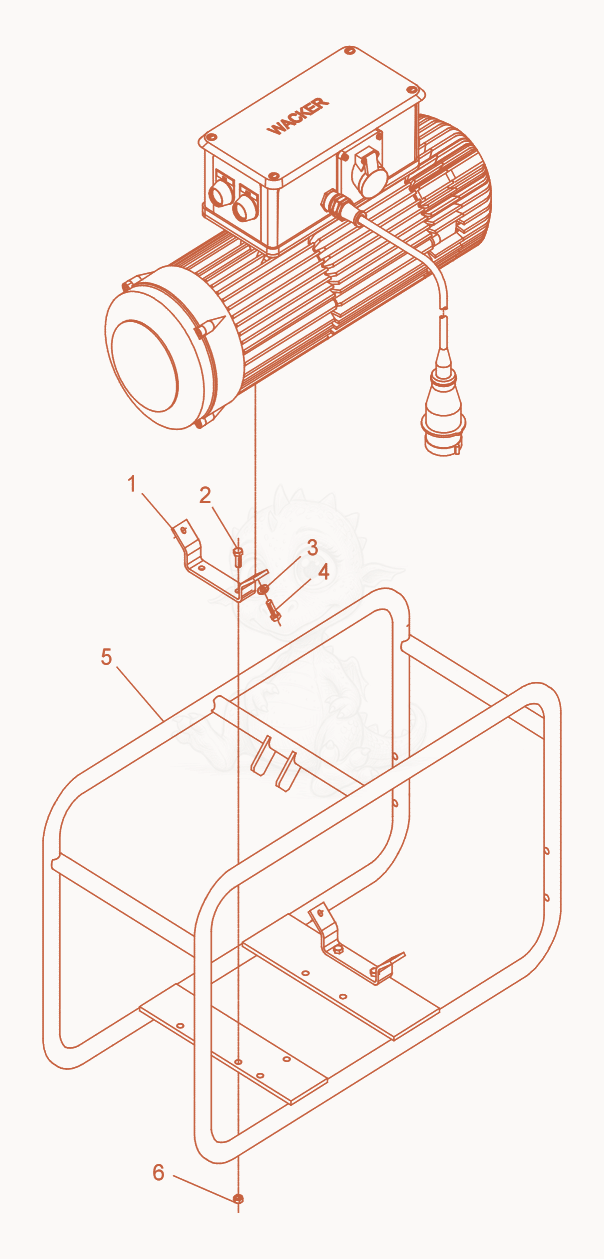

Exploded parts diagram of the Converter cpl. of a Wacker Neuson FU4/200SW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000020430Not stocked
    Shackle×2
  • 25000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×4
  • 35000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 45000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×4
  • 55000065368Not stocked
    Carrying frame×1
  • 65000010882
    $0.05
    NUT M8 8,HEX - 5000010882×4
