FU4/200SW CONVERTER-EXT VIB

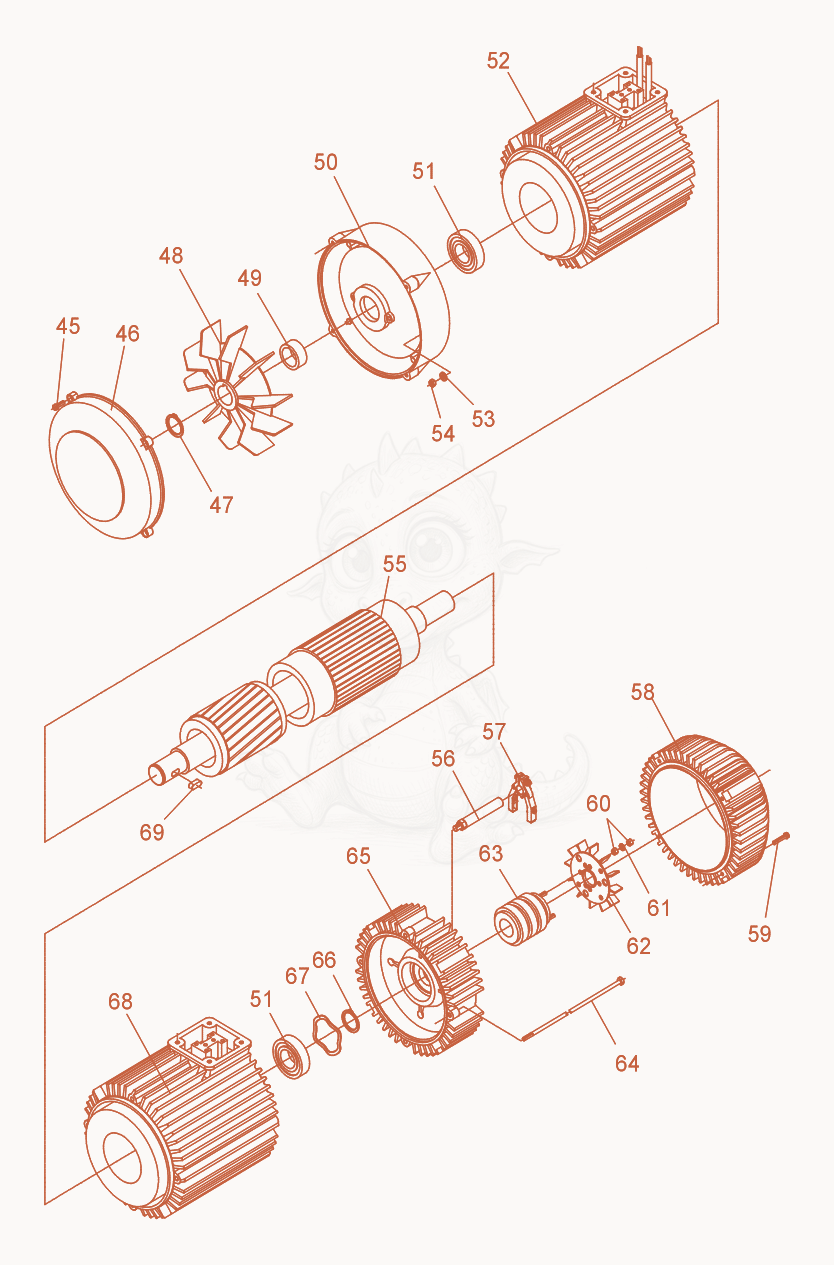

FU4/200SW Converter cpl. Diagram

Exploded parts diagram of the Converter cpl. of a Wacker Neuson FU4/200SW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5008326040Not stocked
    Carbon brush×12
  • 455000011713
    $1.01
    SCREW M5 X 16 CHEESE HD. - 5000011713×4
  • 465000017885Not stocked
    Fan cowl×1
  • 475002001815
    $0.46
    RET.RING-EXT 30MMX1.5MM, - 5002001815×1
  • 485000020399Not stocked
    Fan×1
  • 495000020402Not stocked
    Spacer×1
  • 505000017884Not stocked
    Bearing bracket×1
  • 515000017545
    $25.78
    BEARING-RADIAL BALL,6206 - 5000017545×2
  • 525000097857Not stocked
    Motor housing×1
  • 535000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×4
  • 545000010880
    $0.03
    NUT M6 8,HEX - 5000010880×4
  • 555000020396Not stocked
    Rotor cpl.×1
  • 565001802012Not stocked
    Brush holder pin×2
  • 575008326030Not stocked
    Brush holder×6
  • 585000020404Not stocked
    Slip ring cover×1
  • 595000011711
    $0.13
    SCREW M5 X 25 CHEESE HD. - 5000011711×4
  • 605000012997
    $0.26
    NUT-LOCK,M5 - 5000012997×6
  • 615000012643
    $0.22
    WASHER B5.3 MS,FLAT - 5000012643×3
  • 625000020409
    $57.92
    FAN - 5000020409×1
  • 635000020407Not stocked
    Slip ring×1
  • 645000020401Not stocked
    Fastening bolt×4
  • 655000017890Not stocked
    Bearing bracket×1
  • 665000039728Not stocked
    Retaining ring×1
  • 675000020403Not stocked
    Shim×1
  • 685000097858Not stocked
    Stator stack×1
  • 695000020400Not stocked
    Fitting key×1
